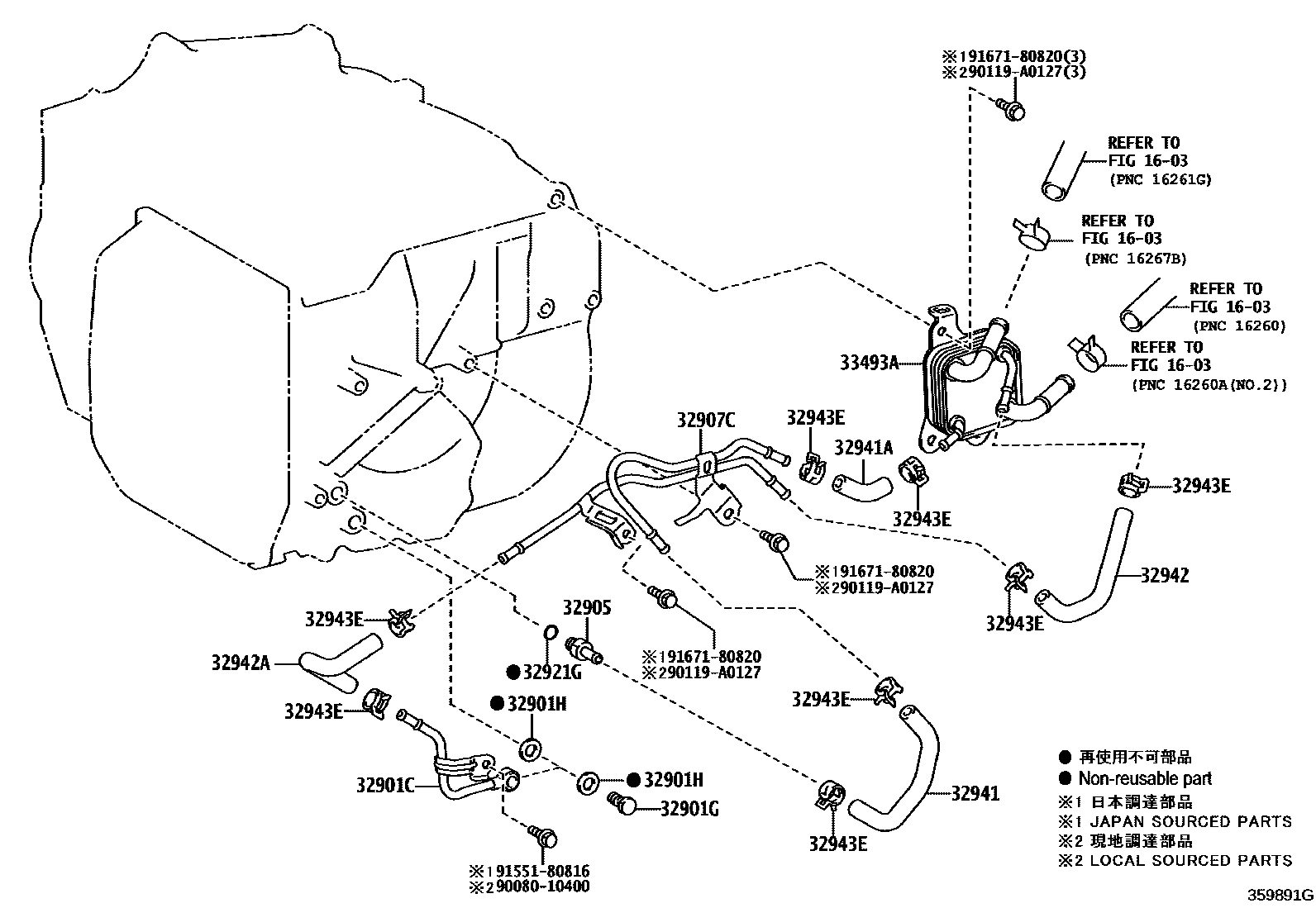

OIL COOLER & TUBE (ATM)

0001 1UB80E 0002 1UB80E,UB80F 0003 1UA80E 0004 1UA80E

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32901CUNION SUB-ASSY, OIL COOLER

main32901-48020iGSV70201706-202004

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iGSV70202006-202010

32901HGASKET(FOR OIL COOLER UNION)

main90430-14016×2iGSV70201706-202004

main90430-A0007×2iGSV70202012-202210

(L)

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main90404-14030iGSV70201706-202004

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-06030iGSV70201706-201906

main32907-06060iAXVA70201706-201907

main32907-0E030iGSV70201907-202010

main32907-0R030iAXVA70201907-202010

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iAXVA70201706-202010

32941HOSE, OIL COOLER INLET, NO.1

main32941-06160iAXVA70; GSV70201706-201906

main32941-0R070iAXVA70,GSV70201907-202010

32941AHOSE, OIL COOLER INLET, NO.2

main32941-06170iAXVA70,GSV70201706-202010

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-06150iAXVA7#,GSV70202010

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-06160iAXVA75202003-202010

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iAXVA7#,GSV70202010

(J)

main90466-A0014×4iAXVA70,GSV70201706-202010

(L)

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-06020iAXVA70,GSV70201706-201906

main33493-06021iAXVA70,GSV70201907-202010

9008010400

main90080-10400

90119A0127

main90119-A0127

9155180816

main91551-80816

9167180820

main91671-80820

17 parts on this diagram · 4 diagrams in section
