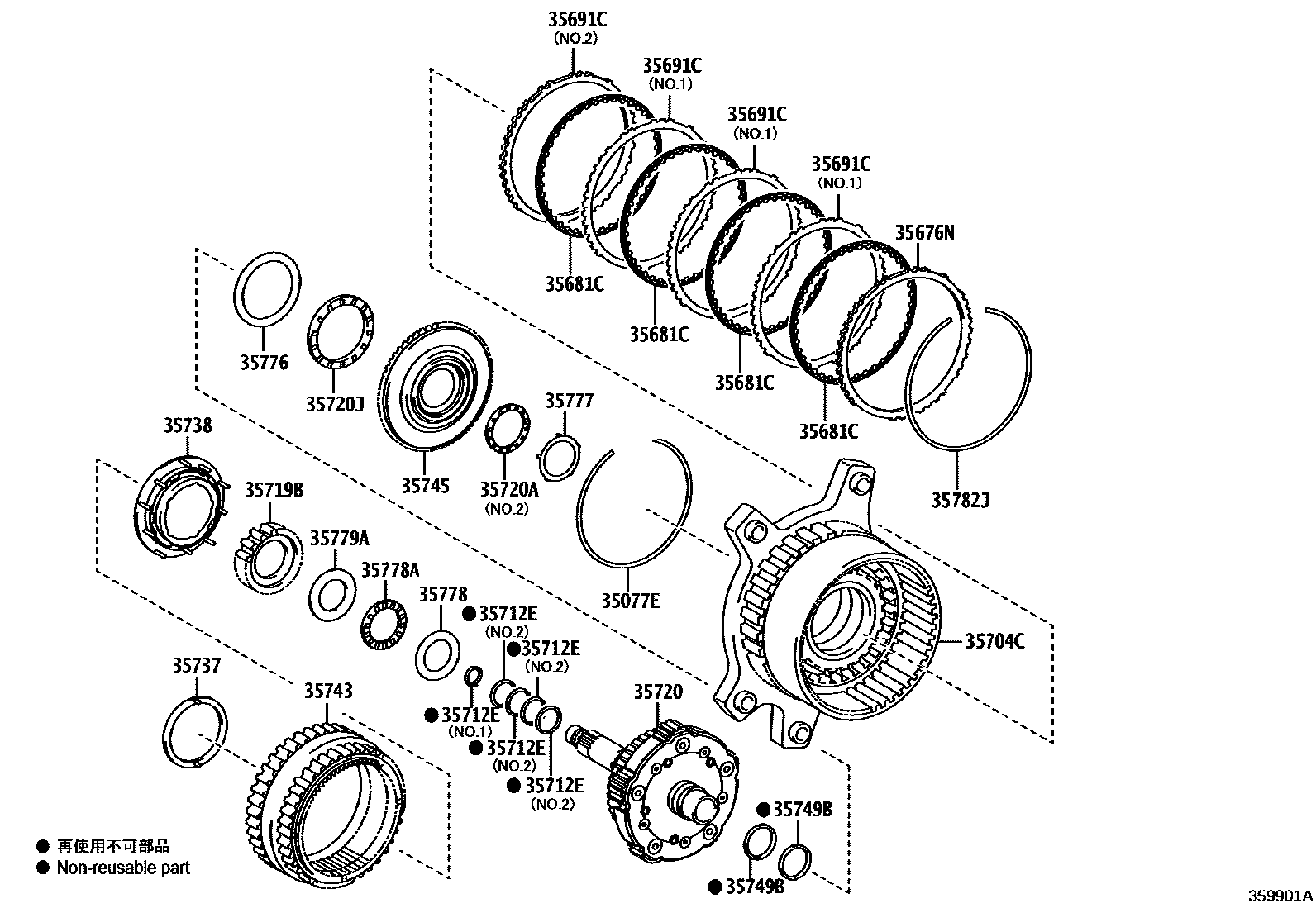

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
(J)
(L)
35676NFLANGE, BRAKE, NO.1
T=4.0,MARK 0,TYPE C:REFER 35-01
T=4.0,MARK 0,TYPE B:REFER 35-01
T=4.1,MARK 1,TYPE C:REFER 35-01
T=4.1,MARK 1,TYPE B:REFER 35-01
T=4.2,MARK 2,TYPE C:REFER 35-01
T=4.2,MARK 2,TYPE B:REFER 35-01
T=4.3,MARK 3,TYPE B:REFER 35-01
T=4.3,MARK 3,TYPE C:REFER 35-01
T=4.4,MARK 4,TYPE C:REFER 35-01
T=4.4,MARK 4,TYPE B:REFER 35-01
T=4.5,MARK 5,TYPE C:REFER 35-01
T=4.5,MARK 5,TYPE B:REFER 35-01
T=4.6,MARK 6,TYPE C:REFER 35-01
T=4.6,MARK 6,TYPE B:REFER 35-01
T=3.5,MARK 0,TYPE C:REFER 35-01
T=3.6,MARK 1,TYPE C:REFER 35-01
T=3.7,MARK 2,TYPE C:REFER 35-01
T=3.8,MARK 3,TYPE C:REFER 35-01
T=3.9,MARK 4,TYPE C:REFER 35-01
T=4.0,MARK 5,TYPE C:REFER 35-01
T=4.1,MARK 6,TYPE C:REFER 35-01
T=4.0,MARK 0,TYPE A:REFER 35-01
T=4.1,MARK 1,TYPE A:REFER 35-01
T=4.2,MARK 2,TYPE A:REFER 35-01
T=4.3,MARK 3,TYPE A:REFER 35-01
T=4.4,MARK 4,TYPE A:REFER 35-01
T=4.5,MARK 5,TYPE A:REFER 35-01
T=4.6,MARK 6,TYPE A:REFER 35-01
T=3.5,MARK 0
T=3.5,MARK 0,TYPE A:REFER 35-01
T=3.6,MARK 1
T=3.6,MARK 1,TYPE A:REFER 35-01
T=3.7,MARK 2
T=3.7,MARK 2,TYPE A:REFER 35-01
T=3.8,MARK 3
T=3.8,MARK 3,TYPE A:REFER 35-01
T=3.9,MARK 4,TYPE A:REFER 35-01
T=3.9,MARK 4
T=4.0,MARK 5,TYPE A:REFER 35-01
T=4.0,MARK 5
T=4.1,MARK 6,TYPE A:REFER 35-01
T=4.1,MARK 6
35691CPLATE, BRAKE, NO.1
T/P C:SEE 35-01,NO.1
T/P B:SEE 35-01,NO.1
T/P B:SEE 35-01,NO.2
T/P C:SEE 35-01,NO.2
(L),NO.1
(L),NO.2
T/P D:SEE 35-01,NO.1
T/P A:SEE 35-01,NO.1
T/P D:SEE 33-01,NO.2
T/P A:SEE 35-01,NO.2
T/P D:SEE 35-01,NO.2
NO.1
(J),NO.1
NO.2
(J),NO.2
35704CGEAR SUB-ASSY, COUNTER DRIVE
TYPE C:REFER 35-01
TYPE C:REFER 35-01
TYPE B:REFER 35-01
TYPE A:REFER 35-01
sub35704-33041
sub35704-33051
sub35704-33060
TYPE A:REFER 35-01
TYPE A:REFER 35-01
35712ERING, INPUT SHAFT OIL SEAL
T/P A:SEE 35-01,NO.1
NO.1
NO.2
T/P C:SEE 35-01,NO.1
T/P C:SEE 35-01,NO.1,T/P D:SEE 35-01,NO.1
NO.1
NO.2
35719BGEAR, PLANETARY SUN
(L)
(J)
(J)
35720GEAR ASSY, FRONT PLANETARY
TYPE C:REFER 35-01
TYPE B:REFER 35-01
TYPE D:REFER 35-01
TYPE A:REFER 35-01
TYPE B:REFER 35-01
sub35720-48080
TYPE A:REFER 35-01
TYPE A:REFER 35-01
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
T/P A:SEE 35-01,NO.1,T/P D:SEE 35-01,NO.1
T/P D:SEE 35-01,NO.1
T/P A:SEE 35-01,NO.1
NO.1,(J)
NO.1
T/P C:SEE 35-01,NO.1
T/P A:SEE 35-01,NO.1
T/P A:SEE 35-01,NO.1
NO.2,(J)
NO.2
NO.2,(L)
T/P C:SEE 35-01,NO.1
NO.1,(L)
35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
(J)
(L)
35737WASHER, PLANETARY CARRIER THRUST
TYPE C:REFER 35-01,TYPE D:REFER 35-01
TYPE C:REFER 35-01
TYPE A:REFER 35-01
35738WASHER, PLANETARY CARRIER THRUST, NO.2
TYPE C:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
35743GEAR, FRONT PLANETARY RING
35745FLANGE, FRONT PLANETARY RING GEAR
TYPE C:REFER 35-01,TYPE D:REFER 35-01
sub35745-33041
TYPE A:REFER 35-01
TYPE C:REFER 35-01
TYPE A:REFER 35-01
35749BRING, INPUT SHAFT OIL SEAL, REAR
35776GEAR, PRIMARY REDUCTION DRIVEN
(L)
(J)
TYPE A:REFER 35-01
TYPE C:REFER 35-01
35777RACE, THRUST BEARING, NO.7
(L)
(J)
35778RACE, THRUST BEARING, NO.8
(L)
(J)
35778ABEARING, THRUST NEEDLE ROLLER
(J)
(L)
35779ARACE, THRUST BEARING, NO.9
(L)
(J)
35782JRING, SNAP
(J)
(L)
(L)
(J)
21 parts on this diagram · 5 diagrams in section
