32000CONVERTER ASSY, TORQUE

main32000-06060i202010

T/P B:REF35-01,T/P A; T/P B:REF35-01,T/P B; TYPE C:REFER 35-01

main32000-06070i202010

TYPE B:REFER ILLUST.

main32000-33170i202010

TYPE D:REFER 35-01

main32000-33180i202010

T/P A:REF35-01,T/P A

main32000-48060i201706-202004

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06070i202003-202010

(L)

main32101-0E010i201706-202010

(L)

main32101-33020i202104

main32101-48010i201706-202010

(J)

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001i202003-202010

*9-1.25PX12.4-7.3,BLACK

main90119-09025×5i201706-202010

*9-1.25PX12.4-8.4,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8i202010

*10-1.25PX18-13

main90105-12404×8i202003-202010

*12-1.25PX20.3-14.3

32117SPACER, DRIVE PLATE, REAR

main32117-02030i202010

(L)

main32117-32020i201706-202010

main32117-33010i202104

33405BSHAFT SUB-ASSY, OIL PUMP DRIVE

main33405-06010i201706-202010

(L)

main33405-48010i202010

(J)

35145EGASKET, TRANSAXLE CASE

main35145-07010i202012-202102

T/P C:SEE 35-01,NO.1

main35145-33010i202010-202102

T/P A:SEE 35-01,NO.1; T/P B:SEE 35-01,NO.1; T/P D:SEE 35-01,NO.1

main35145-33020i202103

T/P A:SEE 35-01,NO.1; T/P B:SEE 35-01,NO.1; T/P C:SEE 35-01,NO.1,T/P D:SEE 35-01,NO.1

main35145-33040×4i202103

T/P A:SEE 35-01,NO.2; T/P B:SEE 35-01,NO.2; T/P C:SEE 35-01,NO.2,T/P D:SEE 35-01,NO.2

main35145-48030×4i202010-202102

T/P A:SEE 35-01,NO.2; T/P B:SEE 35-01,NO.2; T/P C:SEE 35-01,NO.2,T/P D:SEE 35-01,NO.2

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-51013i201706-202004

35301GBEARING,NEEDLE ROLLER

main90364-51004i201706-202004

35308COVER SUB-ASSY, FRONT OIL PUMP

main35308-06010i202003-202010

TYPE B:REFER 35-01

main35308-48100i202010

TYPE D:REFER 35-01

main35308-48110i202003-202010

TYPE A:REFER 35-01

35311BODY, FRONT OIL PUMP

main35311-06030i202010

TYPE B:REFER 35-01; TYPE C:REFER 35-01

main35311-48030i201706-202004

main35311-48040i202010

TYPE A:REFER 35-01

35311APIN, RING

main90253-09004×2i202010

TYPE A:REFER 35-01

main90253-09005×2i202012-202210

TYPE C:REFER 35-01

35313GASKET, FRONT OIL PUMP COVER

main35313-48020i202003-202010

NO.1

main35313-48030i202003-202010

NO.2

35321GEAR, FRONT OIL PUMP DRIVE

main35321-06160i202003-202010

T=16.66,(L)

main35321-48110i202006-202010

T=16.66

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-06160i202012-202210

T=16.66,(L)

main35322-48110i202010

T=16.66,(J)

35324CSPROCKET, TRANSMISSION OIL PUMP DRIVE

main35324-06010i201706-202010

TYPE C:REFER 35-01

main35324-48030i201706-202004

main35324-48040i202003-202010

TYPE A:REFER 35-01

35330FSTRAINER ASSY, OIL

main35330-06020i202010

(L)

main35330-48040i202003-202010

(J)

35354WASHER, OIL PUMP SPROCKET THRUST, FRONT

main35354-48010i202010

35355WASHER, OIL PUMP SPROCKET THRUST, REAR

main35355-48010i201706-202004

main35355-48011i202012

35370SHAFT ASSY, STATOR

main35370-06030i201706-202010

TYPE C:REFER 35-01

main35370-06040i202012-202210

TYPE C:REFER 35-01

main35370-33050i202010-202202

TYPE D:REFER 35-01

main35370-33051i202202

TYPE D:REFER 35-01

main35370-33070i202010

TYPE A:REFER 35-01

main35370-48030i201706-202004

main35370-48040i202006-202010

35617RING, CLUTCH DRUM OIL SEAL

main35617-48050i201706-202010

35617FRING, CLUTCH DRUM OIL SEAL

main35617-33020×4i201706-202010

main35617-48060×4i201706-202004

35781CCHAIN, TRANSMISSION DRIVE

main35781-06010i201706-202010

(L)

main35781-06020i202402

(L)

main35781-48020i201706-202004

9008010246

main90080-10246

9010506028

main90105-06028

9010506202

main90105-06202

90105A0128

main90105-A0128

90105A0198

main90105-A0198

9014960067

main90149-60067

90159A0065

main90159-A0065

9025311008

main90253-11008

9155110840

main91551-10840

9155180830

main91551-80830

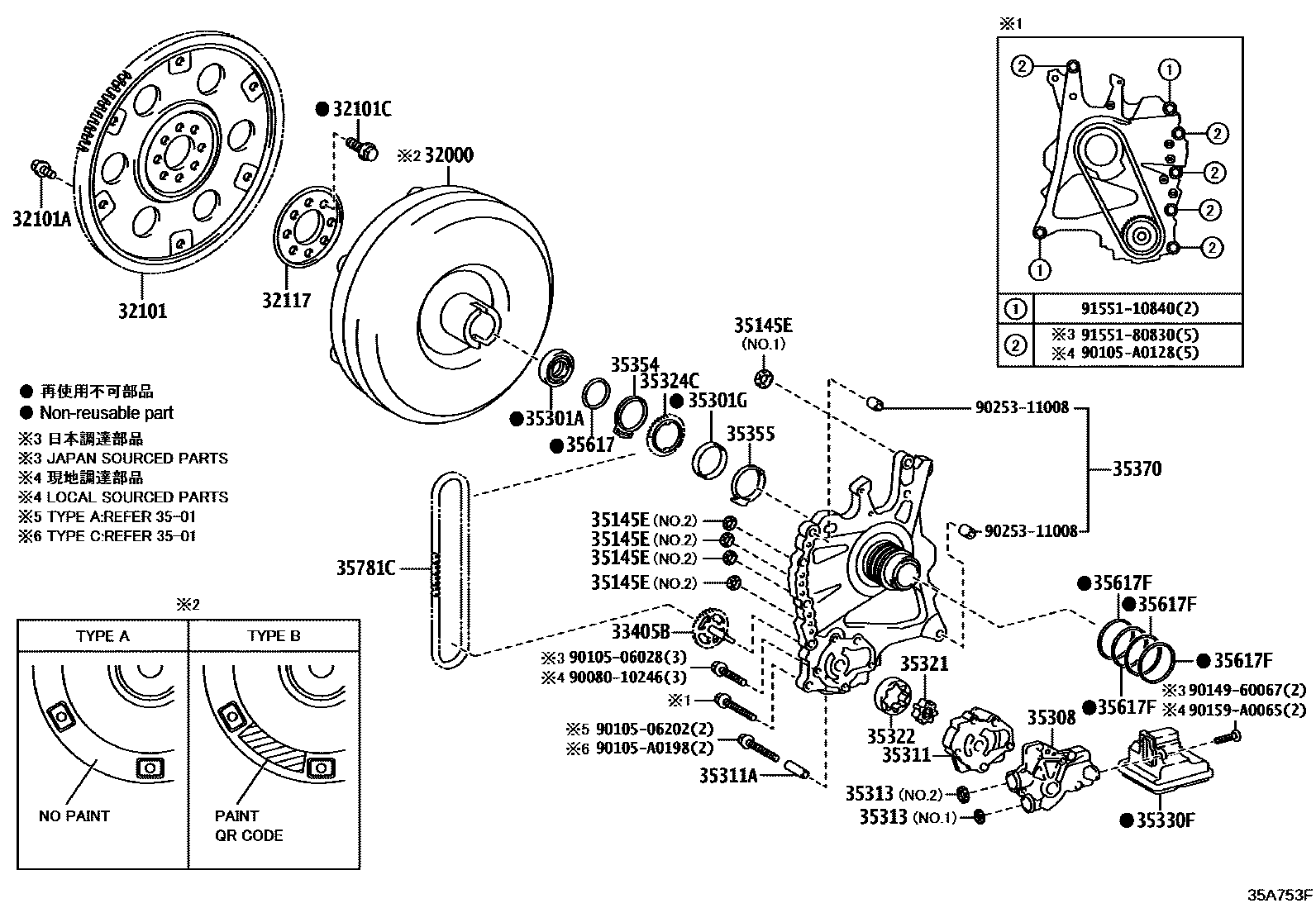

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
