EXHAUST GAS RECIRCULATION SYSTEM

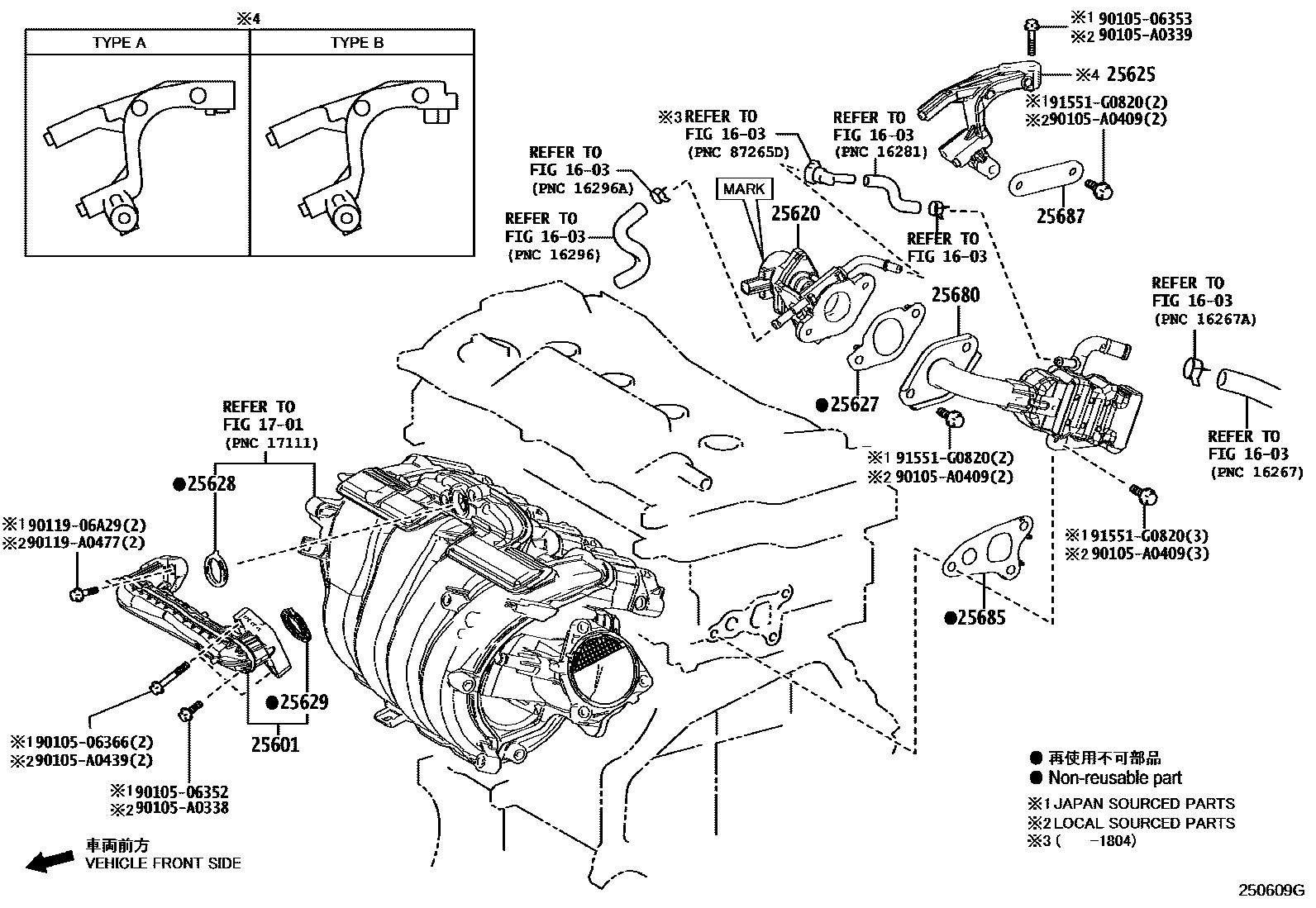

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25010i201706-201710

*132

main25601-25011i201711-202010

*132

main25601-25030i202010

*132

main25601-F0010i202003-202010

main25601-F0020i202010

*495

25620VALVE ASSY, EGR

main25620-24050i202010

*132

main25620-25020i201706-201804

*132,MARK25620 25020; *495,MARK25620 25020

main25620-25040i201901-202010

(J),*495

main25620-F0020i202003-202010

main25620-F2010i202010

*495

25625BRACKET, EGR VALVE

main25625-25010i201706-202007

*132T/P A:REF.ILLUST

main25625-25030i202008-202010

(J),*495T/P B:REF.; (J),TYPE B:REF ILL.

main25625-F0010i202003-202004

TYPE A:REFER ILLUST.

main25625-F0020i202004-202010

(L),*495T/P B:REF.; (L),TYPE B:REF ILL.; *495T/P B:REF.ILLUST

25627GASKET, EGR VALVE

main25627-24010i202010

*132

main25627-25010i201706-202010

*132

main25627-F0010i201706-202010

*495

main25627-F2010i202010

*495

25628GASKET, EGR INLET

main25628-25010i202010

*132; *495

25629GASKET, EGR VALVE ADAPTER

main25629-25010i201706-202010

*132; *495

25680COOLER ASSY, EGR

main25680-25010i201706-202010

*132

main25680-25060i202010

*132

main25680-F0010i201706-202010

*495

main25680-F0020i201706-202010

*495

main25680-F0030i202010

*495

25685GASKET, EGR COOLER, NO.1

main25685-25010i201706-201709

*132; *495

main25685-25011i201710-202010

*132; *495

25687BRACKET, EGR COOLER, NO.1

main25687-25010i201706-202010

*132,*495

9010506352

main90105-06352

9010506353

main90105-06353

9010506366

main90105-06366

90105A0338

main90105-A0338

90105A0339

main90105-A0339

90105A0409

main90105-A0409

90105A0439

main90105-A0439

9011906A29

main90119-06A29

90119A0477

main90119-A0477

91551G0820

main91551-G0820

21 parts on this diagram · 3 diagrams in section
