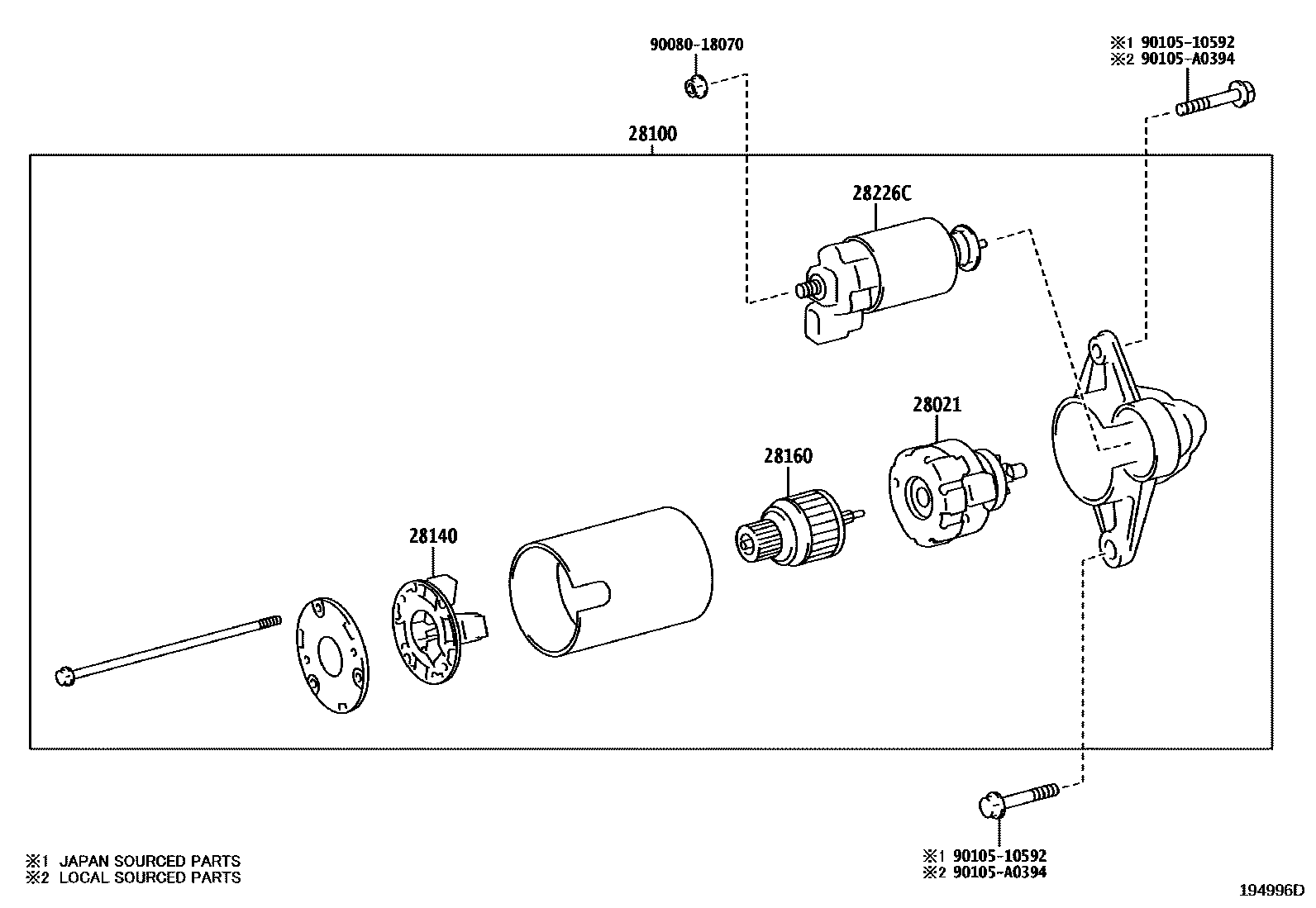

STARTER

0001 112V 1.2KW,1.3KW 0002 112V 1.8KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-25050iA25AFKS..AXVA70201706-201909

main28021-K0040iA25AFKS..AXVA75202003-202010

28100STARTER ASSY

main28100-0P130i2GRFKS..GSV70201706-202010

12V 1.8KW

main28100-F0010iA25AFKS..AXVA70201706-201909

12V 1.3KW

main28100-F0060iA25AFKS..AXVA70201909-202010

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iA25AFKS..AXVA7#202010

main28140-25050iA25AFKS..AXVA70201706-201909

main28140-31240i2GRFKS..GSV70201706-202010

28160ARMATURE ASSY, STARTER

main28160-21080iA25AFKS..AXVA70201706-202010

main28160-31240i2GRFKS..GSV70201807-201910

(J)

main28160-36190i2GRFKS..GSV70202010

main28160-36210i2GRFKS..GSV70201910-202010

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-25050iA25AFKS..AXVA70201706-201909

main28226-31240i2GRFKS..GSV70202010

main28226-K0040iA25AFKS..AXVA75202003-202010

9008018070

main90080-18070

9010510592

main90105-10592

90105A0394

main90105-A0394

8 parts on this diagram · 2 diagrams in section
