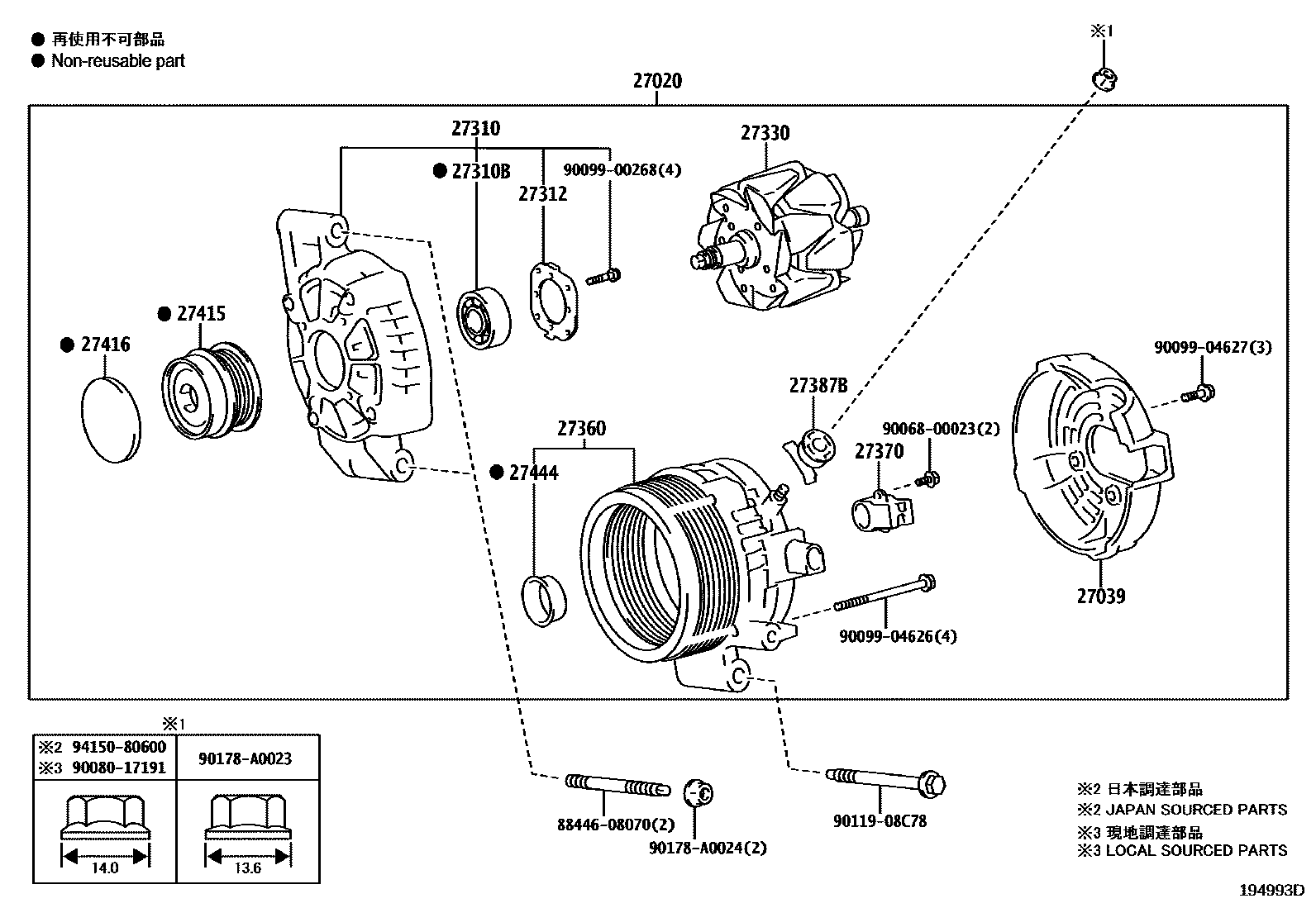

ALTERNATOR

0001 112V 100A 0002 112V 100A

27020ALTERNATOR ASSY

main27060-0P410i2GRFKS..GSV70201706-202010

12V 100A

main27060-F0010iA25AFKS..AXVA70201706-202010

12V 100A

27039COVER, ALTERNATOR REAR END

main27039-0C170iA25AFKS..AXVA75202003-202010

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P460i2GRFKS..GSV70201706-202010

main27310-F0010iA25AFKS..AXVA70201706-202010

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033iA25AFKS,2GRFKS..AXVA70,GSV70201706-202010

27312PLATE, RETAINER

main27312-72100iA25AFKS,2GRFKS..AXVA70,GSV70201706-202010

27330ROTOR ASSY, ALTERNATOR

main27330-0C170iA25AFKS,2GRFKS..AXVA70,GSV70201706-202010

27360COIL ASSY, ALTERNATOR

main27360-0P350i2GRFKS..GSV70202005-202010

main27360-0P460i2GRFKS..GSV70201706-202005

main27360-F0010iA25AFKS..AXVA70201706-202010

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0V160iA25AFKS,2GRFKS..AXVA70,GSV70201706-202010

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130iA25AFKS,2GRFKS..AXVA7#,GSV70202010

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P020i2GRFKS..GSV70201706-202010

main27415-F0010iA25AFKS..AXVA70201706-202010

27416CAP, ALTERNATOR PULLEY

main27416-0W050iA25AFKS,2GRFKS..AXVA70,GSV70201706-202010

27444PACKING, ALTERNATOR BEARING COVER

main27444-0C170iA25AFKS,2GRFKS..AXVA70,GSV70201706-202010

8844608070BOLT, IDLE PULLEY

main88446-08070

9006800023

main90068-00023

9008017191

main90080-17191

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9011908C78

main90119-08C78

90178A0023

main90178-A0023

90178A0024

main90178-A0024

9415080600

main94150-80600

22 parts on this diagram · 2 diagrams in section
