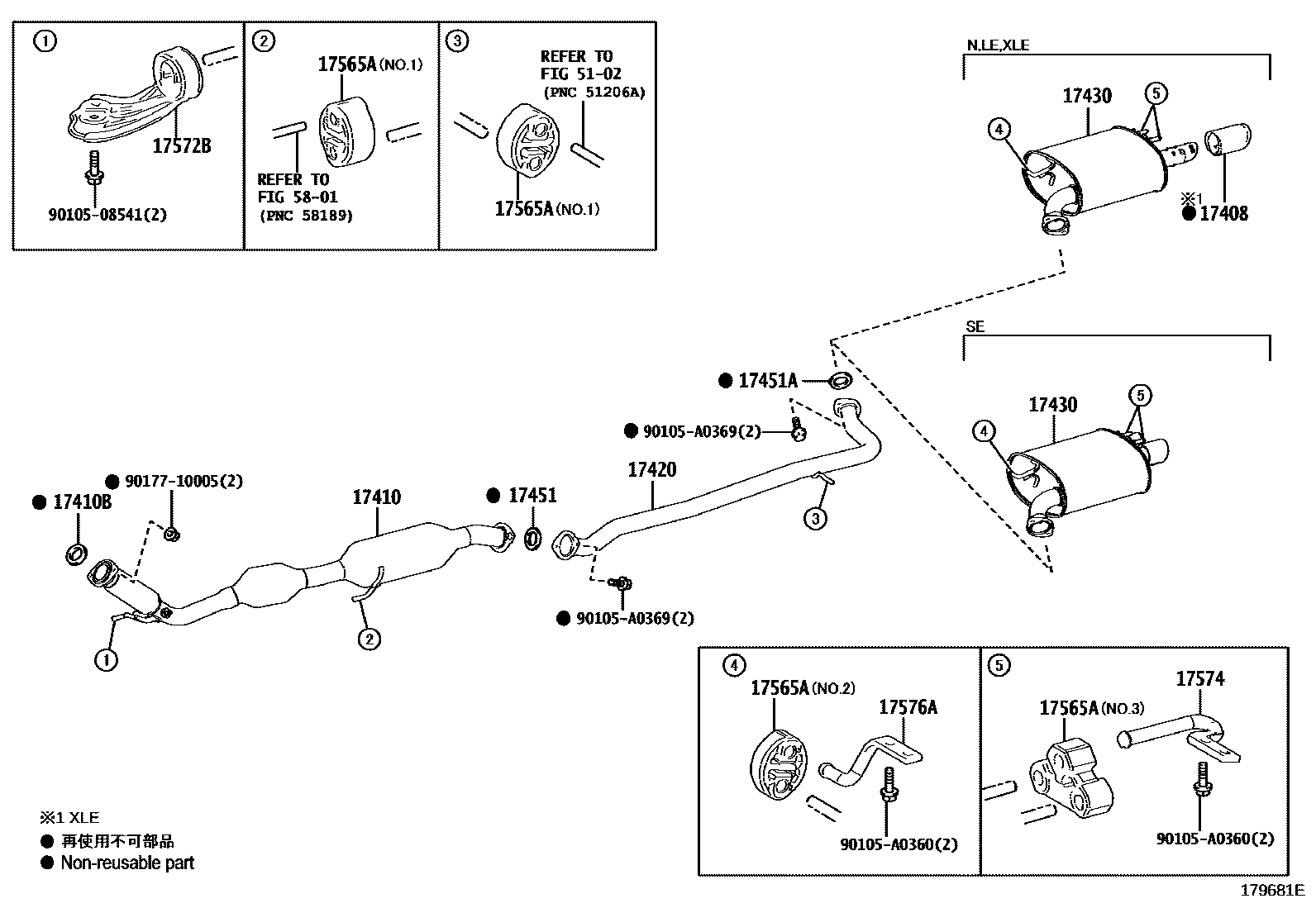

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
TRD PACKAGE
17430PIPE ASSY, EXHAUST, TAIL
TRD PACKAGE
TRD PACKAGE
TRD PACKAGE
17451GASKET, EXHAUST PIPE
(L)
(J)
17451AGASKET, EXHAUST PIPE, NO.2
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.1
main17565-0P051i2GRFKS..GSV70;A25AFKS..AXVA7#..XSE; A25AFXS..AXVH70;A25#..AXVA7#,AXVH71..LE,SE,XLE202010
NO.2
NO.3
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
5102SUSPENSION CROSSMEMBER & UNDER COVER
5801FLOOR PAN & LOWER BACK PANEL
9010508541
main90105-08541
90105A0360
main90105-A0360
90105A0369
main90105-A0369
9017710005
main90177-10005
18 parts on this diagram · 6 diagrams in section
