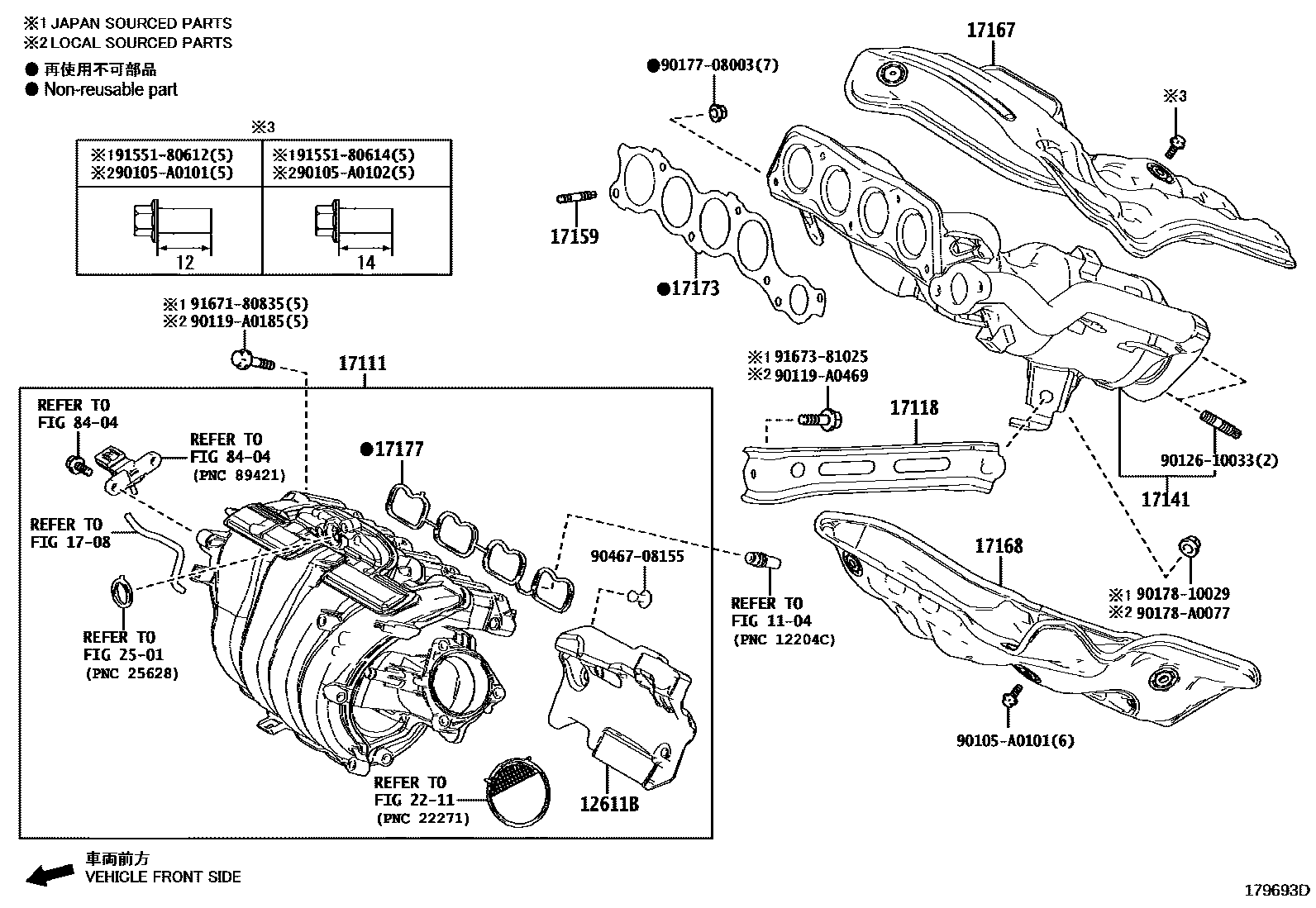

MANIFOLD
1104
12611BCOVER, ENGINE, NO.1
(J),*495,*132
(J)
*132
(J),*495
(L),*495
(L)
*495
1708
17111MANIFOLD, INTAKE
(J),*495
(J),*495,*132
(J)
*132
*495
(L),*495
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
*132
*495
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(J)
(J)
(L)
(L)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(J)
(L)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(J)
(L)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
*132
*495
2211
2501
8404
90105A0101
main90105-A0101
90105A0102
main90105-A0102
90119A0185
main90119-A0185
90119A0469
main90119-A0469
9012610033
main90126-10033
9017708003
main90177-08003
9017810029
main90178-10029
90178A0077
main90178-A0077
9046708155
main90467-08155
9155180612
main91551-80612
9155180614
main91551-80614
9167180835
main91671-80835
9167381025
main91673-81025
27 parts on this diagram · 5 diagrams in section
