11711BEARING, CRANKSHAFT

main11071-0P060-A1×2i201706-202010

MARK UPPER 1 LOWER 1,NO.2,(L):REFER R/M

main11071-0P060-A2×2i202010

MARK UPPER 1 LOWER 2,NO.2,(L):REFER R/M

main11071-0P060-B2×2i202010

MARK UPPER 2 LOWER 2,NO.2,(L):REFER R/M

main11071-0P060-B3×2i202010

MARK UPPER 2 LOWER 3,NO.2,(L):REFER R/M

main11071-0P060-C3×2i201706-202010

MARK UPPER 3 LOWER 3,NO.2,(L):REFER R/M

main11071-0P060-C4×2i202010

MARK UPPER 3 LOWER 4,NO.2,(L):REFER R/M

main11071-0P060-D4×2i201706-202010

MARK UPPER 4 LOWER 4,NO.2,(L):REFER R/M

main11071-0P060-D5×2i201706-202010

MARK UPPER 4 LOWER 5,NO.2,(L):REFER R/M

main11071-0P060-E5×2i202010

MARK UPPER 5 LOWER 5,NO.2,(L):REFER R/M

main11071-31060-A1×2i202308

MARK UPPER 1 LOWER 1,NO.2,REFER R/M

main11071-31060-A2×2i201706-202010

MARK UPPER 1 LOWER 2,NO.2,(J):REFER R/M

main11071-31060-B2×2i201706-202010

MARK UPPER 2 LOWER 2,NO.2,(J):REFER R/M

main11071-31060-B3×2i202308

MARK UPPER 2 LOWER 3,NO.2,REFER R/M

main11071-31060-C3×2i201706-202010

MARK UPPER 3 LOWER 3,NO.2,(J):REFER R/M

main11071-31060-C4×2i202308

MARK UPPER 3 LOWER 4,NO.2,REFER R/M

main11071-31060-D4×2i202308

MARK UPPER 4 LOWER 4,NO.2,REFER R/M

main11071-31060-D5×2i202010

MARK UPPER 4 LOWER 5,NO.2,(J):REFER R/M

main11071-31060-E5×2i201706-202010

MARK UPPER 5 LOWER 5,NO.2,(J):REFER R/M

main11701-0P060-A1×2i202010

MARK UPPER 1 LOWER 1,NO.1,(L):REFER R/M

main11701-0P060-A2×2i201706-202010

MARK UPPER 1 LOWER 2,NO.1,(L):REFER R/M

main11701-0P060-B2×2i202010

MARK UPPER 2 LOWER 2,NO.1,(L):REFER R/M

main11701-0P060-B3×2i201706-202010

MARK UPPER 2 LOWER 3,NO.1,(L):REFER R/M

main11701-0P060-C3×2i202010

MARK UPPER 3 LOWER 3,NO.1,(L):REFER R/M

main11701-0P060-C4×2i201706-202010

MARK UPPER 3 LOWER 4,NO.1,(L):REFER R/M

main11701-0P060-D4×2i201706-202010

MARK UPPER 4 LOWER 4,NO.1,(L):REFER R/M

main11701-0P060-D5×2i201706-202010

MARK UPPER 4 LOWER 5,NO.1,(L):REFER R/M

main11701-0P060-E5×2i202010

MARK UPPER 5 LOWER 5,NO.1,(L):REFER R/M

main11701-25010-01×3i201906-202010

MARK 1,*132,NO.1,REFER R/M

main11701-25010-02×5i202111

MARK 2,*132,NO.1&2,REF. R/M

main11701-25010-03×5i201706-201906

MARK 3,*132,NO.1 OR 2,*RRM

main11701-25010-04×3i202010-202111

MARK 4,*132,NO.1,REFER R/M

main11701-25010-05×5i201706-201906

MARK 5,*132,NO.1 OR 2,*RRM

main11701-25020-01×2i202010-202111

MARK 1,*132,NO.2,REFER R/M

main11701-25020-02×2i201906-202010

MARK 2,*132,NO.2,REFER R/M

main11701-25020-03×2i202010-202111

MARK 3,*132,NO.2,REFER R/M

main11701-25020-04×2i202010-202111

MARK 4,*132,NO.2,REFER R/M

main11701-25020-05×2i202010-202111

MARK 5,*132,NO.2,REFER R/M

main11701-31100-A1×2i201706-202010

MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M

main11701-31100-A2×2i202308

MARK UPPER 1 LOWER 2,NO.1,REFER R/M

main11701-31100-B2×2i202308

MARK UPPER 2 LOWER 2,NO.1,REFER R/M

main11701-31100-B3×2i201706-202010

MARK UPPER 2 LOWER 3,NO.1,(J):REFER R/M

main11701-31100-C3×2i201706-202010

MARK UPPER 3 LOWER 3,NO.1,(J):REFER R/M

main11701-31100-C4×2i202010

MARK UPPER 3 LOWER 4,NO.1,(J):REFER R/M

main11701-31100-D4×2i201706-202010

MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M

main11701-31100-D5×2i202010

MARK UPPER 4 LOWER 5,NO.1,(J):REFER R/M

main11701-31100-E5×2i201706-202010

MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M

main11701-F0010-01×5i202204

MARK 1,*495,NO.1&2,REF. R/M

main11701-F0010-02×5i201706-202001

MARK 2,*495,NO.1 OR 2,*RRM

main11701-F0010-03×3i202003-202010

MARK 3,NO.1,REFER R/M

main11701-F0010-04×5i202204

MARK 4,*495,NO.1&2,REF. R/M

main11701-F0010-05×3i202003-202010

MARK 5,NO.1,REFER R/M

main11701-F0020-01×2i202001-202010

MARK 1,*495,NO.2,REFER R/M

main11701-F0020-02×2i202010-202204

MARK 2,*495,NO.2,REFER R/M

main11701-F0020-03×2i202001-202010

MARK 3,*495,NO.2,REFER R/M

main11701-F0020-04×2i202003-202010

MARK 4,NO.2,REFER R/M

main11701-F0020-05×2i202003-202010

MARK 5,NO.2,REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25030×2i202010-202102

STD,*132

main11791-25040×2i202103

STD,*132

main11791-F0010×2i202010-202112

STD,*495

main11791-F0040×2i202201

STD,*495

13011RING SET, PISTON

main13011-0P051i202010

STD

main13011-25050i201706-201809

STD,*495

main13011-25070i201706-201809

STD,*495

main13011-25080i201803-202010

STD,*132

main13011-F0040i201811-202010

STD,(L),*495

13041BEARING, CONNECTING ROD

main13041-0P090-01×6i202010

MARK 1,(L),REFER R/M

main13041-0P090-02×6i202010

MARK 2,(L),REFER R/M

main13041-0P090-03×6i201706-202010

MARK 3,(L),REFER R/M

main13041-0P090-04×6i202010

MARK 4,(L),REFER R/M

main13041-25020-01×4i201706-202010

MARK 1,*132:REFER R/M

main13041-25020-02×4i202010

MARK 2,*132:REFER R/M

main13041-25020-03×4i202010

MARK 3,*132:REFER R/M

main13041-31100-01×6i202010

MARK 1,(J),REFER R/M

main13041-31100-02×6i201706-202010

MARK 2,(J),REFER R/M

main13041-31100-03×6i201706-202010

MARK 3,(J),REFER R/M

main13041-31100-04×6i202308

MARK 4,REFER REPAIR MANUAL

main13041-F0010-01×4i202003-202010

MARK 1,REFER REPAIR MANUAL

main13041-F0010-02×4i202003-202010

MARK 2,REFER REPAIR MANUAL

main13041-F0010-03×4i202010

MARK 3,*495:REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-0P040×3i202010

STD,REFER REPAIR MANUAL

main13101-25030×4i202003-202010

STD

main13101-25040×4i201706-202010

STD,(J),*495

main13101-31171-A0×3i202308

STD,MARK A,REFER REPAIR MANUAL

main13101-31171-B0×3i202308

STD,MARK B,REFER REPAIR MANUAL

main13101-31171-C0×3i202308

STD,MARK C,REFER REPAIR MANUAL

main13101-F0020×4i201706-202010

STD,(L),*495

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-21024×8i201706-202010

*132; *495

main90520-A0004×6i201706-202010

RH BANK

13201ROD SUB-ASSY, CONNECTING

main13201-09B90×6i202010

REFER REPAIR MANUAL

main13201-29815-A0×4i202010

MARK A,*132:REFER R/M; MARK A,*495,(J):REFER R/M

main13201-29815-B0×4i202010

MARK B,*132:REFER R/M; MARK B,*495,(J):REFER R/M

main13201-29815-C0×4i202010

MARK C,*132:REFER R/M; MARK C,*495,(J):REFER R/M

main13201-39285-A0×6i202308

MARK A,REFER REPAIR MANUAL

main13201-39285-B0×6i202308

MARK B,REFER REPAIR MANUAL

main13201-39285-C0×6i202308

MARK C,REFER REPAIR MANUAL

main13201-F9000-A0×4i202010

MARK A,*495,(L):REFER R/M

main13201-F9000-B0×4i202010

MARK B,*495,(L):REFER R/M

main13201-F9000-C0×4i202010

MARK C,*495,(L):REFER R/M

13265BOLT, CONNECTING ROD

main13265-25020×8i202010

(J),*495; *132

main13265-28010×12i201706-201901

main13265-28020×12i201901-202010

main13265-F0010×8i202010

(L),*495

13411CRANKSHAFT

main13401-0P060i201706-202010

main13401-25010i201706-202010

(J),*495; *132

main13401-31070i202308

*497

main13401-31080i202308

*714

main13401-F0010i201706-202010

(L),*495

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202010

*132; *495

13470PULLEY ASSY, CRANKSHAFT

main13470-25010i201706-202010

*132,*495

main13470-25020i201706-202010

*495

13471PULLEY, CRANKSHAFT

main13470-31060i201706-202010

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i201706-202010

*132; *495

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i201706-202010

*132

main90119-A0265i201706-202010

*495

13519BSPROCKET, OIL PUMP DRIVE

main13519-25010i202010

*132

main13519-F0010i201706-202010

*495

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0P020i201706-202010

main13521-25010i202010

*132

main13521-F0010i202003-202010

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-0P030i201706-201802

main19315-0P050i201803-202010

main19315-25010i201706-201911

*132

main19315-25011i201912-202010

*132

main19315-F0010i201706-201911

*495

main19315-F0011i202010

*495

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

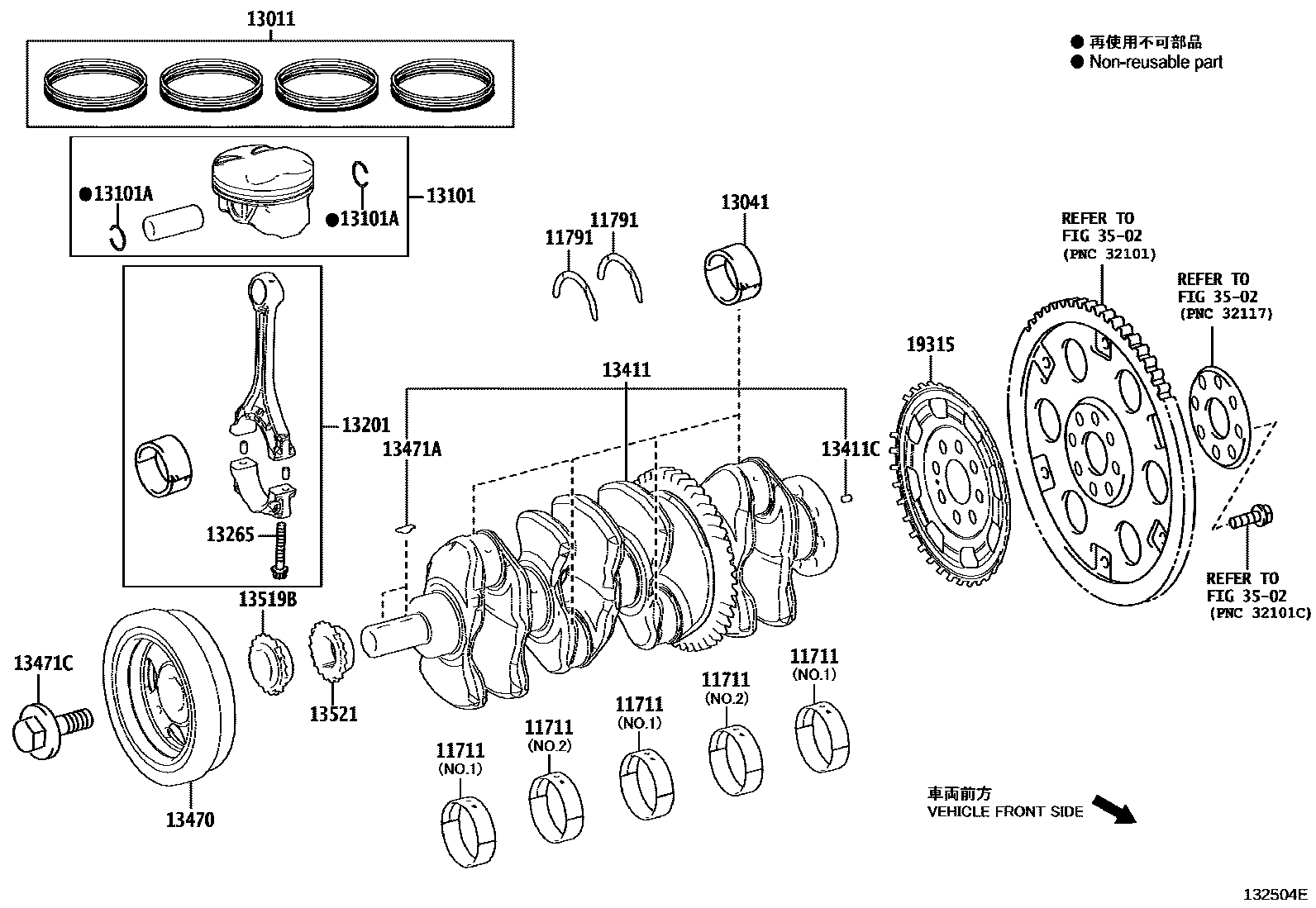

CRANKSHAFT & PISTON
