ENGINE OVERHAUL GASKET KIT

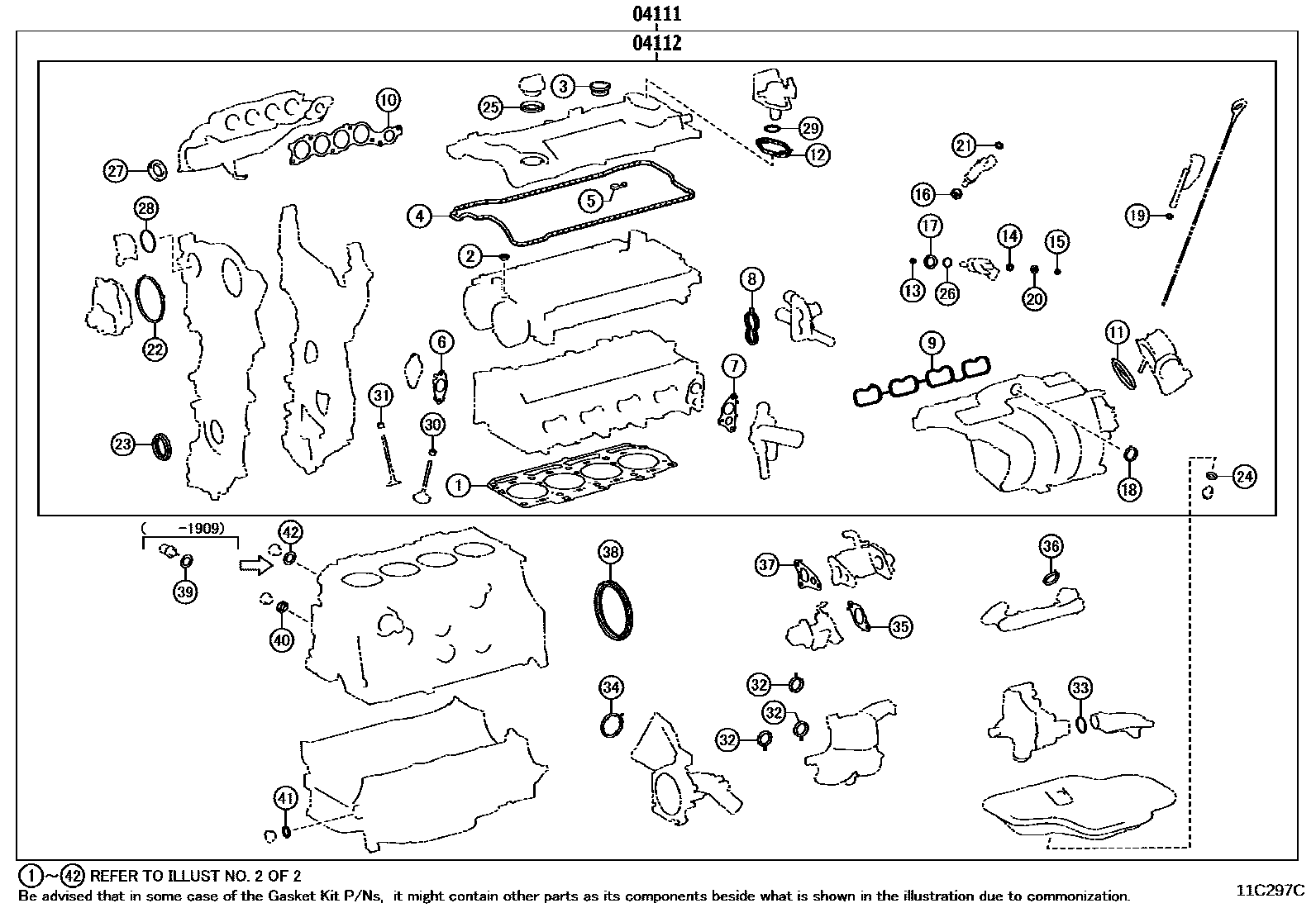

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0P230i201706-201711

main04111-0P231i201711-201807

main04111-0P232i201807-202010

main04111-0P233i202205

*759

main04111-31C63i202308

*760

main04111-F0011i201706-201710

main04111-F0012i201710-202010

main04111-F0021i201706-201710

main04111-F0022i202010-202109

main04111-F0120i202010-202112

main04111-F0122i202112

main04111-F0130i202109-202112

main04111-F0132i202112

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0P190i201706-201711

main04112-0P191i201711-202010

main04112-0P192i202205

*759

main04112-31A02i202308

*760

main04112-F0010i202010-202112

main04112-F0012i202112

main04112-F0020i201706-202010

main04112-F0022i202112

2 parts on this diagram · 6 diagrams in section
