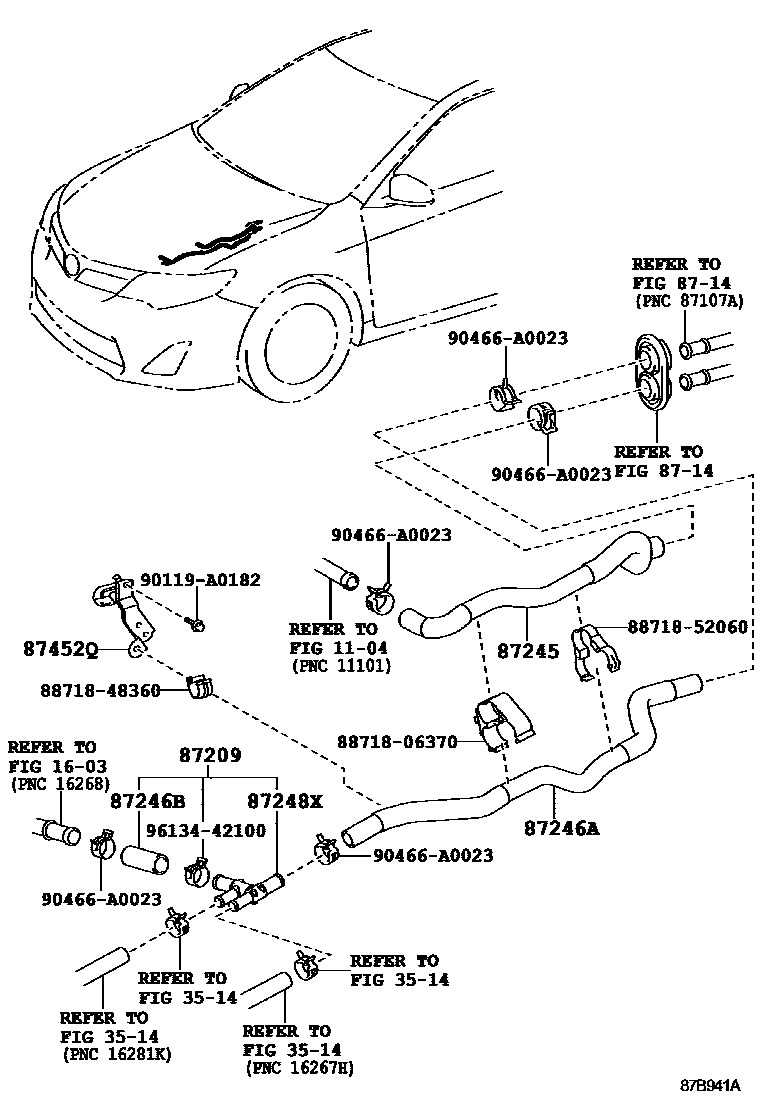

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87209HOSE SUB-ASSY, WATER

main87209-06020iASV50201109-201409

main87209-06030iGSV50201109-201409

87245HOSE, HEATER WATER, INLET

main87245-06800iGSV50201409

main87245-06830iASV50201409

main87245-06850iAVV50201110-201409

87246HOSE, HEATER WATER, OUTLET

main87245-06860iAVV50201110-201409

87246AHOSE, HEATER WATER, OUTLET A

main87245-06810iGSV50201109-201409

main87245-06840iASV50201109-201409

87246BHOSE, HEATER WATER, OUTLET B

main87245-06790iGSV50201409

main87245-06820iASV50201109-201409

87248XPIPE, HEATER WATER

main87248-06020iASV50201409

main87248-06040iGSV50201109-201409

87452QBRACKET, HEATER, NO.1

main87121-06010iASV50201212-201409

main87452-06040iASV50201109-201211

8871806370PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06370

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

8871852060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52060

90119A0182

main90119-A0182

90466A0023

main90466-A0023

9613442100

main96134-42100

17 parts on this diagram · 3 diagrams in section
