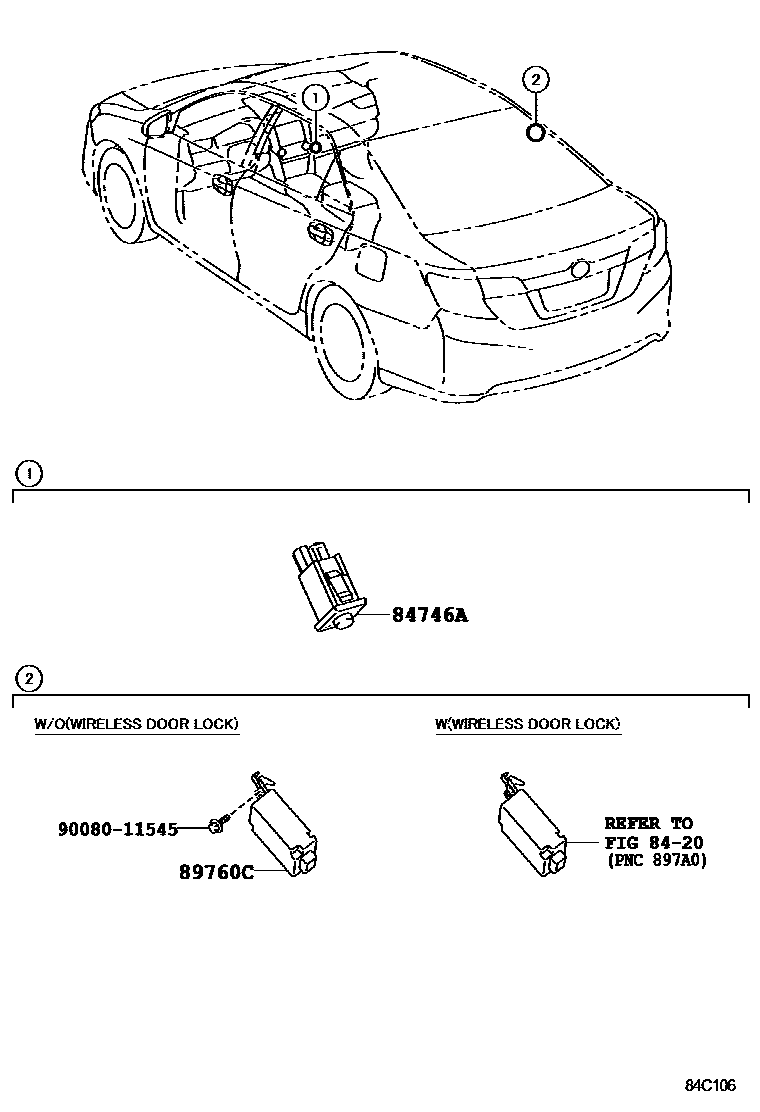

TIRE PRESSURE WARNING SYSTEM

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-AE010iASV50,AVV50,GSV50201109-201212

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-06060iASV50..N201109-201212

CANADA SPEC; CANADA SPEC&ECO PLUS PACKAGE

main89760-06061iASV50..N201212-201409

CANADA SPEC; CANADA SPEC&ECO PLUS PACKAGE

main89760-06070iASV50..XLE; AVV50,GSV50..XLE201212-201301

KOREA SPEC; KOREA SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY)

main89760-06071iASV50..XLE; AVV50,GSV50..XLE201301-201409

KOREA SPEC; KOREA SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY)

9008011545

main90080-11545

4 parts on this diagram · 1 diagram in section
