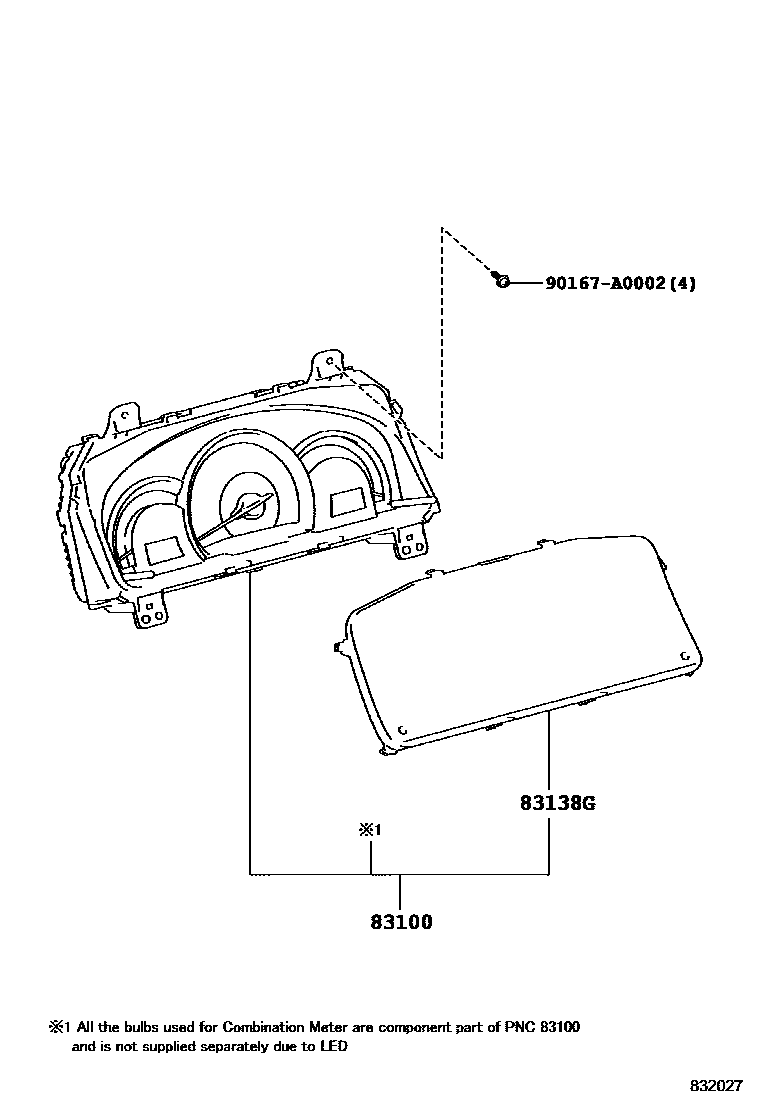

METER

83100METER ASSY, COMBINATION

main83800-0X100i201109-201212

main83800-0X630i201212-201409

main83800-0X160supersedes 83800-0X090i201109-201212

CANADA SPEC; MEXICO SPEC

main83800-0X170i201109-201212

CANADA SPEC; MEXICO SPEC

main83800-0X180supersedes 83800-0X120i201109-201212

CANADA SPEC; MEXICO SPEC

main83800-0X210supersedes 83800-0X150i201110-201212

CANADA SPEC

main83800-0X220i201109-201212

KOREA SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY)&HEADLAMP-DISCHARGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS&STARTING SYSTEM-PUSH BUTTON; KOREA SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY)&HEADLAMP-DISCHARGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START

main83800-0X230i201110-201212

KOREA SPEC&HEADLAMP-DISCHARGE

main83800-0X340supersedes 83800-0X810i201409

CANADA SPEC; CANADA SPEC&AUDIO-*DA(*DLX) & 6SPEAKER; CANADA SPEC&AUDIO-AVN & 6SPEAKER; MEXICO SPEC

main83800-0X560supersedes 83800-0XB50i201409

CANADA SPEC&AUDIO-*DA(*DLX) & 6SPEAKER; CANADA SPEC&AUDIO-AVN & 6SPEAKER

main83800-0X660supersedes 83800-0X620i201212-201409

CANADA SPEC; MEXICO SPEC

main83800-0X670supersedes 83800-0X640i201212-201409

CANADA SPEC; MEXICO SPEC

main83800-0X680supersedes 83800-0X650i201212-201409

CANADA SPEC; MEXICO SPEC

main83800-0X690supersedes 83800-0X610i201212-201409

CANADA SPEC

main83800-0X710i201212-201409

KOREA SPEC&HEADLAMP-DISCHARGE; KOREA SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY)&HEADLAMP-DISCHARGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS&STARTING SYSTEM-PUSH BUTTON

main83800-0X720i201212-201409

KOREA SPEC&HEADLAMP-DISCHARGE

main83800-0X730supersedes 83800-0XB50i201409

AUDIO-*DA(*DLX) & 6SPEAKER; AUDIO-AVN & 6SPEAKER

main83800-0X780supersedes 83800-0XB30i201409

AUDIO-*DA(*DLX) & 6SPEAKER

main83800-0X800supersedes 83800-0X810i201409

AUDIO-*DA(*DLX) & 6SPEAKER; AUDIO-AVN & 6SPEAKER

main83800-0X820supersedes 83800-0XK00i201409

AUDIO-*DA(*DLX) & 6SPEAKER; AUDIO-AVN & 6SPEAKER

main83800-0X830supersedes 83800-0XK00i201409-201508

CANADA SPEC&TIRE INFLATION PRESS WRNG-WITHOUT; MEXICO SPEC&TIRE INFLATION PRESS WRNG-WITHOUT

main83800-0X840supersedes 83800-0X810i201409

CANADA SPEC

main83800-0X850supersedes 83800-0XK00i201409

CANADA SPEC; CANADA SPEC&TIRE INFLATION PRESS WRNG-WITHOUT&AUDIO-*DA(*DLX) & 6SPEAKER; CANADA SPEC&TIRE INFLATION PRESS WRNG-WITHOUT&AUDIO-AVN & 6SPEAKER; MEXICO SPEC; MEXICO SPEC&TIRE INFLATION PRESS WRNG-WITHOUT&AUDIO-*DA(*DLX) & 6SPEAKER; MEXICO SPEC&TIRE INFLATION PRESS WRNG-WITHOUT&AUDIO-AVN & 6SPEAKER

main83800-0X860supersedes 83800-0XB30i201409

CANADA SPEC; CANADA SPEC&AUDIO-*DA(*DLX) & 6SPEAKER

main83800-0X870i201409

KOREA SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY)&INSIDE REAR VIEW MIRROR-EC MIRROR+COMPAS+CLOCK&STARTING SYSTEM-PUSH BUTTON&AUDIO-AVN PREMIUM SURROUND & 8SPEAKER(KOREA)

main83800-0X880supersedes 83800-0X780i201409

KOREA SPEC&AUDIO-AVN PREMIUM SURROUND & 8SPEAKER(KOREA)

main83800-0XB20supersedes 83800-0XB30i201409

CANADA SPEC

main83800-0XB40supersedes 83800-0XB50i201409

CANADA SPEC

main83800-0XJ80i201604-201606

SPECIAL EDITION

main83800-0XJ90i201604-201606

CANADA SPEC&SPECIAL EDITION

main83800-0XK10supersedes 83800-0XK00i201508-201605

CANADA SPEC&TIRE INFLATION PRESS WRNG-WITHOUT; MEXICO SPEC&TIRE INFLATION PRESS WRNG-WITHOUT

main83800-0XK11supersedes 83800-0XK01i201606

CANADA SPEC&TIRE INFLATION PRESS WRNG-WITHOUT; MEXICO SPEC&TIRE INFLATION PRESS WRNG-WITHOUT

83138GGLASS, COMBINATION METER

main83852-0X090i201109-201409

main83852-0X150i201409

90167A0002

main90167-A0002

3 parts on this diagram · 3 diagrams in section
