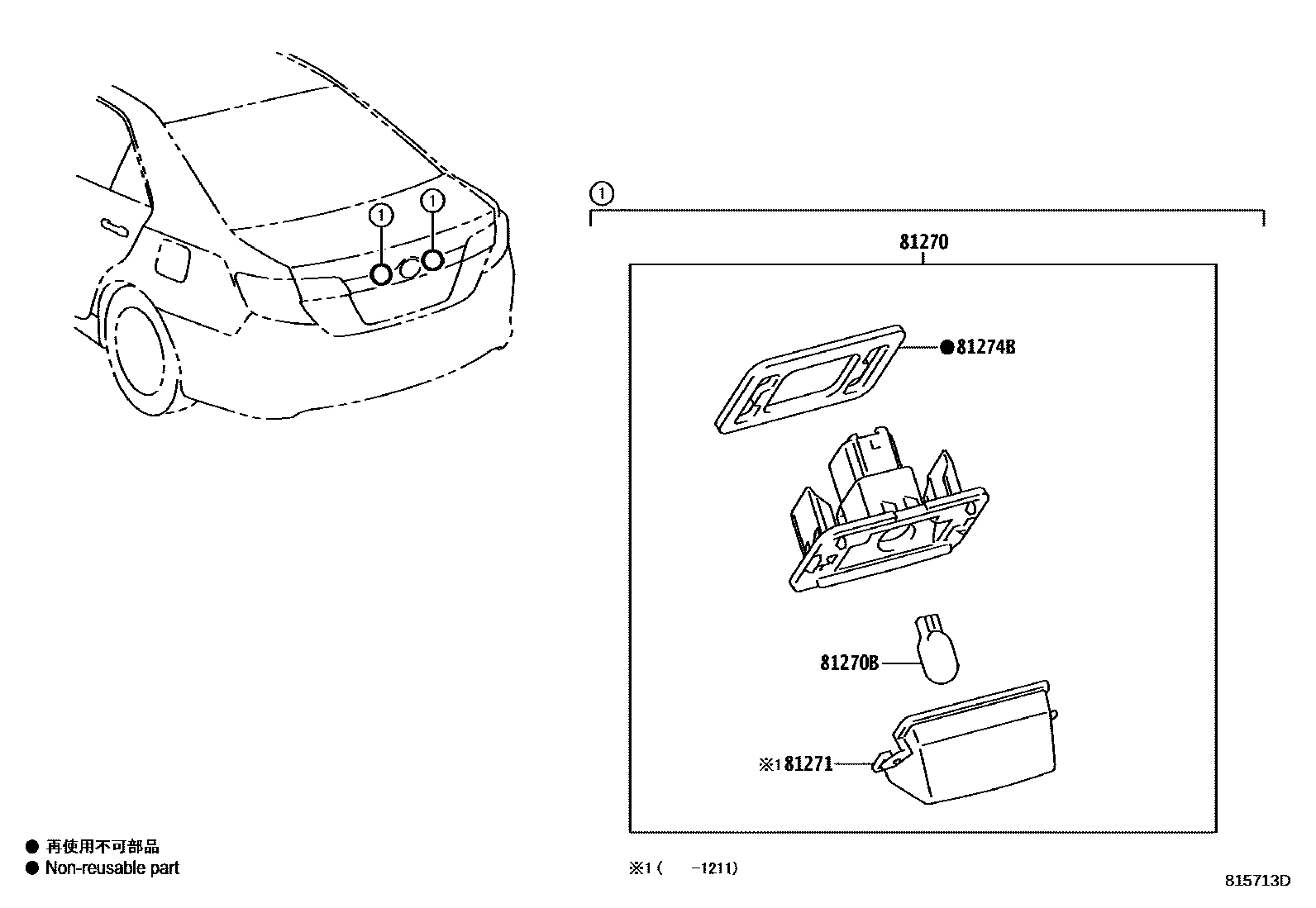

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-06030×2iASV50,AVV50,GSV50201109-201210

main81270-06031×2iASV50,AVV50,GSV50201211-201409

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iASV50,AVV50,GSV50201409

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-06030×2iASV50,AVV50,GSV50201109-201211

81274BPACKING, LICENSE PLATE LAMP

main81272-06031×2iASV50,AVV50,GSV50201211-201409

main81274-06030×2iASV50,AVV50,GSV50201109-201211

4 parts on this diagram · 1 diagram in section
