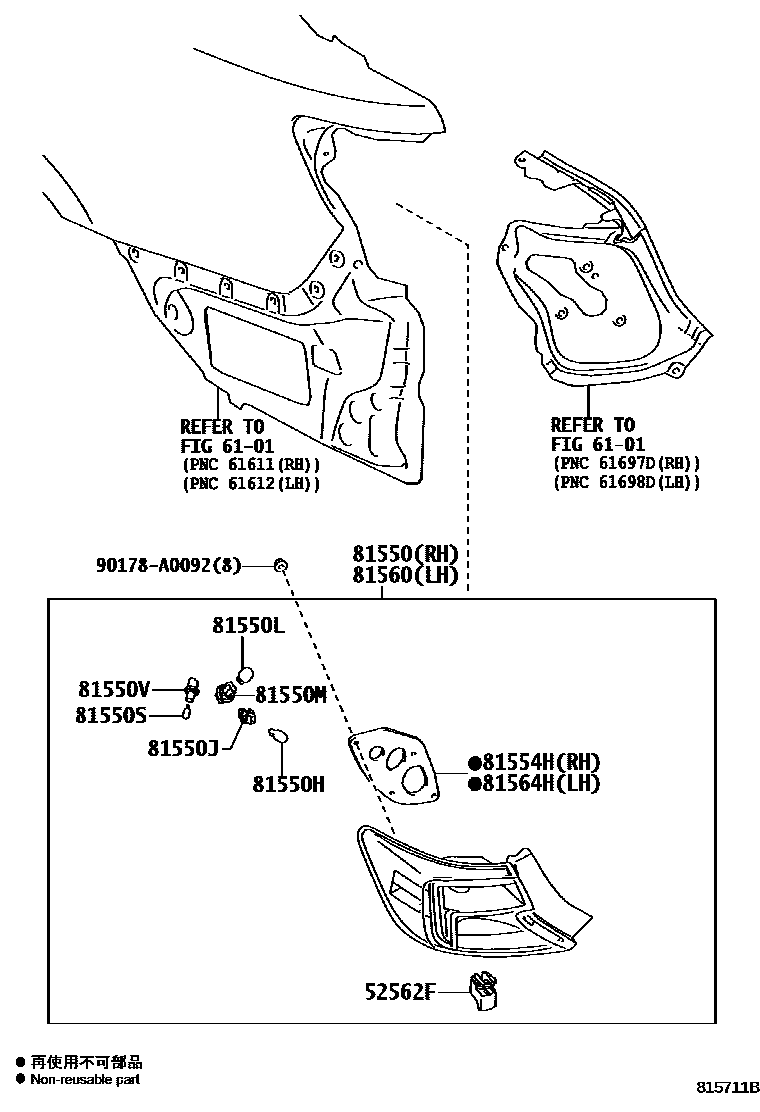

REAR COMBINATION LAMP

0001 1 0002 1

52562FRETAINER, REAR BUMPER, UPPER SIDE

main52562-06130iASV50,AVV50,GSV50201109-201409

6101

81550LAMP ASSY, REAR COMBINATION, RH

main81550-06470iASV50,AVV50,GSV50201109-201409

main81550-06640iASV50,AVV50,GSV50201409

81550HBULB, TAIL & STOP LAMP

main90981-13044iASV50,AVV50,GSV50201109-201409

main90981-13044iASV50,AVV50,GSV50201409

12V 21/5W

81550JSOCKET, TAIL & STOP LAMP

main90075-60079iASV50,AVV50,GSV50201109-201409

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iASV50,AVV50,GSV50201109-201409

main90981-15021iASV50,AVV50,GSV50201409

12V 21W,AMBER

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60026iASV50,AVV50,GSV50201109-201409

81550SBULB, REAR SIDE MARKER LAMP

main99132-12050iASV50,AVV50,GSV50201109-201409

81550VSOCKET, REAR SIDE MARKER LAMP

main90075-60063iASV50,AVV50,GSV50201109-201409

81554HPACKING, REAR COMBINATION LAMP, RH

main81554-06470iASV50,AVV50,GSV50201109-201409

main81554-06640iASV50,AVV50,GSV50201409

81560LAMP ASSY, REAR COMBINATION, LH

main81560-06470iASV50,AVV50,GSV50201109-201409

main81560-06640iASV50,AVV50,GSV50201409

81564HPACKING, REAR COMBINATION LAMP, LH

main81554-06470iASV50,AVV50,GSV50201109-201409

main81554-06640iASV50,AVV50,GSV50201409

90178A0092

main90178-A0092

13 parts on this diagram · 2 diagrams in section
