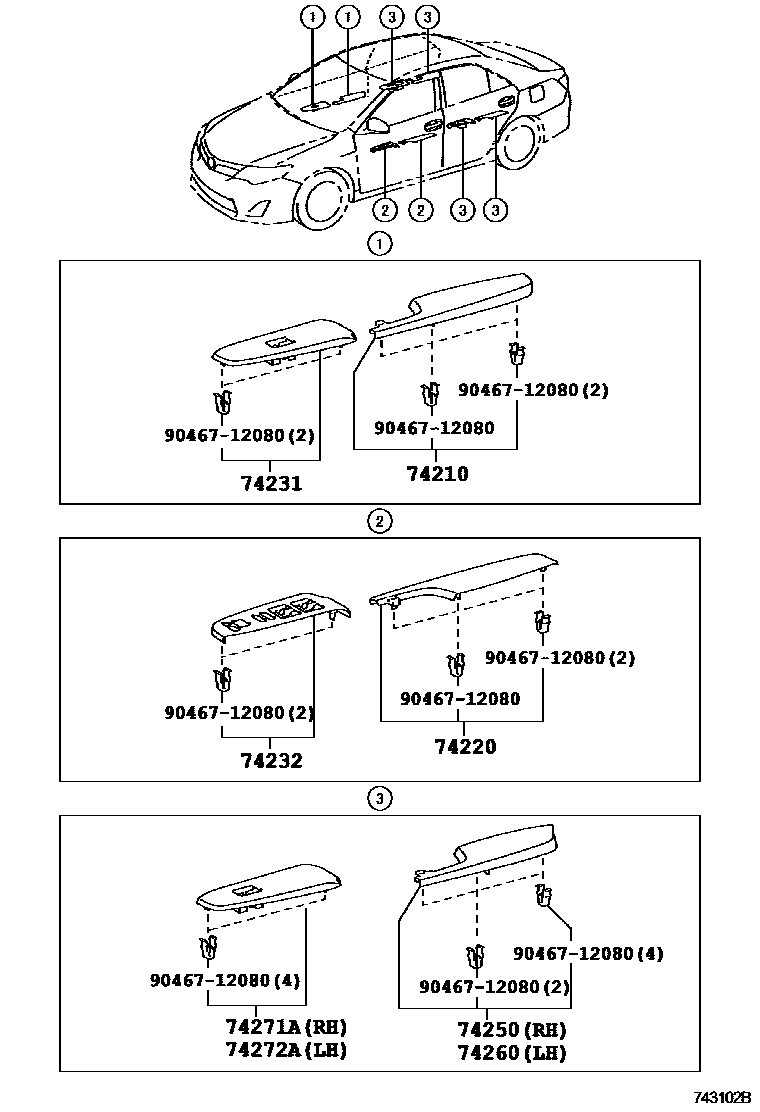

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
IVORY,TRIM00
LT.GRAY,TRIM11
GRAY,TRIM10
BLACK,TRIM00,10; BLACK,TRIM00,11
IVORY,TRIM0#
IVORY,TRIM0#
GRAY,TRIM1#
LT. GRAY,TRIM1#
IVORY,TRIM0#
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#; FLAXEN,TRIM0#
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#; GRAY,TRIM15
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM15,2#; BLACK,TRIM2#
FLAXEN,TRIM0#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#; BLACK,TRIM2#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2#
74220ARMREST ASSY, FRONT, LH
IVORY,TRIM00
LT.GRAY,TRIM11
GRAY,TRIM10
BLACK,TRIM00,10; BLACK,TRIM00,11
IVORY,TRIM0#
IVORY,TRIM0#
GRAY,TRIM1#
LT. GRAY,TRIM1#
IVORY,TRIM0#
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#; FLAXEN,TRIM0#
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#; GRAY,TRIM15
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM15,2#; BLACK,TRIM2#
FLAXEN,TRIM0#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#; BLACK,TRIM2#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
BLACK,TRIM0#,1#
MD.SILVER,TRIM1#,2#
MEDIUM REDDISH BROWN WITH,TRIM0#,1#
SILVER WITH REDDISH BROWN,TRIM0#,1#
KOREA SPEC&*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,MEDIUM REDDISH BROWN WITH,TRIM0#,1#
KOREA SPEC,SILVER WITH REDDISH BROWN,TRIM0#,1#
KOREA SPEC
74232PANEL, FRONT ARMREST BASE, UPPER LH
BLACK,TRIM0#,1#
MD.SILVER,TRIM1#,2#
MEDIUM REDDISH BROWN WITH,TRIM0#,1#
SILVER WITH REDDISH BROWN,TRIM0#,1#
KOREA SPEC&*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,MEDIUM REDDISH BROWN WITH,TRIM0#,1#
KOREA SPEC,SILVER WITH REDDISH BROWN,TRIM0#,1#
KOREA SPEC
74250ARMREST ASSY, REAR RH
IVORY,TRIM00
LT.GRAY,TRIM11
GRAY,TRIM10
BLACK,TRIM0#,1#; BLACK,TRIM1#,2#
IVORY,TRIM0#
IVORY,TRIM0#
GRAY,TRIM1#
LT. GRAY,TRIM1#
IVORY,TRIM0#
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#; FLAXEN,TRIM0#
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#; GRAY,TRIM15
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM15,2#; BLACK,TRIM2#
FLAXEN,TRIM0#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#; BLACK,TRIM2#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2#
74260ARMREST ASSY, REAR LH
IVORY,TRIM00
LT.GRAY,TRIM11
GRAY,TRIM10
BLACK,TRIM00,10; BLACK,TRIM00,11
IVORY,TRIM0#
IVORY,TRIM0#
GRAY,TRIM1#
LT. GRAY,TRIM1#
IVORY,TRIM0#
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#; FLAXEN,TRIM0#
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#; GRAY,TRIM15
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM15,2#; BLACK,TRIM2#
FLAXEN,TRIM0#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#; BLACK,TRIM2#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
BLACK,TRIM0#,1#
MD.SILVER,TRIM1#,2#
MEDIUM REDDISH BROWN WITH,TRIM0#,1#
SILVER WITH REDDISH BROWN,TRIM0#,1#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
BLACK,TRIM0#,1#
MD.SILVER,TRIM1#,2#
MEDIUM REDDISH BROWN WITH,TRIM0#,1#
SILVER WITH REDDISH BROWN,TRIM0#,1#
9046712080
main90467-12080
9 parts on this diagram · 3 diagrams in section
