EPC Data

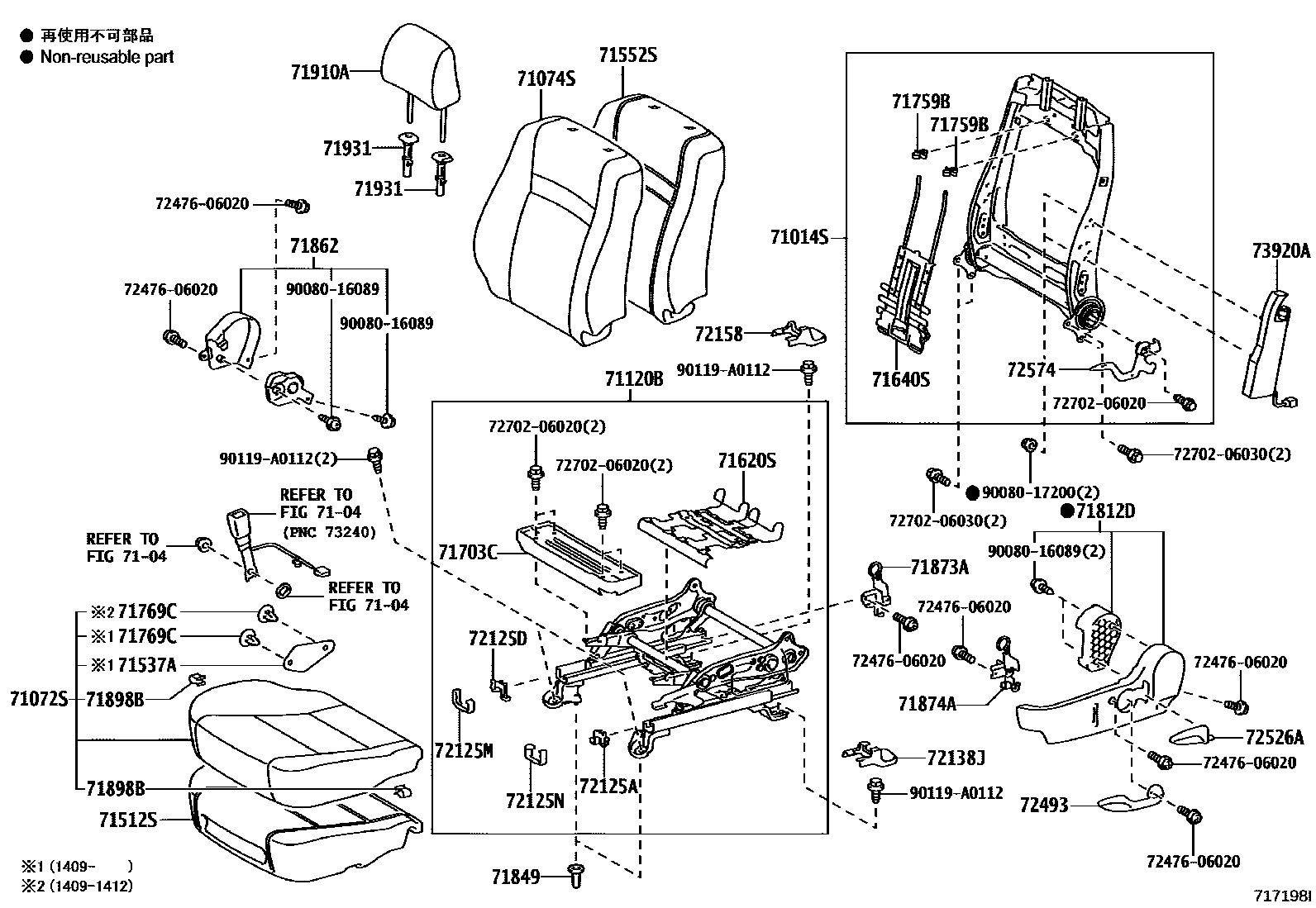

FRONT SEAT & SEAT TRACK

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71104-06010i201109-201409
main71104-06020i201109-201409
*DRP:WITH(POWER SEAT); *DRP:WITH(POWER SEAT) & LEATHER PACKAGE
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-06C20-A0i201409-201706
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#; FLAXEN,TRIM0#
main71072-06C20-B0i201409-201706
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#
main71072-06C20-C0i201409-201706
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM2#
main71072-06C30-B6i201110-201212
GRAY,TRIM1#
main71072-06C30-B7i201110-201212
IVORY,TRIM0#
main71072-06C31-A2i201212-201409
LT IVORY,TRIM0#
main71072-06C31-B6i201212-201409
GRAY,TRIM1#
main71072-06C40-A2i201409-201706
FLAXEN,TRIM0#
main71072-06C40-B2i201409-201706
GRAY,TRIM1#
main71072-06C40-C1i201409-201706
BLACK,TRIM2#
main71072-06C50-B1i201409-201508
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#
main71072-06C50-C1i201409-201508
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM2#
main71072-06C60-B1i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main71072-06C60-C1i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#; BLACK,TRIM2#
main71072-06C93-B3i201402-201409
GRAY/BLACK,TRIM1#
main71072-06C93-C7i201402-201409
BLACK,TRIM2#
main71072-06K00-B1i201110-201212
IVORY,TRIM0#
main71072-06K00-E1i201110-201212
LT GRAY,TRIM1#
main71072-06K01-B1i201212-201409
IVORY,TRIM0#
main71072-06K01-E1i201212-201409
LT GRAY,TRIM1#
main71072-06L60-B0i201109-201110
GRAY,TRIM1#
main71072-06L60-B1i201109-201110
IVORY,TRIM0#
main71072-06T00-B0i201508-201706
GRAY,TRIM1#
main71072-06T00-C0i201508-201706
BLACK,TRIM2#
main71072-06C50-J0i201508-201606
SPECIAL EDITION,SERENITY BLUE,TRIM2#
main71072-06C70-A1i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71072-06C70-B6i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71072-06C71-A1i201212-201312
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71072-06C71-B6i201212-201312
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71072-06C72-A1i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71072-06C72-B6i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71072-06C80-B3i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71072-06C80-E3i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,LT. GRAY,TRIM1#
main71072-06C81-B3i201212-201311
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71072-06C81-E3i201212-201311
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,LT. GRAY,TRIM1#
main71072-06C82-B3i201312-201401
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71072-06C82-E3i201312-201401
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,LT.GRAY,TRIM1#
main71072-06C83-B3i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71072-06C83-E3i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,LT. GRAY,TRIM1#
main71072-06D20-B3supersedes 71072-06C90-B3i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#
main71072-06D20-C5supersedes 71072-06C90-C7i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71072-06D21-B3supersedes 71072-06C91-B3i201212-201311
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1#
main71072-06D21-C5supersedes 71072-06C91-C7i201212-201311
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71072-06D22-B3supersedes 71072-06C92-B3i201312-201401
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1#
main71072-06D22-C5supersedes 71072-06C92-C7i201312-201401
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71072-06D23-B3supersedes 71072-06M10-B0i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1#
main71072-06D23-C5supersedes 71072-06M10-C0i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71072-06D40-A1i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71072-06D40-B6i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main71072-06D41-A1i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71072-06D41-B6i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main71072-06L70-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71072-06L70-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71072-06L90-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71072-06L90-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main71072-06M20-B0supersedes 71072-06M10-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#
main71072-06M20-C0supersedes 71072-06M10-C0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-06D80-D3i201110-201212
GRAY,TRIM1#
main71074-06D80-E3i201110-201212
IVORY,TRIM0#
main71074-06D81-D3i201212-201409
GRAY,TRIM1#
main71074-06D81-E4i201212-201409
IVORY,TRIM0#
main71074-06D90-A0i201409-201706
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#; FLAXEN,TRIM0#
main71074-06D90-B0i201409-201706
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#
main71074-06D90-C0i201409-201706
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM2#
main71074-06E00-A1i201409-201706
FLAXEN,TRIM0#
main71074-06E00-B2i201409-201706
GRAY,TRIM1#
main71074-06E00-C1i201409-201706
BLACK,TRIM2#
main71074-06E10-B1i201409-201508
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#
main71074-06E10-C1i201409-201508
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM2#
main71074-06E20-B1i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main71074-06E20-C1i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#; BLACK,TRIM2#
main71074-06E62-B4i201312-201409
BLACK,TRIM2#
main71074-06E62-B5i201312-201409
GRAY/BLACK,TRIM1#
main71074-06L40-B1i201110-201409
LT GRAY,TRIM1#
main71074-06L40-E1i201110-201409
IVORY,TRIM0#
main71074-06N10-D0i201109-201110
GRAY,TRIM1#
main71074-06N10-E0i201109-201110
IVORY,TRIM0#
main71074-06W30-B0i201508-201706
GRAY,TRIM1#
main71074-06W30-C0i201508-201706
BLACK,TRIM2#
main71074-06E10-J0i201508-201606
SPECIAL EDITION,SERENITY BLUE,TRIM2#
main71074-06E40-D2supersedes 71074-06E90-D2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71074-06E40-E3supersedes 71074-06E90-E3i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71074-06E41-D2supersedes 71074-06E91-D2i201212-201312
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71074-06E41-E3i201212-201312
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71074-06E42-D2i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71074-06E42-E3i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71074-06E50-B4i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,LT. GRAY,TRIM1#
main71074-06E50-E2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71074-06E51-B4i201212-201311
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,LT. GRAY,TRIM1#
main71074-06E51-E2i201212-201311
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71074-06E52-B4i201312-201401
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,LT.GRAY,TRIM1#
main71074-06E52-E2i201312-201401
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71074-06E53-B4i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,LT. GRAY,TRIM1#
main71074-06E53-E2i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71074-06E70-B4supersedes 71074-06E60-B4i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-06E70-B5supersedes 71074-06E60-B5i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#
main71074-06E71-B4supersedes 71074-06E61-B4i201212-201311
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-06E71-B5supersedes 71074-06E61-B5i201212-201311
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1#
main71074-06E72-B4i201312-201401
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-06E72-B5i201312-201401
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1#
main71074-06E73-B4supersedes 71074-06N60-B0i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-06E73-B5supersedes 71074-06N60-B1i201401-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1#
main71074-06E90-D2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main71074-06E90-E3i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71074-06E91-D2i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main71074-06E91-E3i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71074-06N20-D0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main71074-06N20-E0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71074-06N30-D0supersedes 71074-06N20-D0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71074-06N30-E0supersedes 71074-06N20-E0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71074-06N70-B0supersedes 71074-06N60-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-06N70-B1supersedes 71074-06N60-B1i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-06160i201109-201409
main71120-06170i201409-201706
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-06350i201109-201212
main71512-06351i201212-201409
main71512-06360i201109-201212
main71512-06361i201212-201409
71537APROTECTOR, FRONT SEAT CUSHION
main71537-06190i201409-201706
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-06270i201109-201409
main71552-06280i201109-201409
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-06370i201109-201409
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-06380i201109-201409
71703CPANEL SUB-ASSY, FRONT SEAT CUSHION
main71703-06010i201109-201409
71759BHOOK, FRONT SEATBACK
main71759-06020×4i201409-201706
main71759-47010×4i201109-201204
71769CCLIP, FRONT SEAT CUSHION COVER
main71769-60010-A4i201412-201706
FLAXEN,TRIM0#
main71769-60010-B9i201412-201706
GRAY,TRIM1#
main71769-60010-C0×2i201409-201412
BLACK,TRIM1#,2#; BLACK,TRIM2#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-06200-A0i201109-201409
*DRP:WITH(POWER SEAT),IVORY,TRIM0#; IVORY,TRIM0#
main71812-06200-A1i201409-201706
FLAXEN,TRIM0#
main71812-06200-B0i201110-201409
LT.GRAY,TRIM1#
main71812-06200-B1i201109-201409
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#
main71812-06200-C0supersedes 71812-06210-C0i201109-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2#; *DRP:WITH(POWER SEAT),BLACK,TRIM1#,2#; BLACK,TRIM1#,2#
main71812-06210-A0i201109-201409
IVORY,TRIM0#
main71812-06210-B0i201110-201409
LT.GRAY,TRIM1#
main71812-06210-B1i201109-201409
GRAY,TRIM1#
main71812-06210-A1i201409-201706
FLAXEN,TRIM0#
main71812-06210-C0i201409-201706
BLACK,TRIM1#,2#; BLACK,TRIM2#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-0T020×2i201109-201409
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-06140-A0i201109-201409
IVORY,TRIM0#
main71862-06140-A1i201409-201706
FLAXEN,TRIM0#
main71862-06140-B0i201110-201409
LT.GRAY,TRIM1#
main71862-06140-B1i201409-201706
GRAY,TRIM1#
main71862-06140-C0i201409-201706
BLACK,TRIM1#,2#; BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-06300-C0i201109-201409
BLACK; BLACK,TRIM1#,2#
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71806-06010-C0i201109-201409
BLACK; BLACK,TRIM1#,2#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06330-C0i201109-201409
BLACK; BLACK,TRIM1#,2#
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71806-06020-C0i201109-201409
BLACK; BLACK,TRIM1#,2#
71898BHOOK, FRONT SEAT COVER
main71898-07050×4i201607-201706
71910AHEADREST ASSY, FRONT SEAT
main71910-06540-A0×2supersedes 71910-06801-A0i201409-201611
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#; FLAXEN,TRIM0#
main71910-06540-B0×2supersedes 71910-06801-B0i201409-201611
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#
main71910-06540-C0×2supersedes 71910-06801-C0i201409-201611
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM2#
main71910-06541-A0×2i201611-201706
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#; FLAXEN,TRIM0#
main71910-06541-B0×2i201611-201706
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#
main71910-06541-C0×2i201611-201706
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM2#
main71910-06580-A0×2i201109-201409
IVORY,TRIM0#
main71910-06580-B0×2i201109-201409
GRAY,TRIM1#
main71910-06600-A2×2i201409-201611
FLAXEN,TRIM0#
main71910-06600-B2×2i201409-201611
GRAY,TRIM1#
main71910-06600-C1×2i201409-201611
BLACK,TRIM2#
main71910-06601-A0×2i201611-201706
FLAXEN,TRIM0#
main71910-06601-B0×2i201611-201706
GRAY,TRIM1#
main71910-06601-C0×2i201611-201706
BLACK,TRIM2#
main71910-06610-B2×2i201409-201611
GRAY,TRIM1#
main71910-06610-C1×2i201409-201611
BLACK,TRIM2#
main71910-06611-B0×2supersedes 71910-06611-B1i201611-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main71910-06611-C0×2supersedes 71910-06611-C1i201611-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#; BLACK,TRIM2#
main71910-06620-B2×2i201409-201611
GRAY,TRIM1#
main71910-06620-C1×2i201409-201611
BLACK,TRIM2#
main71910-06621-B0×2supersedes 71910-06621-B1i201611-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main71910-06621-C0×2supersedes 71910-06621-C1i201611-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#; BLACK,TRIM2#
main71910-06660-A0×2i201409-201611
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#; FLAXEN,TRIM0#
main71910-06660-B0×2i201409-201611
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#
main71910-06660-C0×2i201409-201611
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM2#
main71910-06661-A0×2i201611-201706
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#; FLAXEN,TRIM0#
main71910-06661-B0×2i201611-201706
*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#
main71910-06661-C0×2i201611-201706
*DRP:WITH(POWER SEAT),BLACK,TRIM2#; BLACK,TRIM2#
main71910-06850-A0×2i201110-201409
IVORY,TRIM0#
main71910-06850-B0×2i201110-201409
LT GRAY,TRIM1#
main71910-06880-C1×2i201110-201312
BLACK,TRIM1#,2#
main71910-06A60-A1×2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71910-06A60-B2×2i201110-201212
GRAY,TRIM1#
main71910-06A61-A0×2i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71910-06A61-B1×2i201212-201409
GRAY,TRIM1#
main71910-06A80-C0×2i201110-201312
BLACK,TRIM1#,2#
main71910-06B11-C0×2i201312-201409
BLACK,TRIM1#,2#
main71910-06B21-C0×2i201312-201409
BLACK,TRIM1#,2#
main71910-06C10-A0i201109-201110
IVORY,TRIM0#
main71910-06C10-B0i201109-201110
GRAY,TRIM1#
main71910-06610-C3×2i201409-201508
TRIM21
main71910-06A60-B3×2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,LT. GRAY,TRIM1#
main71910-06A61-B0×2i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,LT. GRAY,TRIM1#
main71910-06B00-A1×2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71910-06B00-B1×2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71910-06B01-A0×2i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71910-06B01-B0×2i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71910-06B10-C1×2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2#
main71910-06B20-C1×2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2#
main71910-06C20-A0supersedes 71910-06801-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71910-06C20-B0supersedes 71910-06801-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71910-06C40-C0supersedes 71910-06C60-C0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2#
main71910-06C50-C0supersedes 71910-06C30-C0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-06050-A0i201203-201409
W(LOCK),IVORY,TRIM0#,(L)
main71930-06050-A1i201409-201706
W(LOCK),FLAXEN,TRIM0#,(L)
main71930-06050-B0i201203-201409
W(LOCK),LT.GRAY,TRIM1#,(L)
main71930-06050-B1i201203-201409
W(LOCK),GRAY,TRIM1#,(L)
main71930-06050-C0i201409-201706
W(LOCK),BLACK,TRIM1#,2#,(L); W(LOCK),BLACK,TRIM2#,(L)
main71930-47020-A1×2i201109-201203
W(LOCK),IVORY,TRIM0#
main71930-47020-A7i201409-201706
W(LOCK),FLAXEN,TRIM0#,(J)
main71930-47020-B1i201203-201409
W(LOCK),LT.GRAY,TRIM1#,(J)
main71930-47020-B5i201203-201409
W(LOCK),GRAY,TRIM1#,(J)
main71930-47020-C0i201409-201706
W(LOCK),BLACK,TRIM1#,2#,(J); W(LOCK),BLACK,TRIM2#,(J)
main71931-06040-A0i201203-201409
W/O(LOCK),IVORY,TRIM0#,(L)
main71931-06040-A1i201409-201706
W/O(LOCK),FLAXEN,TRIM0#,(L)
main71931-06040-B0i201203-201409
W/O(LOCK),LT.GRAY,TRIM1#,(L)
main71931-06040-B1i201203-201409
W/O(LOCK),GRAY,TRIM1#,(L)
main71931-06040-C0i201409-201706
W/O(LOCK),BLACK,TRIM1#,2#,(L); W/O(LOCK),BLACK,TRIM2#,(L)
main71931-47020-A1×2i201109-201203
W/O(LOCK),IVORY,TRIM0#
main71931-47020-A7i201409-201706
W/O(LOCK),FLAXEN,TRIM0#,(J)
main71931-47020-B1×2i201110-201203
W/O(LOCK),LT.GRAY,TRIM1#
main71931-47020-B5i201203-201409
W/O(LOCK),GRAY,TRIM1#,(J)
main71931-47020-C0i201409-201706
W/O(LOCK),BLACK,TRIM1#,2#,(J); W/O(LOCK),BLACK,TRIM2#,(J)
72125ACOVER, SEAT TRACK, UPPER REAR
main72125-06010×3i201109-201409
72125DCOVER, SEAT TRACK, UPPER REAR NO.2
main72125-06020×3i201109-201409
72125MCOVER, SEAT TRACK, UPPER NO.3
main72125-06030×2i201109-201409
72125NCOVER, SEAT TRACK, UPPER NO.4
main72125-06040×2i201409-201706
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72138-06100-A1i201109-201409
IVORY,TRIM0#
main72138-06100-A2i201409-201706
FLAXEN,TRIM0#
main72138-06100-B1i201409-201706
GRAY,TRIM1#
main72138-06100-C1i201409-201706
BLACK,TRIM1#,2#; BLACK,TRIM2#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-06110-A1i201109-201409
IVORY,TRIM0#
main72158-06110-A2i201409-201706
FLAXEN,TRIM0#
main72158-06110-B1i201409-201706
GRAY,TRIM1#
main72158-06110-C1i201109-201409
BLACK,TRIM0#,1#; BLACK,TRIM1#,2#
72493HANDLE, VERTICAL ADJUSTING, NO.2
main72493-06010-A0i201109-201409
IVORY,TRIM0#
main72493-06010-B0i201110-201409
LT.GRAY,TRIM1#
main72493-06010-B1i201109-201409
GRAY,TRIM1#
main72493-06010-C0i201109-201409
BLACK,TRIM1#,2#
main72493-06010-A1i201409-201706
FLAXEN,TRIM0#
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06080-A0i201109-201409
IVORY,TRIM0#
main72526-06080-B0i201110-201409
LT.GRAY,TRIM1#
main72526-06080-B1i201109-201409
GRAY,TRIM1#
main72526-06080-C0i201109-201409
BLACK,TRIM1#,2#
main72526-06080-A1i201409-201706
FLAXEN,TRIM0#
72574LEVER, RECLINING CONTROL, LH
main72574-06010i201109-201409
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-06090i201109-201409
main73920-06170i201409-201706
7247606020SCREW, HORIZONTAL JACK, INNER
main72476-06020
7270206020BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-06020
7270206030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-06030
9008016089
main90080-16089
9008017200
main90080-17200
90119A0112
main90119-A0112

39 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
