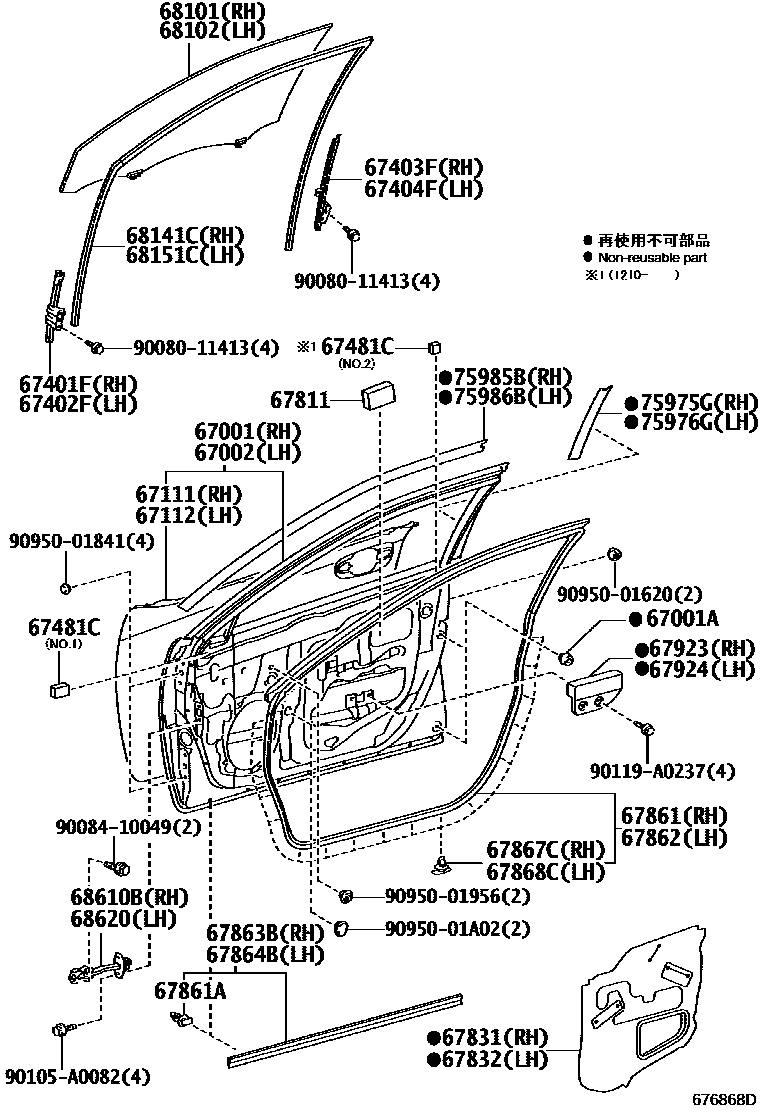

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR PANEL 0004 1DOOR PANEL 0005 1DOOR TRIM 0006 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-06170iASV50,AVV50,GSV50201109-201409

main67001-06220iASV50,AVV50,GSV50201409-201508

main67001-06221iASV50,AVV50,GSV50201509

67001ACUSHION, FRONT DOOR PANEL

main90084-54012×4iASV50,AVV50,GSV50201109-201409

main90541-09124×4iASV50,AVV50,GSV50201409

(J)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-06170iASV50,AVV50,GSV50201109-201409

main67002-06220iASV50,AVV50,GSV50201409-201508

main67002-06221iASV50,AVV50,GSV50201509

67111PANEL, FRONT DOOR, OUTER RH

main67111-06110iASV50,AVV50,GSV50201109-201409

main67111-06160iASV50,AVV50,GSV50201409

67112PANEL, FRONT DOOR, OUTER LH

main67112-06110iASV50,AVV50,GSV50201109-201409

main67112-06160iASV50,AVV50,GSV50201409

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-06100iASV50,AVV50,GSV50201409-201505

main67401-06101iASV50,AVV50,GSV50201506

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-06100iASV50,AVV50,GSV50201409-201505

main67402-06101iASV50,AVV50,GSV50201506

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-06080iASV50,AVV50,GSV50201409-201505

main67403-06081iASV50,AVV50,GSV50201506

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-06080iASV50,AVV50,GSV50201409-201505

main67404-06081iASV50,AVV50,GSV50201506

67481CSEAL, FRONT DOOR FRONT LOWER FRAME

main67481-06010×2iASV50,AVV50,GSV50201109-201409

NO.1

main67481-06080×2iASV50,AVV50,GSV50201409-201509

67811PAD, FRONT DOOR SILENCER

main67811-AA040×2iASV50,AVV50,GSV50201409

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-06130iASV50,AVV50,GSV50201409-201506

main67831-06131iASV50,AVV50,GSV50201506

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-06130iASV50,AVV50,GSV50201109-201409

main67832-06131iASV50,AVV50,GSV50201506

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-06090iASV50,AVV50,GSV50201109-201409

main67861-06150iASV50,AVV50,GSV50201409

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150×16iASV50,AVV50,GSV50201109-201409

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-06090iASV50,AVV50,GSV50201109-201409

main67862-06150iASV50,AVV50,GSV50201409

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-06010iASV50,AVV50,GSV50201109-201409

main67863-06080iASV50,AVV50,GSV50201409-201505

main67863-06081iASV50,AVV50,GSV50201505-201601

main67863-06082iASV50,AVV50,GSV50201601

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-06010iASV50,AVV50,GSV50201109-201409

main67864-06070iASV50,AVV50,GSV50201409-201505

main67864-06071iASV50,AVV50,GSV50201505-201601

main67864-06072iASV50,AVV50,GSV50201601

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iASV50,AVV50,GSV50201109-201409

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iASV50,AVV50,GSV50201109-201409

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-06110iASV50,AVV50,GSV50201109-201409

main67923-06230iASV50,AVV50,GSV50201409

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67923-06230iASV50,AVV50,GSV50201409

main67924-06040iASV50,AVV50,GSV50201109-201409

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-06190iASV50,AVV50,GSV50201109-201409

*TEM,T=5.0,GREEN

main68101-06300iASV50,AVV50,GSV50201409

*TEM,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-06190iASV50,AVV50,GSV50201109-201409

*TEM,T=5.0,GREEN

main68102-06300iASV50,AVV50,GSV50201409

*TEM,T=5.0,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-06100iASV50,AVV50,GSV50201109-201409

main68141-06160iASV50,AVV50,GSV50201409

68151CRUN, FRONT DOOR GLASS, LH

main68151-06090iASV50,AVV50,GSV50201109-201409

main68151-06150iASV50,AVV50,GSV50201409

68610BCHECK ASSY, FRONT DOOR, RH

main68610-06091iASV50,AVV50,GSV50201409-201509

main68610-06092iASV50,AVV50,GSV50201510

68620CHECK ASSY, FRONT DOOR, LH

main68610-06091iASV50,AVV50,GSV50201409-201509

main68610-06092iASV50,AVV50,GSV50201510

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-06050iASV50,AVV50,GSV50201409

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-06050iASV50,AVV50,GSV50201409

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-06050iASV50,AVV50,GSV50201409

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-06050iASV50,AVV50,GSV50201409

9008011413

main90080-11413

9008410049

main90084-10049

90105A0082

main90105-A0082

90119A0237

main90119-A0237

9095001620

main90950-01620

9095001841

main90950-01841

9095001956

main90950-01956

9095001A02

main90950-01A02

40 parts on this diagram · 6 diagrams in section
