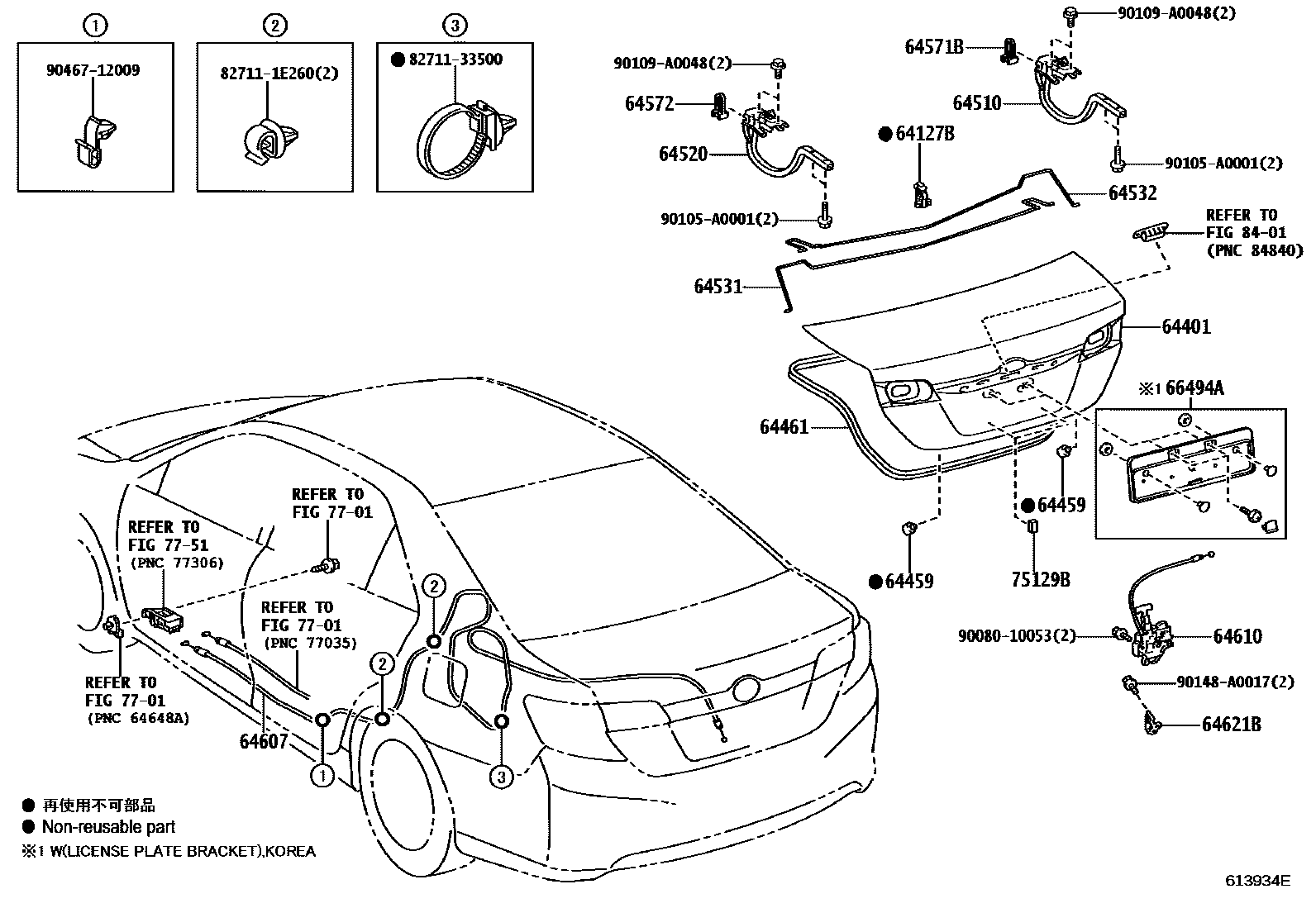

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
WIRELESS DOOR LOCK-W(SMART ENTRY)
WIRELESS DOOR LOCK-W(SMART ENTRY)
main64401-06760supersedes 64401-06A60iASV50..SE,XSE; ASV50..XLE; AVV50,GSV50..LE,XLE; AVV50,GSV50..SE,XSE; GSV50..XLE201409
REAR SPOILER-WITH; REAR SPOILER-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY); WIRELESS DOOR LOCK-W(SMART ENTRY)
REAR SPOILER-WITH; REAR SPOILER-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY)
BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
REAR SPOILER-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
REAR SPOILER-WITH
WIRELESS DOOR LOCK-W(SMART ENTRY)
REAR SPOILER-WITH
64459CUSHION, LUGGAGE COMPARTMENT DOOR
(L)
(J)
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
main64531-06370supersedes 64531-06360iASV50,AVV50,GSV50..LE,XLE; ASV50,AVV50,GSV50..SE,XSE; ASV50,GSV50..LE,XLE201409
REAR SPOILER-WITH
KOREA SPEC; KOREA SPEC&INSIDE REAR VIEW MIRROR-EC MIRROR+COMPAS+CLOCK&AUDIO-AVN PREMIUM SURROUND & 8SPEAKER(KOREA); KOREA SPEC&REAR SPOILER-WITH; KOREA SPEC&REAR SPOILER-WITH&INSIDE REAR VIEW MIRROR-EC MIRROR+COMPAS+CLOCK&AUDIO-AVN PREMIUM SURROUND & 8SPEAKER(KOREA)
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
main64532-06380supersedes 64532-06370iASV50,AVV50,GSV50..LE,XLE; ASV50,AVV50,GSV50..SE,XSE; ASV50,GSV50..LE,XLE201409
REAR SPOILER-WITH
KOREA SPEC&AUDIO-AVN PREMIUM SURROUND & 8SPEAKER(KOREA); KOREA SPEC&REAR SPOILER-WITH&AUDIO-AVN PREMIUM SURROUND & 8SPEAKER(KOREA)
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
66494APLATE, LICENSE BRACKET
KOREA SPEC&LICENSE PLATE BRACKET-WITH(FRONT & REAR),KOREA
75129BCUSHION, REAR LICENCE PLATE
NO.2
NO.1
7701FUEL TANK & TUBE
7751FUEL TANK & TUBE
8401SWITCH & RELAY & COMPUTER
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
8271133500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33500
9008010053
main90080-10053
90105A0001
main90105-A0001
90109A0048
main90109-A0048
90148A0017
main90148-A0017
9046712009
main90467-12009
25 parts on this diagram · 5 diagrams in section
