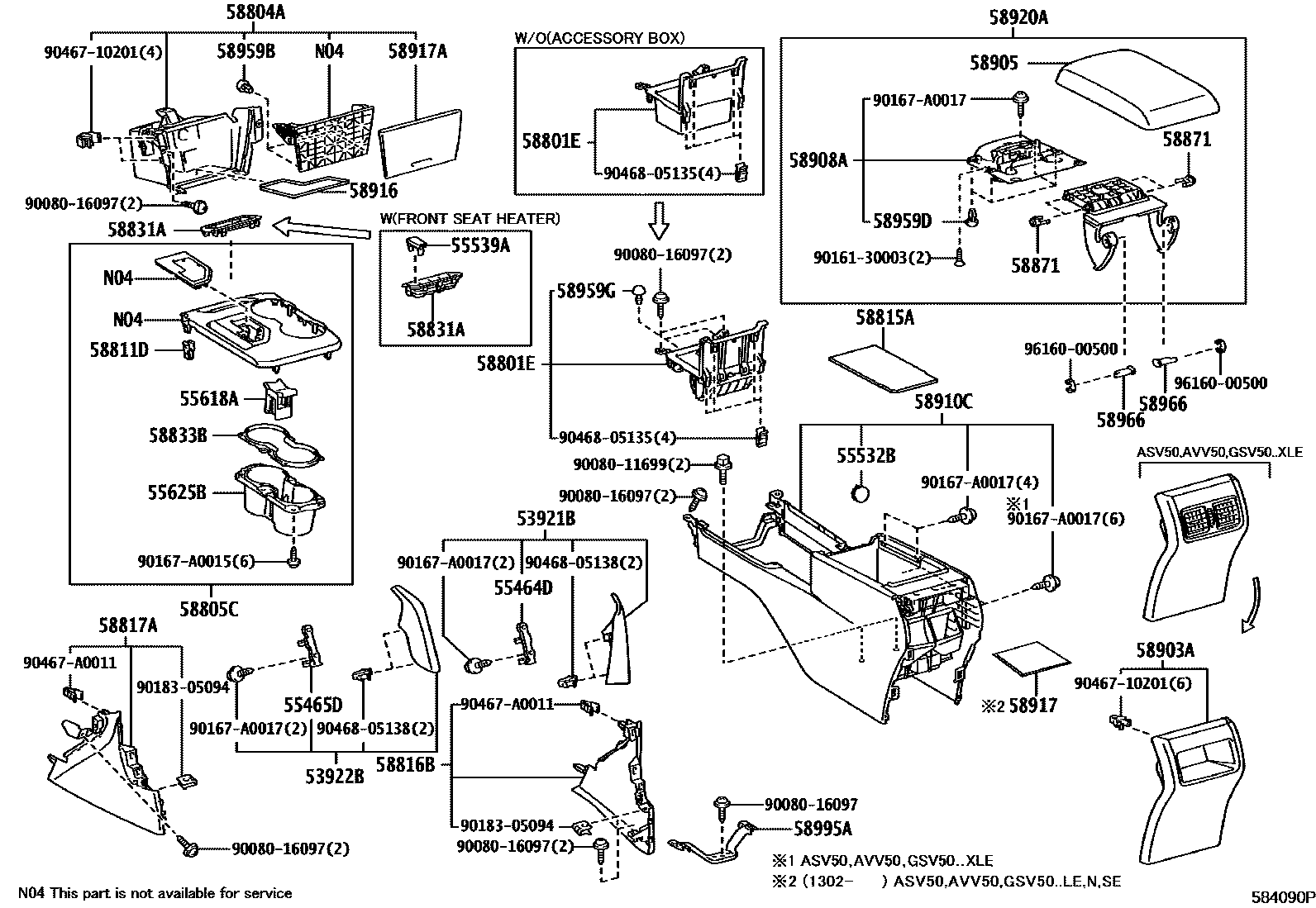

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

53921BGARNISH, FRONT PANEL, RH

main53921-06010-A0iASV50,AVV50,GSV50..LE,N,XLE201109-201409

IVORY,TRIM0#

main53921-06010-B0iAVV50..LE,XLE201110-201409

LT.GRAY,TRIM1#

main53921-06010-B1iASV50,GSV50..SE201109-201409

GRAY,TRIM10

main53921-06010-B1iASV50,GSV50..SE201109-201409

GRAY,TRIM1#

main53921-06010-C0iAVV50..SE201402-201409

BLACK,TRIM1#,2#

main53921-06010-C0iASV50,GSV50..SE201109-201409

BLACK,TRIM15,2#

53922BGARNISH, FRONT PANEL, LH

main53922-06010-A0iASV50,AVV50,GSV50..LE,N,XLE201109-201409

IVORY,TRIM0#

main53922-06010-B0iAVV50..LE,XLE201110-201409

LT.GRAY,TRIM1#

main53922-06010-B1iASV50,GSV50..LE,N,XLE201109-201409

GRAY,TRIM10

main53922-06010-B1iASV50,GSV50..SE201109-201409

GRAY,TRIM1#

main53922-06010-C0iASV50,GSV50..SE201109-201409

BLACK,TRIM15,2#

main53922-06010-C0iAVV50..SE201402-201409

BLACK,TRIM1#,2#

55464DINSERT, INSTRUMENT PANEL LOWER PAD, RH

main55464-06010iASV50,AVV50,GSV50201109-201409

55465DINSERT, INSTRUMENT PANEL LOWER PAD, LH

main55465-06010iASV50,AVV50,GSV50201109-201409

55532BCOVER, CIGAR LIGHTER HOLE

main55532-06010iASV50,AVV50,GSV50201307-201409

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-C0iAVV50201110-201409

BLACK

sub55539-52060

55618AHOLDER, CONSOLE BOX CUP

main55618-06050iASV50,AVV50,GSV50201109-201409

55625BTRAY, INSTRUMENT PANEL CUP HOLDER

main55625-06100iASV50,AVV50,GSV50201109-201409

main55625-06110iASV50,AVV50,GSV50201409

58801EBOX SUB-ASSY, CONSOLE, UPPER

main58801-06160iASV50..LE,SE201409

*DRP:WITH(POWER SEAT)

main58801-06181iAVV50..XLE201409

*DRP:WITH(POWER SEAT)

main58801-06181iAVV50..LE,SE;ASV50,GSV50..XLE,XSE201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

main58801-06220iASV50..N;AVV50..LE201109-201409

main58801-06270iAVV50..SE,XLE;ASV50,GSV50..LE,SE,XLE201109-201409

main58801-06370iAVV50..XLE201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-06241iASV50,AVV50,GSV50201409

main58804-06370iASV50,AVV50,GSV50201109-201409

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-06240-B0iASV50,GSV50..SE201109-201401

MD.SILVER,TRIM1#,2#

sub58805-06241

main58805-06241-B0iASV50,GSV50..SE201402-201409

MD.SILVER,TRIM1#,2#

main58805-06250-E0iASV50,GSV50..XLE201109-201401

MEDIUM REDDISH BROWN WITH,TRIM0#,1#

sub58805-06251

main58805-06251-E0iASV50,GSV50..XLE201402-201409

MEDIUM REDDISH BROWN WITH,TRIM0#,1#

main58805-06260-B0iAVV50..LE,XLE201110-201409

SILVER WITH REDDISH BROWN,TRIM0#,1#

main58805-06351iASV50,AVV50,GSV50201409

main58805-06550-C0iASV50..LE,N201109-201401

BLACK,TRIM0#,1#

sub58805-06551

main58805-06551-C0iASV50..LE,N201402-201409

BLACK,TRIM0#,1#

main58805-06600-B0iAVV50..SE201402-201409

MD.SILVER,TRIM1#,2#

58811DCLIP(FOR CONSOLE BOX)

main90467-A0011iASV50,AVV50,GSV50201109-201409

58815ACARPET, CONSOLE BOX

main58815-06100iASV50,AVV50,GSV50201109-201409

58816BINSERT, CONSOLE BOX

main58816-06050-A0iASV50,AVV50,GSV50..LE,N,XLE201109-201409

IVORY,TRIM0#

main58816-06050-B0iAVV50..LE,XLE201110-201409

LT.GRAY,TRIM1#

main58816-06050-B1iASV50,GSV50..LE,N,XLE201109-201409

GRAY,TRIM1#

main58816-06050-B1iASV50,GSV50..SE201109-201409

GRAY,TRIM10

main58816-06050-C0iASV50,GSV50..SE201109-201409

BLACK,TRIM15,2#

main58816-06050-C0iAVV50..SE201402-201409

BLACK,TRIM1#,2#

main58816-06080-A0iASV50,AVV50,GSV50..LE,XLE201409-201706

FLAXEN,TRIM0#

main58816-06080-B0iASV50,AVV50,GSV50..LE,XLE201409-201706

GRAY,TRIM1#

main58816-06080-C0iASV50,AVV50,GSV50..LE,XLE201409-201706

BLACK,TRIM1#,2#

main58816-06080-C0iASV50,AVV50,GSV50..SE,XSE201409-201706

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-06040-A0iASV50,AVV50,GSV50..LE,N,XLE201109-201409

IVORY,TRIM0#

main58817-06040-B0iAVV50..LE,XLE201110-201409

LT.GRAY,TRIM1#

main58817-06040-B1iASV50,GSV50..SE201109-201409

GRAY,TRIM10

main58817-06040-B1iASV50,GSV50..SE201109-201409

GRAY,TRIM1#

main58817-06040-C0iASV50,GSV50..SE201109-201409

BLACK,TRIM15,2#

main58817-06040-C0iAVV50..SE201402-201409

BLACK,TRIM1#,2#

main58817-06130-A0iASV50,AVV50,GSV50..LE,XLE201409-201706

FLAXEN,TRIM0#

main58817-06130-B0iASV50,AVV50,GSV50..LE,XLE201409-201706

GRAY,TRIM1#

main58817-06130-C0iASV50,AVV50,GSV50..SE,XSE201409-201706

BLACK,TRIM1#,2#

main58817-06130-C0iASV50,AVV50,GSV50..LE,XLE201409-201706

BLACK,TRIM2#

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-06570iASV50,GSV50..XLE201109-201409

main58831-06600iAVV50201110-201409

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58831-06400iASV50,AVV50,GSV50201109-201409

58871CUSHION, CONSOLE BOX

main58871-30070iASV50,AVV50,GSV50201109-201409

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-06091-A0iASV50,AVV50,GSV50..XLE201109-201409

IVORY,TRIM0#

main58903-06091-B0iAVV50..XLE201110-201409

LT.GRAY,TRIM1#

main58903-06091-B1iASV50,GSV50..XLE201109-201409

GRAY,TRIM1#

main58903-06141-A0iASV50,AVV50..LE,N201109-201409

IVORY,TRIM0#

main58903-06141-A1iASV50,AVV50..LE201409-201706

FLAXEN,TRIM0#

main58903-06141-B0iAVV50..LE201110-201409

LT.GRAY,TRIM1#

main58903-06141-B1iASV50,AVV50..LE201109-201706

GRAY,TRIM1#

main58903-06141-C0iASV50,AVV50..SE201409-201706

BLACK,TRIM2#

main58903-06141-C0iASV50,AVV50..SE201109-201706

BLACK,TRIM1#,2#

main58903-06390-A0iASV50,AVV50,GSV50..XLE201409-201706

FLAXEN,TRIM0#

main58903-06390-B0iASV50,AVV50,GSV50..XLE201409-201706

GRAY,TRIM1#

main58903-06390-C0iASV50,GSV50..XSE201409-201706

BLACK,TRIM1#,2#

main58903-06390-C0iASV50,AVV50,GSV50..XLE201409-201706

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-06271iASV50,AVV50,GSV50..XLE,XSE201409-201706

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

main58905-06271-A0iASV50,AVV50..XLE201109-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,TRIM0#

sub58905-06271

main58905-06271-A0iGSV50..XLE201109-201409

TRIM0#

sub58905-06271

main58905-06271-B1iASV50..XLE201109-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,TRIM1#

sub58905-06271

main58905-06271-B1iASV50..XLE201109-201409

TRIM1#

sub58905-06271

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-06081iASV50,AVV50,GSV50201109-201409

58910CBOX ASSY, CONSOLE, REAR

main58910-06091-A0iASV50,AVV50..LE,N201109-201409

IVORY,TRIM0#

main58910-06091-B0iAVV50..LE201110-201409

LT.GRAY,TRIM1#

main58910-06091-B1iASV50..LE,N201109-201409

GRAY,TRIM1#

main58910-06091-C0iASV50,AVV50,GSV50..SE201109-201409

BLACK,TRIM1#,2#

main58910-06101-A0iASV50,AVV50,GSV50..XLE201109-201409

IVORY,TRIM0#

main58910-06101-B0iAVV50..XLE201110-201409

LT.GRAY,TRIM1#

main58910-06101-B1iASV50,GSV50..XLE201109-201409

GRAY,TRIM1#

main58910-06170-A0iASV50,AVV50..LE201409-201706

FLAXEN,TRIM0#

main58910-06170-B0iASV50,AVV50..LE201409-201706

GRAY,TRIM1#

main58910-06170-C0iASV50,AVV50..LE201409-201706

BLACK,TRIM2#

main58910-06170-C0iASV50,AVV50..LE201409-201706

BLACK,TRIM1#,2#

main58910-06180-A0iASV50,AVV50,GSV50..XLE201409-201706

FLAXEN,TRIM0#

main58910-06180-B0iASV50,AVV50,GSV50..XLE201409-201706

GRAY,TRIM1#

main58910-06180-C0iASV50,AVV50,GSV50..XLE201409-201706

BLACK,TRIM1#,2#

main58910-06180-C0iASV50,AVV50,GSV50..XLE201409-201706

BLACK,TRIM2#

58916MAT, BOX BOTTOM

main58916-06090iASV50,AVV50,GSV50201109-201409

main58916-06110iASV50,AVV50,GSV50201409

58917MAT, BOX BOTTOM, NO.2

main58917-06090iASV50,AVV50,GSV50..LE,N,SE201302-201409

58917ACOVER, CONSOLE BOX, REAR

main58917-06030iASV50..LE,SE201409

*DRP:WITH(POWER SEAT)

main58917-06050iASV50,AVV50,GSV50201109-201409

main58917-06120iASV50..SE201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

58920AARMREST ASSY, REAR CONSOLE

main58920-06011-A0iASV50,AVV50..LE,N,XLE201109-201409

IVORY,TRIM0#

sub58920-06021

main58920-06011-A1iASV50,AVV50..LE201409-201706

FLAXEN,TRIM0#

sub58920-06021

main58920-06011-A1iASV50,AVV50..LE201409-201706

*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#

sub58920-06021

main58920-06011-B0iAVV50..LE,XLE201110-201409

LT.GRAY,TRIM1#

sub58920-06021

main58920-06011-B1iASV50,AVV50..SE201409-201706

GRAY,TRIM15

sub58920-06021

main58920-06011-B1iASV50,AVV50..SE201409-201706

*DRP:WITH(POWER SEAT),GRAY,TRIM1#

sub58920-06021

main58920-06011-B1iASV50,AVV50..XLE201109-201706

GRAY,TRIM1#

sub58920-06021

main58920-06011-C0iASV50,AVV50..LE201409-201706

BLACK,TRIM2#

sub58920-06021

main58920-06011-C0iASV50,AVV50,GSV50..SE201109-201409

BLACK,TRIM1#,2#

sub58920-06021

main58920-06011-C0iASV50,AVV50..LE201409-201706

BLACK,TRIM15,2#

sub58920-06021

main58920-06011-C0iASV50,AVV50..LE201409-201706

*DRP:WITH(POWER SEAT),BLACK,TRIM2#

sub58920-06021

main58920-06021-A0iASV50,AVV50..XLE201109-201409

IVORY,TRIM0#

sub58920-06021

main58920-06021-A0iASV50,AVV50..XLE201109-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

sub58920-06021

main58920-06021-A2iASV50,AVV50,GSV50..XLE201409-201706

FLAXEN,TRIM0#

sub58920-06021

main58920-06021-B1iASV50..XLE201109-201409

GRAY,TRIM1#

sub58920-06021

main58920-06021-B1iGSV50..XLE201109-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

sub58920-06021

main58920-06021-B3iASV50,AVV50,GSV50..XLE,XSE201409-201706

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

sub58920-06021

main58920-06021-B3iASV50,AVV50..SE201409-201706

GRAY,TRIM1#

sub58920-06021

main58920-06021-C1iASV50,GSV50..XSE201409-201706

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK/RED,TRIM2#

sub58920-06021

main58920-06021-C1iASV50,AVV50,GSV50..XLE201409-201706

BLACK/RED,TRIM20

sub58920-06021

main58920-06021-C1iASV50,AVV50,GSV50..XLE201409-201706

BLACK/RED,TRIM2#

sub58920-06021

main58920-06021-C4iASV50,AVV50,GSV50..XLE201409-201706

BLACK/RICE,TRIM20

sub58920-06021

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iASV50,AVV50,GSV50201109-201409

58959DCUSHION, REAR CONSOLE BOX

main58959-60060iASV50,AVV50,GSV50201109-201409

58959GCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iAVV50..SE,XLE;ASV50,GSV50..LE,SE,XLE201109-201409

58966SHAFT, BOX DOOR HINGE

main58966-30030iASV50,AVV50,GSV50201109-201409

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-06140iASV50,AVV50,GSV50201109-201409

main58995-06160iASV50,AVV50,GSV50201409

9008011699

main90080-11699

9008016097

main90080-16097

9016130003

main90161-30003

90167A0015

main90167-A0015

90167A0017

main90167-A0017

9018305094

main90183-05094

9046710201

main90467-10201

90467A0011

main90467-A0011

9046805135

main90468-05135

9046805138

main90468-05138

9616000500

main96160-00500

42 parts on this diagram · 3 diagrams in section
