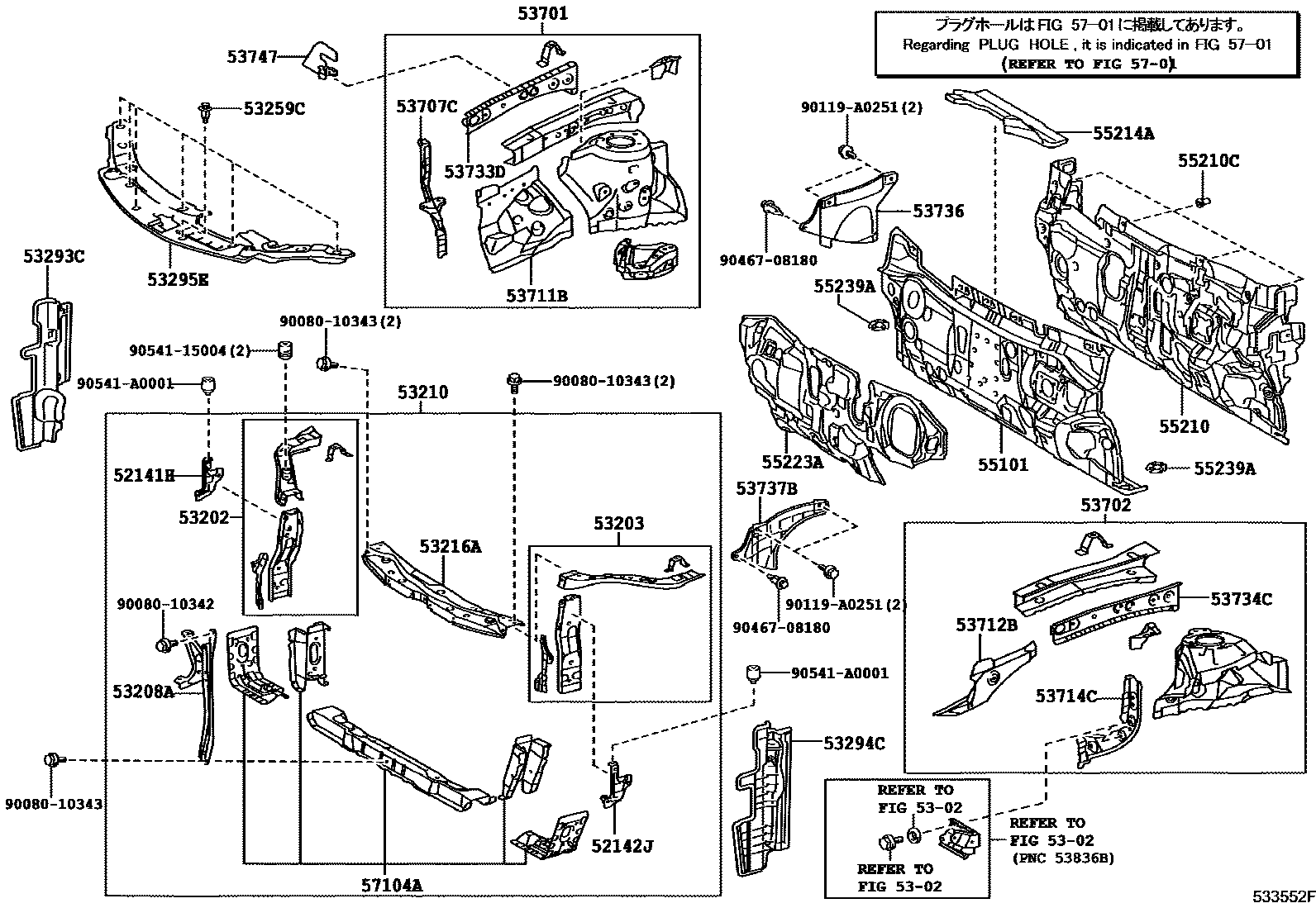

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

52141HARM, FRONT BUMPER, UPPER RH

main52141-06090iASV50,AVV50,GSV50201409

main52141-06100iASV50,AVV50,GSV50201109-201409

52142JARM, FRONT BUMPER, UPPER LH

main52142-06080iASV50,AVV50,GSV50201109-201409

main52142-06140iASV50,AVV50,GSV50201409

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-06130iASV50,AVV50,GSV50201109-201409

main53202-06190iASV50,AVV50,GSV50201409

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-06170iASV50,AVV50,GSV50201109-201409

main53203-06230iASV50,AVV50,GSV50201409

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-06080iASV50,AVV50,GSV50201109-201409

main53208-06150iASV50,AVV50,GSV50201409

53210SUPPORT ASSY, RADIATOR

main53210-06150iASV50,AVV50,GSV50201409-201706

main53210-06281iASV50,AVV50,GSV50201109-201409

53216ASUPPORT, RADIATOR, UPPER

main53216-06130iASV50,AVV50,GSV50201409

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07211×7iASV50,AVV50,GSV50201109-201409

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-06200iASV50,GSV50..LE,N,XLE201109-201409

main53293-06210iAVV50..LE,XLE201110-201409

main53293-06330iASV50,GSV50..SE201109-201409

main53293-06340iASV50,GSV50201409

main53293-06350iAVV50201409

main53293-06360iAVV50..SE201402-201409

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-06190iASV50,GSV50..LE,N,XLE201109-201409

main53294-06200iAVV50..LE,XLE201110-201409

main53294-06320iASV50,GSV50..SE201109-201409

main53294-06340iASV50,GSV50201409

main53294-06350iAVV50201409

main53294-06360iAVV50..SE201402-201409

53295ESEAL, COOL AIR INTAKE DUCT

main53295-06071iASV50,AVV50,GSV50201109-201409

main53295-06130iASV50,AVV50,GSV50201409

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-06170iASV50,AVV50,GSV50201109-201409

main53701-06230iASV50,AVV50,GSV50201409-201706

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-06150iASV50,AVV50,GSV50201109-201409

main53702-06210iASV50,AVV50,GSV50201409-201706

53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

main53707-06020iASV50,AVV50,GSV50201109-201409

53711BAPRON, FRONT FENDER, FRONT RH

main53711-06120iASV50,AVV50,GSV50201409

53712BAPRON, FRONT FENDER, FRONT LH

main53712-06080iASV50,AVV50,GSV50201109-201409

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-06090iASV50,AVV50,GSV50201109-201409

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-06090iASV50,AVV50,GSV50201109-201409

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-06090iASV50,AVV50,GSV50201109-201409

53736SEAL, FRONT FENDER APRON, RH

main53736-07021iASV50,AVV50,GSV50201109-201409

53737BSEAL, FRONT FENDER APRON, LH

main53737-06040iASV50,AVV50,GSV50201109-201409

53747PLATE, AIR SEALED, RH

main53747-06010iASV50,AVV50,GSV50201109-201409

main53747-06050iASV50,AVV50,GSV50201409

55101PANEL SUB-ASSY, DASH

main55101-06470iASV50,AVV50,GSV50201109-201409

main55101-06471iASV50,AVV50,GSV50201409-201706

55210INSULATOR ASSY, DASH PANEL

main55210-06240iASV50,GSV50201109-201408

main55210-06241iASV50,GSV50201408-201409

main55210-06271iAVV50201110-201408

main55210-06272iAVV50201409

55210CCLIP

main90467-06197×4iASV50,AVV50,GSV50201409

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-06051iASV50,AVV50,GSV50201109-201408

main55214-06052iASV50,AVV50,GSV50201408-201409

55223AINSULATOR, DASH PANEL, OUTER

main55223-06280iGSV50201409

main55223-06290iASV50201109-201409

main55223-06300iAVV50201110-201409

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-06020×2iASV50,AVV50,GSV50201109-201409

5701HOLE PLUG

→ Go to FIG 57-01

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-07022iASV50,AVV50,GSV50201109-201409

9008010342

main90080-10342

9008010343

main90080-10343

90119A0251

main90119-A0251

9046708180

main90467-08180

9054115004

main90541-15004

90541A0001

main90541-A0001

37 parts on this diagram · 5 diagrams in section
