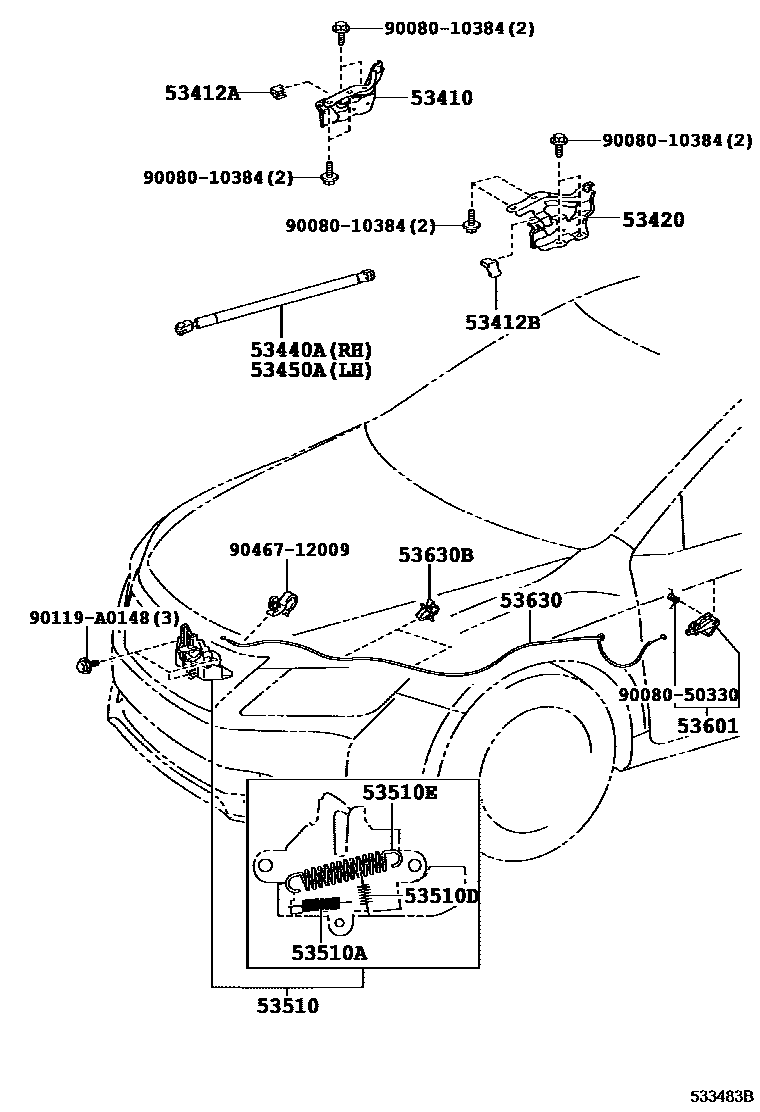

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53412ACUSHION, HOOD HINGE SEAT RH
53412BCUSHION, HOOD HINGE SEAT LH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53450ASUPPORT ASSY, HOOD, LH
53510LOCK ASSY, HOOD
main53510-06190iASV50..LE; ASV50..XLE; GSV50..SE;ASV50,AVV50..SE,XLE; GSV50..SE;ASV50..SE,XLE; GSV50..XLE201109-201409
ANTI-THEFT SYSTEM-WITH(*GBS & ALARM & IMMOBILIZER)&STARTING SYSTEM-PUSH BUTTON; ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER); ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START; MEXICO SPEC; STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START
main53510-06290iASV50..LE; ASV50..XLE; AVV50..XLE; GSV50..XLE; GSV50..XSE;ASV50,AVV50..SE,XLE,XSE; GSV50..XSE;ASV50..SE,XLE,XSE201409
ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER); ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START; ANTI-THEFT SYSTEM-WITH(*GBS & ALARM & IMMOBILIZER); ANTI-THEFT SYSTEM-WITH(*GBS & ALARM & IMMOBILIZER)&STARTING SYSTEM-PUSH BUTTON; MEXICO SPEC; STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.8,CW=13
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM1#,2#; BLACK,TRIM2#
BLACK,TRIM1#,2#; BLACK,TRIM2#
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
9008010384
main90080-10384
9008050330
main90080-50330
90119A0148
main90119-A0148
9046712009
main90467-12009
17 parts on this diagram · 2 diagrams in section
