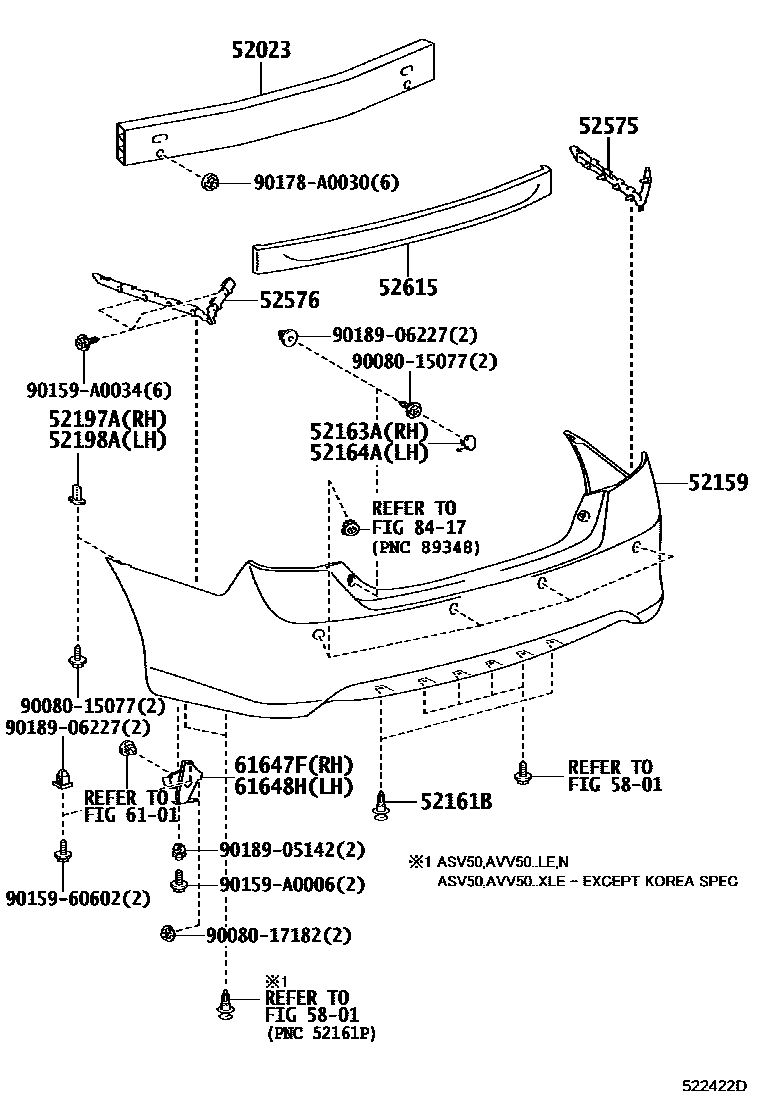

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52171-06130iASV50,AVV50,GSV50201409

52159COVER, REAR BUMPER

main52159-06961iASV50,AVV50,GSV50..LE,N,XLE201109-201409

PAINT REQ.

main52159-06963iASV50,AVV50,GSV50..SE201109-201409

PAINT REQ.

main52159-06989iASV50,AVV50,GSV50201409-201706

PAINT REQ.

main52159-06962iASV50,AVV50..XLE201109-201409

PAINT REQ.,KOREA SPEC

main52159-06990iASV50,AVV50..XLE201409-201706

PAINT REQ.,KOREA SPEC

52161BPIECE, REAR BUMPER

main52161-02020×2iASV50,AVV50,GSV50201109-201409

52163APLATE, REAR BUMPER, RH

main52163-06911iASV50,AVV50,GSV50201109-201409

main52163-06916iASV50,AVV50,GSV50201409

52164APLATE, REAR BUMPER, LH

main52164-06911iASV50,AVV50,GSV50201109-201409

main52164-06916iASV50,AVV50,GSV50201409

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-22020iASV50,AVV50,GSV50201109-201409

52198ABRACKET, REAR BUMPER SEAL, LH

main52197-22020iASV50,AVV50,GSV50201109-201409

52575RETAINER, REAR BUMPER SIDE, RH

main52575-06090iASV50,AVV50,GSV50201109-201409

main52575-06140iASV50,AVV50,GSV50201409

52576RETAINER, REAR BUMPER SIDE, LH

main52576-06090iASV50,AVV50,GSV50201109-201409

main52576-06140iASV50,AVV50,GSV50201409

52615ABSORBER, REAR BUMPER ENERGY

main52615-06060iASV50,AVV50,GSV50201109-201409

main52615-06070iASV50,AVV50,GSV50201409

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

6101SIDE MEMBER

→ Go to FIG 61-01

61647FREINFORCEMENT, WHEEL HOUSE, RH

main61647-06060iASV50,AVV50,GSV50201109-201409

61648HREINFORCEMENT, WHEEL HOUSE, LH

main61648-06060iASV50,AVV50,GSV50201109-201409

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9008015077

main90080-15077

9008017182

main90080-17182

9015960602

main90159-60602

90159A0006

main90159-A0006

90159A0034

main90159-A0034

90178A0030

main90178-A0030

9018905142

main90189-05142

9018906227

main90189-06227

23 parts on this diagram · 2 diagrams in section
