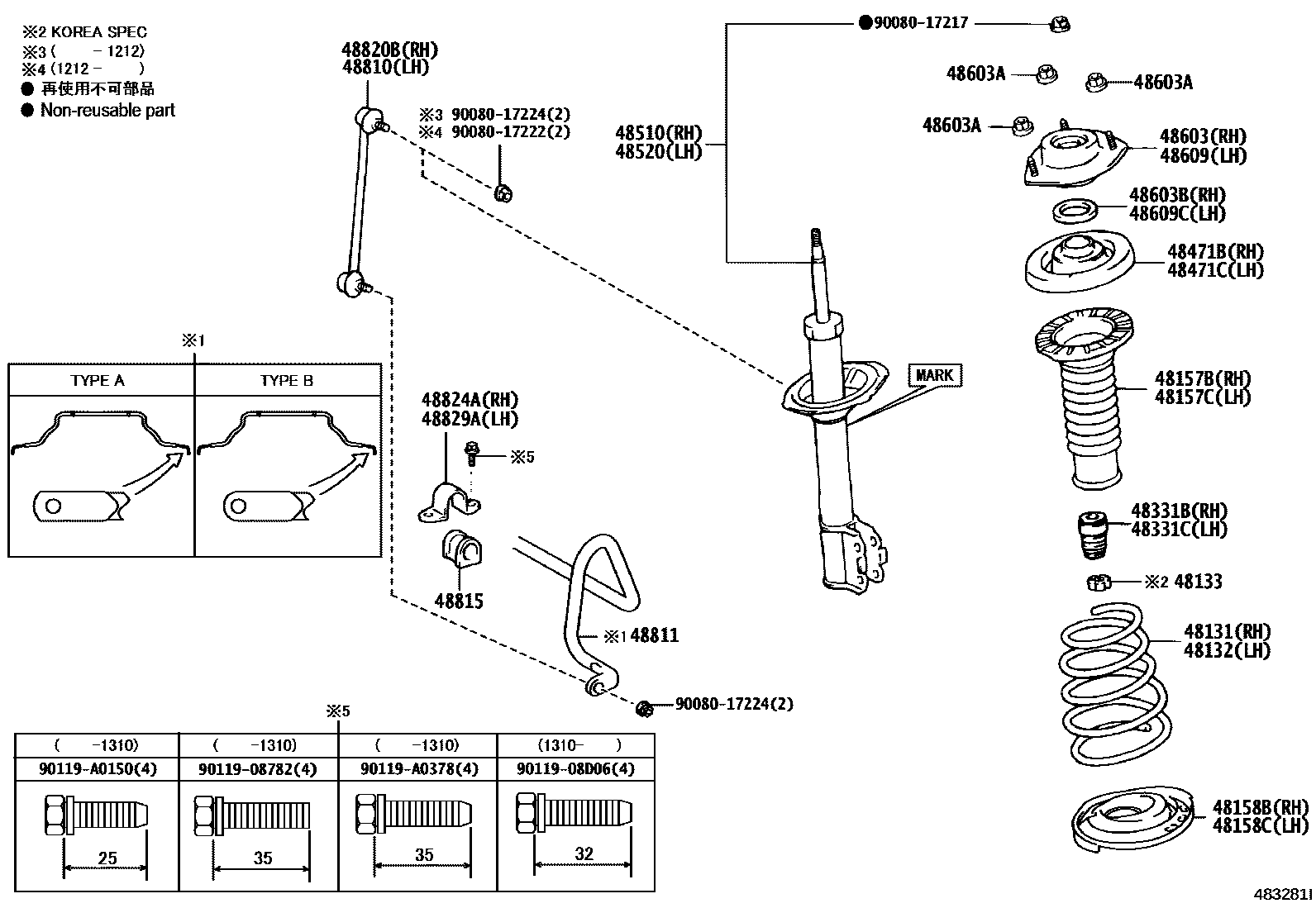

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-06C50iASV50..LE,N,XLE201109-201312

main48131-06C51iASV50..LE,N,XLE201312-201409

main48131-06C70iASV50..SE201109-201312

main48131-06C71iASV50..SE201312-201409

main48131-06C80iAVV50,GSV50..LE,XLE201109-201312

main48131-06C81iAVV50;GSV50..XLE201312-201409

main48131-06D00iGSV50..SE201109-201312

main48131-06D01iGSV50..SE201312-201409

main48131-06F50iASV50..LE,XLE201409

main48131-06F70iASV50..SE,XSE201409

main48131-06F80iGSV50..XSE201409

main48131-06G30iAVV50,GSV50..LE,SE,XLE201409

48132SPRING, FRONT COIL, LH

main48132-06010iASV50..LE,N,XLE201109-201312

main48132-06011iASV50..LE,N,XLE201312-201409

main48132-06030iASV50..SE201109-201312

main48132-06031iASV50..SE201312-201409

main48132-06040iAVV50,GSV50..LE,XLE201109-201312

main48132-06041iAVV50;GSV50..XLE201312-201409

main48132-06060iGSV50..SE201109-201312

main48132-06061iGSV50..SE201312-201409

main48132-06170iASV50..LE,XLE201409

main48132-06190iASV50..SE,XSE201409

main48132-06200iGSV50..XSE201409

main48132-06230iAVV50,GSV50..LE,SE,XLE201409

48133SPACER, FRONT COIL SPRING

main48133-06020

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06082iASV50,AVV50,GSV50201109-201601

main48157-07020iASV50,AVV50,GSV50201601

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06082iASV50,AVV50,GSV50201109-201601

main48157-07020iASV50,AVV50,GSV50201601

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06070iASV50,AVV50,GSV50201109-201601

main48158-06071iASV50,AVV50,GSV50201601

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06080iASV50,AVV50,GSV50201109-201601

main48158-06081iASV50,AVV50,GSV50201601

48331BBUMPER, FRONT SPRING, RH

main48331-06050iASV50,AVV50,GSV50201109-201409

48331CBUMPER, FRONT SPRING, LH

main48331-06050iASV50,AVV50,GSV50201109-201409

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-0E011iASV50,AVV50,GSV50201109-201409

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-0E011iASV50,AVV50,GSV50201109-201409

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09871iASV50..LE,N,XLE201109-201212

MARK 48510-06670

main48510-09873iASV50..SE201109-201212

MARK 48510-06680

main48510-09874iAVV50,GSV50..LE,XLE201109-201212

MARK 48510-06690

main48510-09874iAVV50,GSV50..LE,XLE201109-201212

MARK 48510-06690,MEXICO SPEC

main48510-09875iGSV50..SE201109-201212

MARK 48510-06700

main48510-8Z075iASV50..LE,N,XLE201212-201409

MARK 48510-06671

main48510-8Z076iASV50..SE201212-201409

MARK 48510-06681

main48510-8Z077iAVV50;GSV50..XLE201212-201409

MARK 48510-06691

main48510-8Z077iAVV50;GSV50..XLE201212-201409

MARK 48510-06691,MEXICO SPEC

main48510-8Z078iGSV50..SE201212-201409

MARK 48510-06701

main48510-8Z151iASV50..LE,XLE201409-201601

MARK 48510-06840

main48510-8Z152iASV50..SE,XSE201409-201601

MARK 48510-06850

main48510-8Z153iAVV50,GSV50..LE,XLE201409-201601

MARK 48510-06860

main48510-8Z153iAVV50,GSV50..LE,XLE201409-201601

MARK 48510-06860,MEXICO SPEC

main48510-8Z154iAVV50,GSV50..SE,XSE201409-201601

MARK 48510-06870

main48510-8Z249iASV50..LE,XLE201601

MARK 48510-06841

main48510-8Z250iASV50..SE,XSE201601

MARK 48510-06851

main48510-8Z251iAVV50,GSV50..LE,XLE201601

MARK 48510-06861

main48510-8Z251iAVV50,GSV50..LE,XLE201601

MARK 48510-06861,MEXICO SPEC

main48510-8Z252iAVV50,GSV50..SE,XSE201601

MARK 48510-06871

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09841iASV50..LE,N,XLE201109-201212

MARK 48520-06660

main48520-09851iASV50..SE201109-201212

MARK 48520-06670

main48520-09852iAVV50,GSV50..LE,XLE201109-201212

MARK 48520-06680,MEXICO SPEC

main48520-09852iGSV50..SE201109-201212

MARK 48520-06680

main48520-09853iGSV50..SE201109-201212

MARK 48520-06690

main48520-09Z30iASV50..LE,N,XLE201212-201409

MARK 48520-06661

main48520-09Z40iASV50..SE201212-201409

MARK 48520-06671

main48520-09Z50iAVV50;GSV50..XLE201212-201409

MARK 48520-06681

main48520-09Z50iAVV50;GSV50..XLE201212-201409

MARK 48520-06681,MEXICO SPEC

main48520-09Z60iGSV50..SE201212-201409

MARK 48520-06691

main48520-8Z039iASV50..LE,XLE201409-201601

MARK 48520-06840

main48520-8Z040iASV50..SE,XSE201409-201601

MARK 48520-06850

main48520-8Z041iAVV50,GSV50..LE,XLE201409-201601

MARK 48520-06860

main48520-8Z041iAVV50,GSV50..LE,XLE201409-201601

MARK 48520-06860,MEXICO SPEC

main48520-8Z042iAVV50,GSV50..SE,XSE201409-201601

MARK 48520-06870

main48520-8Z113iASV50..LE,XLE201601

MARK 48520-06841

main48520-8Z114iASV50..SE,XSE201601

MARK 48520-06851

main48520-8Z115iGSV50..XSE201601

MARK 48520-06861

main48520-8Z115iGSV50..XSE201601

MARK 48520-06861,MEXICO SPEC

main48520-8Z116iAVV50,GSV50..SE,XSE201601

MARK 48520-06871

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06250iASV50..LE,N,XLE201109-201409

main48609-06260iASV50,GSV50..SE201109-201409

main48609-06270iGSV50..XSE201109-201409

MEXICO SPEC

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-A0004iASV50,AVV50,GSV50201109-201409

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90903-63014iASV50,AVV50,GSV50201109-201409

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06250iASV50..LE,XLE201109-201409

main48609-06260iASV50,GSV50..SE201109-201409

main48609-06270iAVV50,GSV50..LE,XLE201109-201409

MEXICO SPEC

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90903-63014iASV50,AVV50,GSV50201109-201409

48810LINK ASSY, FRONT STABILIZER, LH

main48820-06090iASV50,AVV50,GSV50201409

main48820-33040iASV50,AVV50,GSV50201109-201409

48811BAR, STABILIZER, FRONT

main48811-06240iAVV50201110-201309

main48811-06241iAVV50..LE,XLE201310-201409

main48811-06250iASV50,GSV50201109-201309

TYPE A:REFER ILLUST.

main48811-06251iASV50,GSV50201310-201409

TYPE A:REFER ILLUST.

main48811-06251iAVV50..SE;ASV50,GSV50201409

main48811-06260iASV50,GSV50201109-201305

TYPE B:REFER ILLUST.

main48811-33190iASV50,GSV50201407-201409

TYPE B:REFER ILLUST.

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06090iAVV50..LE,XLE201110-201409

main48815-06140iAVV50..SE;ASV50,GSV50201109-201409

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06090iASV50,AVV50,GSV50201409

main48820-33040iASV50,AVV50,GSV50201109-201409

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06020iASV50,AVV50,GSV50201109-201409

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06020iASV50,AVV50,GSV50201109-201409

9008017217

main90080-17217

9008017222

main90080-17222

9008017224

main90080-17224

9011908782

main90119-08782

9011908D06

main90119-08D06

90119A0150

main90119-A0150

90119A0378

main90119-A0378

31 parts on this diagram · 1 diagram in section
