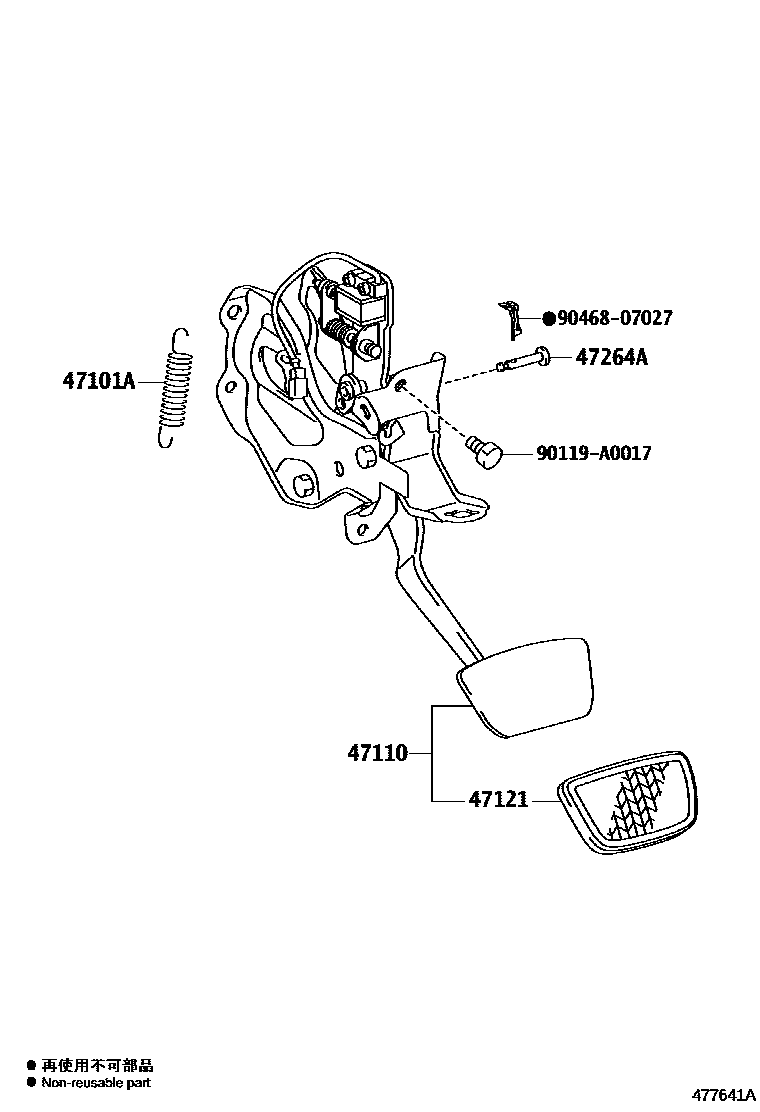

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iASV50,AVV50,GSV50201409

47110SUPPORT ASSY, BRAKE PEDAL

main47110-06270iASV50,GSV50201409-201609

main47110-06271iASV50,GSV50201610

main47110-06280iAVV50201110-201208

main47110-06281iAVV50201409

47121PAD, BRAKE PEDAL

main47121-0E010iASV50,AVV50,GSV50201409

47264APIN(FOR PUSH ROD)

main90240-08081iAVV50201110-201409

main90249-06180iASV50,GSV50201109-201409

90119A0017

main90119-A0017

9046807027

main90468-07027

6 parts on this diagram · 2 diagrams in section
