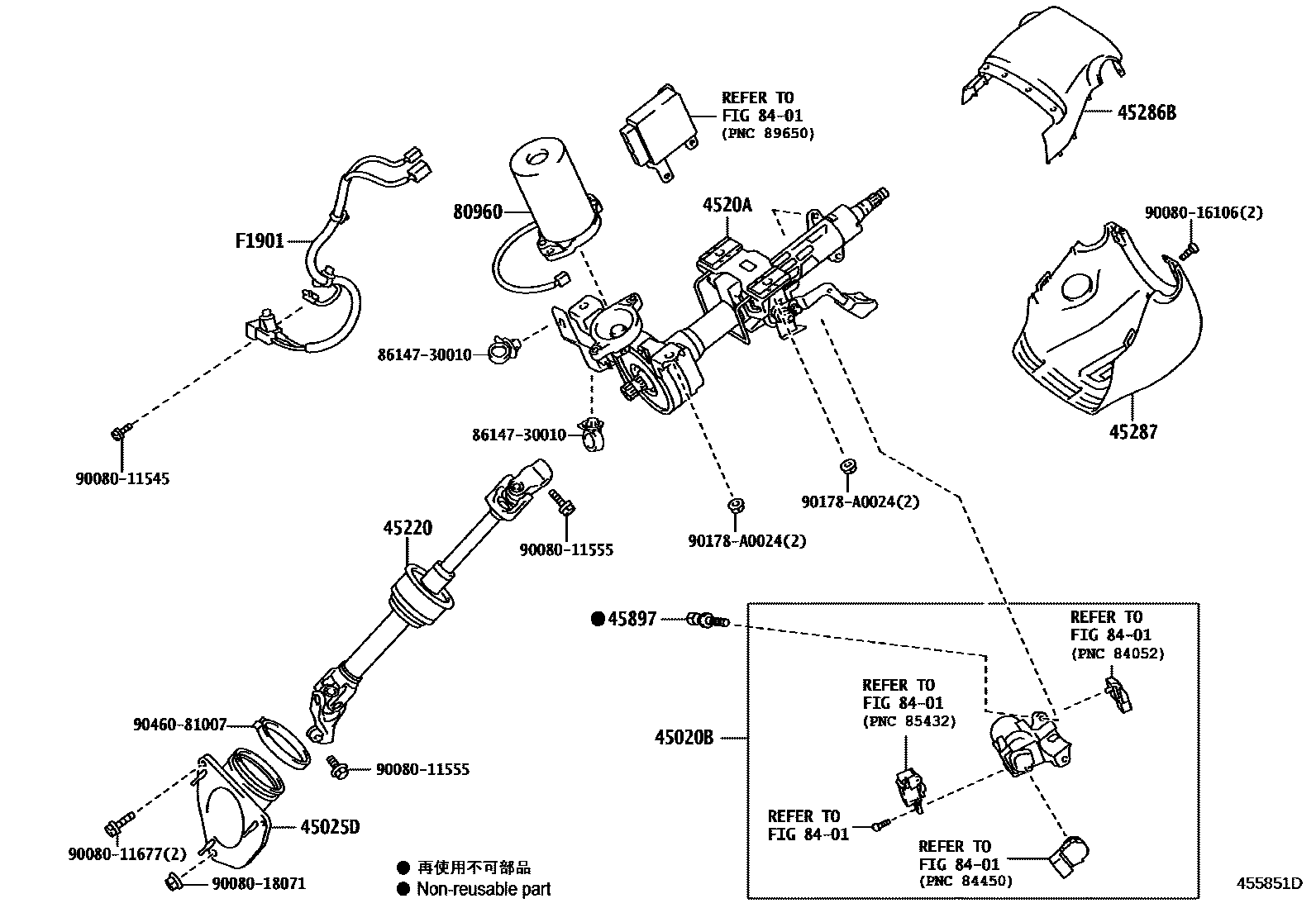

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45020-06140i201409-201706

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-06150i201109-201409

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-06020i201409

main4520A-06030i201109-201309

main4520A-06031i201310-201408

main4520A-06032i201409-201504

main4520A-06033i201505

main4520A-06040i201109-201309

main4520A-06041i201310-201408

main4520A-06010i201109-201309

STARTING SYSTEM-PUSH BUTTON; STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START

main4520A-06011i201310-201408

STARTING SYSTEM-PUSH BUTTON; STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START

main4520A-06012i201409-201504

STARTING SYSTEM-PUSH BUTTON; STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START

main4520A-06013i201606

WIRELESS DOOR LOCK-W(SMART ENTRY)

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-06150i201109-201409

main45220-06190i201409

45286BCOVER, STEERING COLUMN, UPR

main45286-06260-C0i201109-201409

BLACK,TRIM0#,1#; BLACK,TRIM1#,2#

45287COVER, STEERING COLUMN, LWR

main45287-06220-C0i201409-201706

BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#

main45287-06280-C0supersedes 45287-06220-C0i201409-201706

BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START,BLACK,TRIM0#,1#,2#; STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START,BLACK,TRIM1#,2#; STARTING SYSTEM-PUSH BUTTON,BLACK,TRIM0#,1#,2#; STARTING SYSTEM-PUSH BUTTON,BLACK,TRIM1#,2#

45897BOLT, STEERING LOCK SET

main45897-08010×2i201109-201409

80960MOTOR ASSY, POWER STEERING

main80960-06020i201109-201409

main80960-33020i201109-201409

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

F1901WIRE SUB-ASSY, COMPUTER

mainF190106010i201109-201409

mainF190106020i201109-201409

mainF190106030i201109-201409

8614730010
