30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-10299×2i201109-201409

*10-1.25PX50-30,NO.2

main90080-10338i201109-201409

*10-1.25PX41-30,NO.3

main90080-11310×6i201109-201409

*12-1.25PX55-30,NO.1

main90080-11604i201109-201409

*12-1.25PX50-30,NO.2

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064i201109-201409

*322

main90341-A0003i201409

*323

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-06030i201111-201403

*385

main35102-06031i201404-201409

*385

main35102-07010i201109-201202

*323

main35102-07011i201409-201411

*323

main35102-07012i201411

*323

main35102-33060i201109-201309

*322

main35102-33061i201309-201409

main35102-33090i201109-201308

*285

main35102-33091i201409

main35102-73010i201109-201110

*284

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2i201109-201409

*8-1.25PX28-22,*285,NO.1; *8-1.25PX28-22,*322,NO.1

main90105-A0109×2i201409

*8-1.25PX28-22,*323,NO.1; *8-1.25PX28-22,*385,NO.1

main90105-A0213×12i201409

*8-1.25PX28-22,*323,NO.2; *8-1.25PX28-22,*385,NO.2

main91551-00828×12i201109-201409

*8-1.25PX28-22,*285,NO.2; *8-1.25PX28-22,*322,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90080-34016i201109-201409

*323

main90341-08001i201109-201409

*285; *322

main90341-A0001i201111-201409

*385

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90080-30075i201409

(L),NO.1; *323,NO.1

main90080-30105×2i201409

*323,NO.2

main90301-06196i201305-201409

(J)

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90080-36120i201409

*323

main90364-18010i201109-201110

*284

main90364-A0010i201409

*385

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008i201109-201409

*322

main90430-A0003i201109-201409

*323

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2i201109-201409

*285; *322

main90341-A0001×2i201109-201409

*323

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149i201409

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187i201109-201409

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35141-06030i201111-201409

*385

main35141-06031i201411

*385,(L)

main35141-07011i201109-201205

*323

main35141-07012i201205-201409

*323

main35141-07014i201411-201510

*323

main35141-07015i201510

*323

main35141-33071i201109-201203

*322

main35141-33072i201203-201402

*322

main35141-33073i201402-201409

*322

main35141-33140i201109-201404

*285

main35141-33141i201409

*285

main35141-73010i201109-201110

*284

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3i201109-201409

*285; *322

main90341-A0001×3i201409

*323; *385

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3i201409

*285; *322

main90341-A0005×3i201409

*323; *385

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105×3i201409

*323

main90301-06196×3i201409

*322

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4i201109-201409

*322

main90301-10189×4i201111-201409

*385

main90301-A0016×4i201409

*323

35104VHOSE (FOR BREATHER PLUG)

main35121-33050i201109-201404

*285

main35121-33051i201404-201409

main35121-73010i201109-201110

*284

main35121-73011i201409

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5i201409

35104XRING, O (FOR BREATHER PLUG)

main90301-06021i201409

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3i201109-201409

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034i201409

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008i201109-201409

*285; *322

main90430-A0002i201111-201409

*385

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-06020i201111-201409

*385

main35106-07010i201109-201409

*323

main35106-33061i201109-201310

*322

main35106-33070i201409

*285

main35106-48010i201409-201502

main35106-48011i201503

main35106-73010i201109-201110

*284

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90080-11496×2i201409

*323,NO.2; *385,NO.2

main90119-06173×19i201109-201409

*285; *322

main90119-A0298×17i201409

*323,NO.1; *385,NO.1

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007i201109-201409

main90253-A0012i201411

(L)

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3i201409

*8-1.25PX45-22,*285,NO.1; *8-1.25PX45-22,*322,NO.1

main90105-A0110×3i201409

*8-1.25PX45-22,*323,NO.1; *8-1.25PX45-22,*385,NO.1

main90105-A0111×17i201409

*8-1.25PX45-22,*323,NO.2; *8-1.25PX45-22,*385,NO.2

main91551-10845×17i201409

*8-1.25PX45-22,*285,NO.2; *8-1.25PX45-22,*322,NO.2

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-07020i201409

*323

main35125-33130i201109-201409

*322

main35125-73010i201109-201409

35145CGASKET, TRANSAXLE CASE

main35145-07010i201409

*323

main35145-33010i201109-201409

*322

35148GASKET, GOVERNOR APPLY, NO.1

main35145-07010×2i201109-201409

*323

main35145-33010×2i201109-201409

*322

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010i201109-201409

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09173i201109-201409

35163APLATE, TRANSAXLE REAR COVER

main35163-07010i201409

*323; *385,(L)

main35163-33010i201109-201409

*285; *322

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90080-14046×2i201409

*323; *385,(L)

main90148-60055×2i201409

*285,*385,(J); *322

35165PLATE, TRANSMISSION CASE, NO.1

main35165-73010i201409

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-08010i201409

*323

main35168-33080i201409

*322

main35168-73010i201409

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010×2i201409

*323

main35394-30011×4i201409

*322

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90464A0005

main90464-A0005

9155180816

main91551-80816

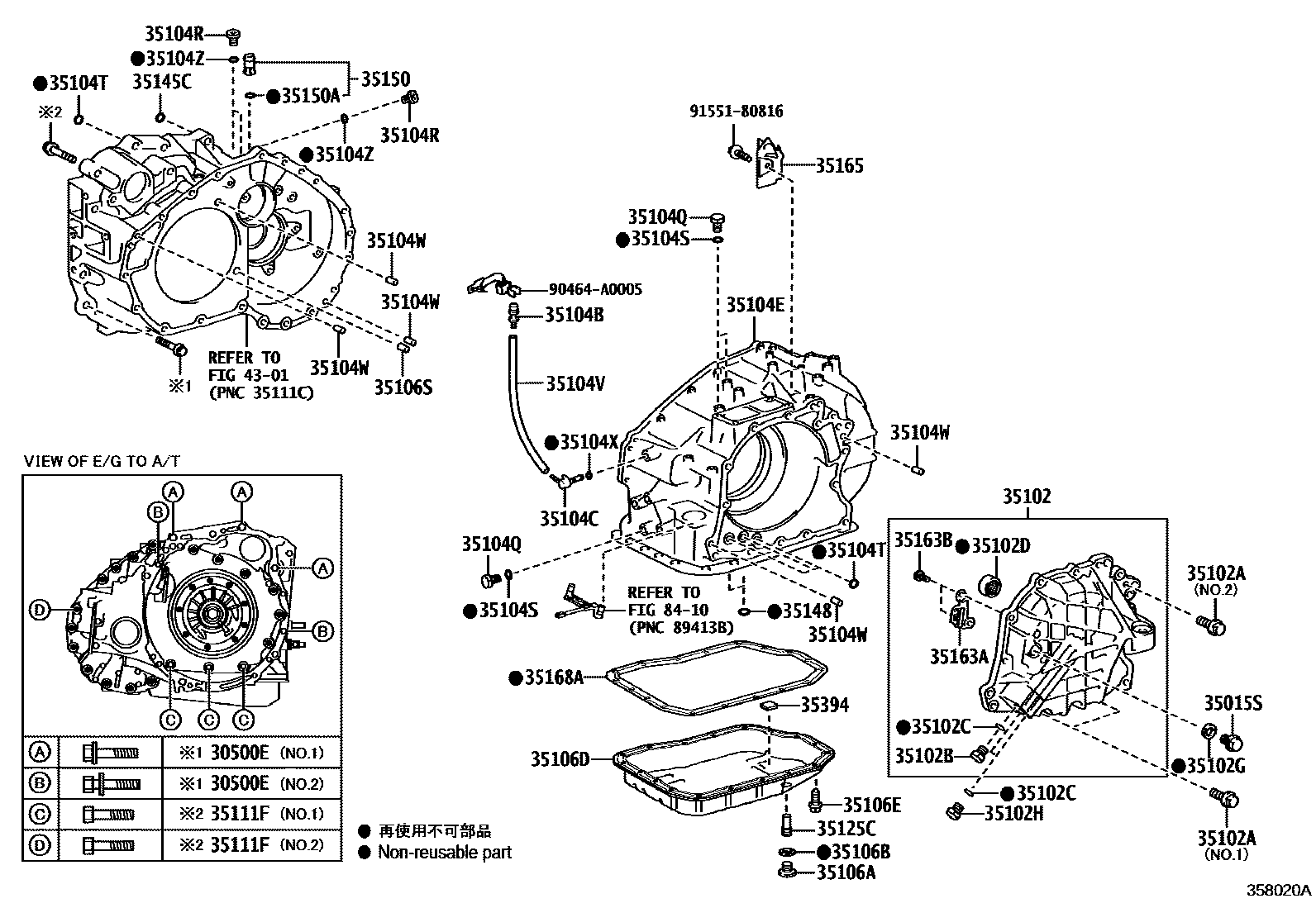

TRANSMISSION CASE & OIL PAN (ATM)
