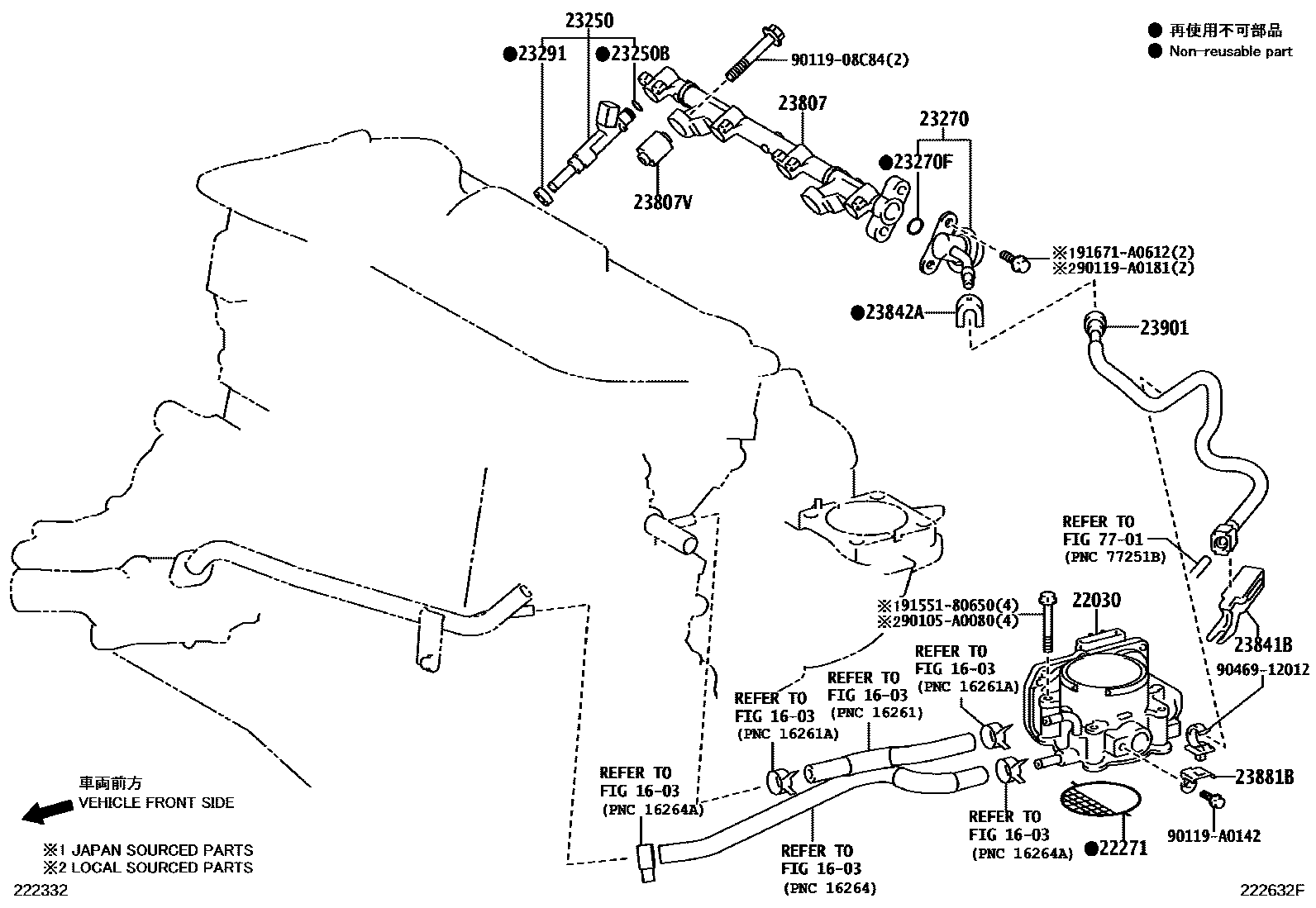

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P050i2GRFE..GSV50201109-201409

main22030-0V010i2ARFE..ASV50201409

main22030-0V050i2ARFXE..AVV50201505

(L),*364

main22030-36010i2ARFE..ASV50201109-201409

*107

main22030-36020i2ARFXE..AVV50201505

(J),*364

22271GASKET, THROTTLE BODY

main22271-0P020i2GRFE..GSV50201109-201409

main22271-0V010i2ARFE..ASV50201109-201409

*212 OR *364

main22271-36010i2ARFE..ASV50201109-201409

*107

main22271-36020i2ARFXE..AVV50201110-201409

*107

23250INJECTOR ASSY, FUEL

main23209-09175×4i2ARFXE..AVV50..LE,XLE201309-201409

*212 OR *364

main23209-0P010×6i2GRFE..GSV50201409

(L)

main23209-31090×6i2GRFE..GSV50201409

(J)

main23209-39175×4i2AR#..ASV50,AVV50201109-201409

*107

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GRFE..GSV50201109-201409

(J)

main90301-07037×4i2ARFXE..AVV50..LE,XLE201309-201409

(J),*212 OR *364

main90301-A0036×4i2ARFE..ASV50;2ARFXE..AVV50..SE201204-201409

(L),*212 OR *364

main90301-A0037×6i2GRFE..GSV50201409

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36031i2ARFE..ASV50201109-201409

*107,*212 OR *364

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2ARFE..ASV50201109-201409

*107,*212 OR *364

23291INSULATOR, INJECTOR VIBRATION

main23291-0V020×4i2ARFXE..AVV50..LE,XLE201309-201409

(L),*212 OR *364

main23291-23010×6i2GRFE..GSV50201409

main23291-28020×4i2AR#..ASV50,AVV50; 2ARFE..ASV50;2ARFXE..AVV50..SE201109-201409

(J),*212 OR *364; *107

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-36030i2ARFXE..AVV50201110-201201

*107

main23814-36040i2ARFE..ASV50201409

main23814-36050i2ARFXE..AVV50201201-201409

*107

main23870-0P011i2GRFE..GSV50201109-201409

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-36010×2i2AR#..ASV50,AVV50; 2ARFE..ASV50;2ARFXE..AVV50..SE201109-201409

*107; *212 OR *364

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0P070i2AR#..ASV50,AVV50; 2GRFE..GSV50201409

main23841-31070i2AR#..ASV50,AVV50; 2GRFE..GSV50201109-201311

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0P060i2GRFE..GSV50201502

main23842-0T030i2AR#..ASV50,AVV50201502

main23842-28010i2AR#..ASV50,AVV50201109-201409

main23842-31040i2GRFE..GSV50201109-201409

23881BBRACKET, FUEL HOSE

main23881-0V010i2ARFE..ASV50201109-201409

main23881-36030i2ARFXE..AVV50201110-201409

main23881-AD010i2GRFE..GSV50201409

23901TUBE SUB-ASSY, FUEL

main23901-0P120i2GRFE..GSV50201409

main23901-0V060i2ARFE..ASV50201409

main23901-0V070i2ARFXE..AVV50201110-201409

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90105A0080

main90105-A0080

9011908C84

main90119-08C84

90119A0142

main90119-A0142

90119A0181

main90119-A0181

9046912012

main90469-12012

9155180650

main91551-80650

91671A0612

main91671-A0612

22 parts on this diagram · 3 diagrams in section
