WATER PUMP

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

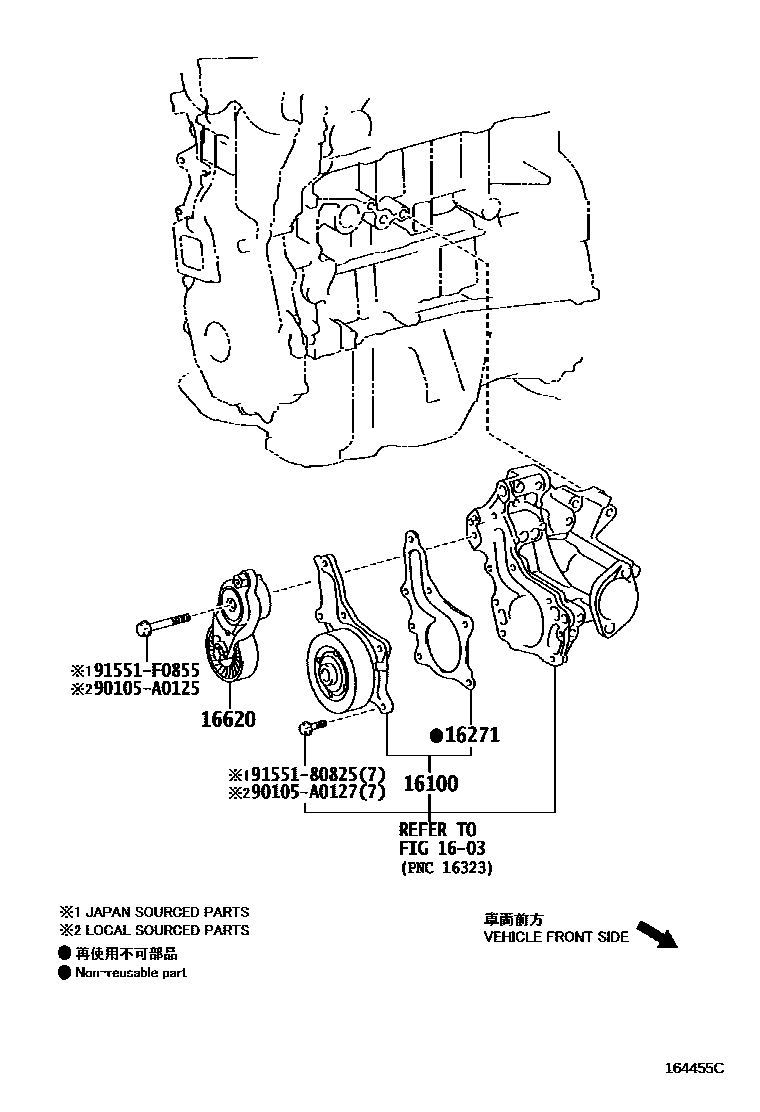

16100PUMP ASSY, ENGINE WATER

main16100-09441i2GRFE..GSV50201109-201409

main16100-09442i2GRFE..GSV50201608

main16100-09515i2ARFE..ASV50201109-201409

*212 OR *364

main16100-39515i2ARFE..ASV50201109-201409

*107

main161A0-39025i2ARFXE..AVV50201409

*364,*107

16271GASKET, WATER PUMP

main16271-0P010i2GRFE..GSV50201109-201409

(L)

main16271-31030i2GRFE..GSV50201312-201409

(J)

main16271-36010i2ARFE..ASV50201109-201409

*107,*212 OR *364

main16271-36020i2ARFXE..AVV50201309-201409

*212 OR *364

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V020i2ARFE..ASV50201109-201305

(L),*212 OR *364

main16620-0V021i2ARFE..ASV50201305-201405

(L),*212 OR *364

main16620-0V022i2ARFE..ASV50201409

(L)

main16620-31040i2GRFE..GSV50201109-201409

main16620-36010i2ARFE..ASV50201109-201402

(J),*212 OR *364; *107

main16620-36011i2ARFE..ASV50201402-201409

*107,(J),*212 OR *364

main16620-36012i2ARFE..ASV50201510-201710

(J)

90105A0125

main90105-A0125

90105A0127

main90105-A0127

9155180825

main91551-80825

91551F0855

main91551-F0855

8 parts on this diagram · 3 diagrams in section
