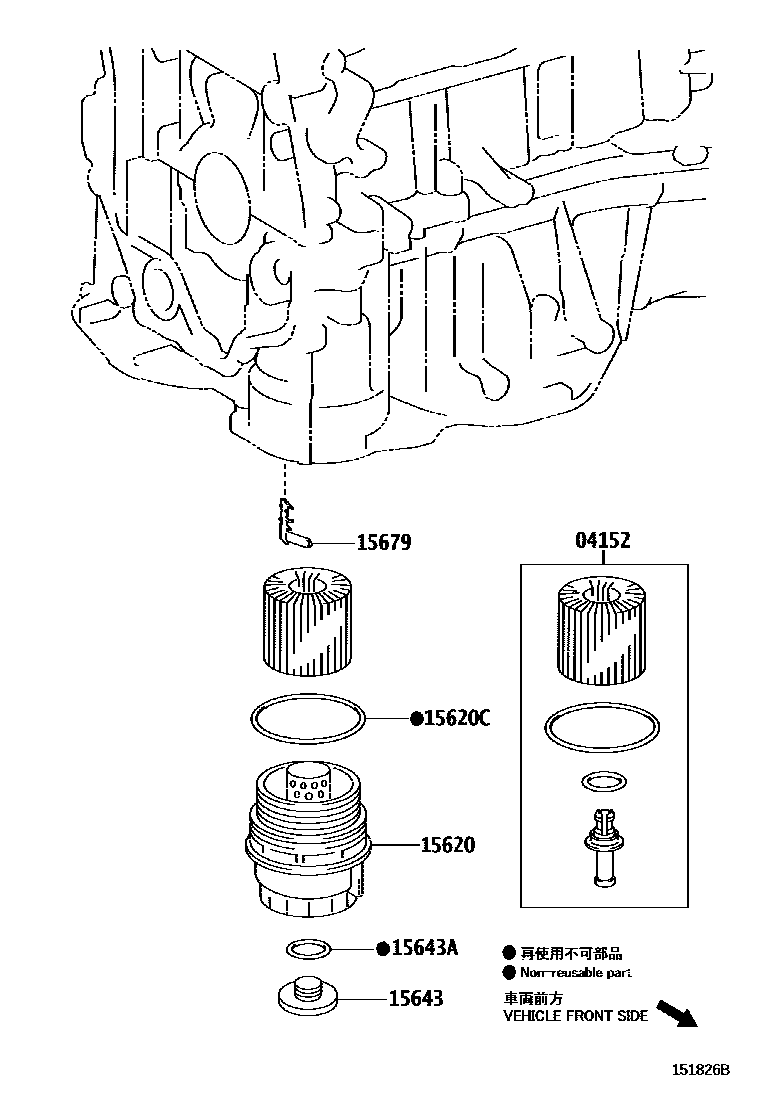

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-31090i2AR#..ASV50,AVV50201109-201409

*107

15620CAP ASSY, OIL FILTER

main15620-0V010i2AR#..ASV50,AVV50201312-201409

(L),*212 OR *364

main15620-31060i2GRFE..GSV50201409

main15620-36020i2AR#..ASV50,AVV50201409

(J),*212 OR *364

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i2AR#..ASV50,AVV50201109-201409

*107

main96723-35028i2GRFE..GSV50201109-201409

15643PLUG, OIL FILTER DRAIN

main15643-31050i2AR#..ASV50,AVV50201409

*107

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main90301-79006i2GRFE..GSV50201409

main96723-35028i2AR#..ASV50,AVV50201109-201409

*107

15679CLIP, OIL FILTER BRACKET

main15679-37010i2AR#..ASV50,AVV50201109-201408

*107

main15679-37011i2AR#..ASV50,AVV50201409

*107

6 parts on this diagram · 2 diagrams in section
