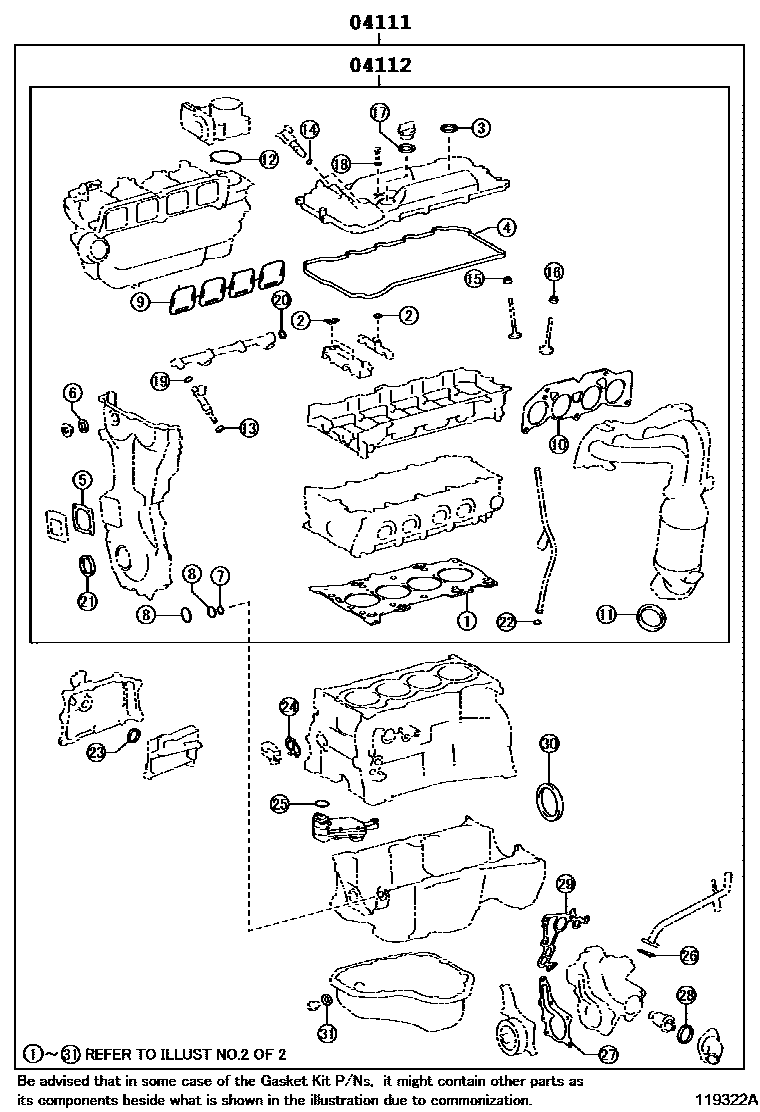

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0V090i2ARFXE..AVV50201309-201409

(L)

main04111-0V091i2ARFXE..AVV50201409

(L)

main04111-36110i2ARFXE..AVV50201110-201111

main04111-36111i2ARFXE..AVV50201111-201201

main04111-36112i2ARFXE..AVV50201201-201309

main04111-36113i2ARFXE..AVV50201309-201312

(J)

main04111-36114i2ARFXE..AVV50201312-201409

(J)

main04111-36115i2ARFXE..AVV50201409

(J)

main04111-0P181supersedes 04111-0P064i2GRFE..GSV50201409-201508

MEXICO SPEC

main04111-0P182supersedes 04111-0P065i2GRFE..GSV50201508

MEXICO SPEC

main04111-0V020supersedes 04111-36046i2ARFE..ASV50; 2ARFE..ASV50..XLE201109-201207

*212 OR *364; CALIFORNIA SPEC; KOREA SPEC

main04111-0V031i2ARFE..ASV50; 2ARFE..ASV50..LE,N201207-201409

*212 OR *364; CALIFORNIA SPEC

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0V080i2ARFXE..AVV50201309-201409

(L)

main04112-0V081i2ARFXE..AVV50201409

(L)

main04112-36090i2ARFXE..AVV50201110-201201

main04112-36091i2ARFXE..AVV50201201-201312

(J)

main04112-36092i2ARFXE..AVV50201312-201409

(J)

main04112-36093i2ARFXE..AVV50201409

(J)

main04112-0P171supersedes 04112-0P055i2GRFE..GSV50201109-201409

MEXICO SPEC

main04112-0V020i2ARFE..ASV50; 2ARFE..ASV50..XLE201109-201207

*212 OR *364; CALIFORNIA SPEC; KOREA SPEC

main04112-0V031i2ARFE..ASV50; 2ARFE..ASV50..LE,N201207-201409

*212 OR *364; CALIFORNIA SPEC

2 parts on this diagram · 6 diagrams in section
