SHORT BLOCK ASSEMBLY

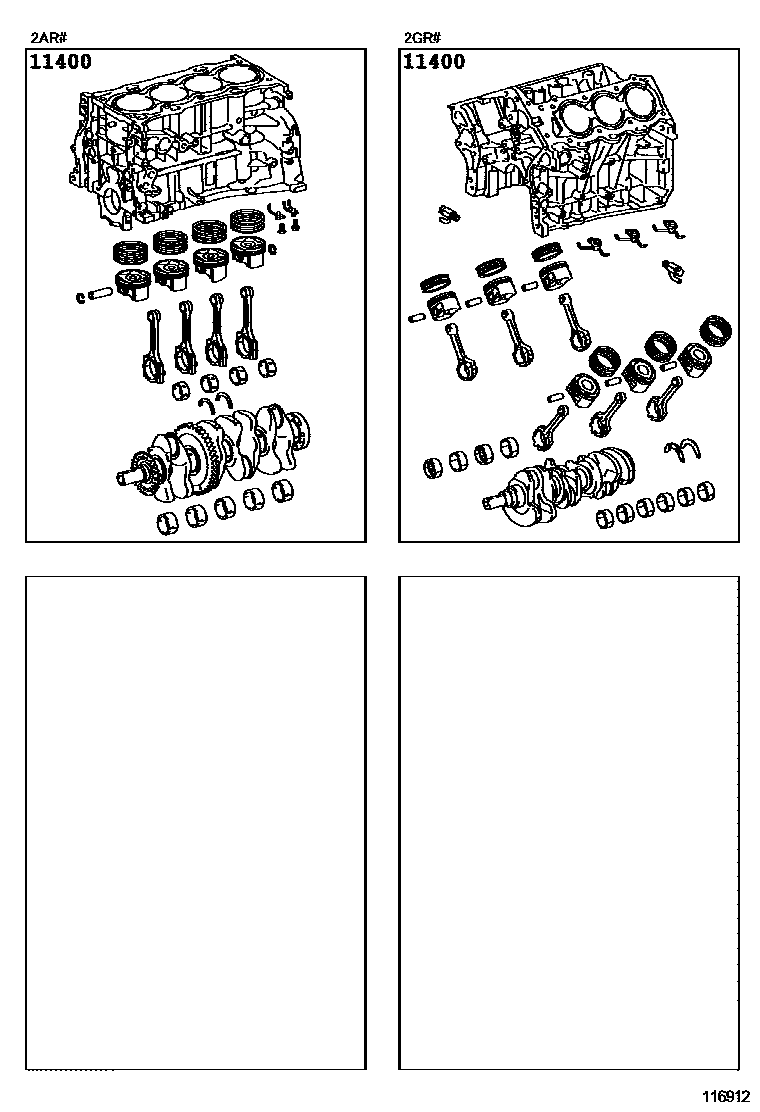

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0P050i201109-201409

main11400-0P051i201409-201509

main11400-0P052i201509-201706

main11400-0V100i201309-201409

(L)

main11400-36070i201409-201706

(J)

main11400-0V010supersedes 11400-36061i201109-201201

CALIFORNIA SPEC; KOREA SPEC

main11400-0V011i201409-201706

EXH.EMISSION CONTROL-USA BIN5 FFV

1 parts on this diagram · 1 diagram in section
