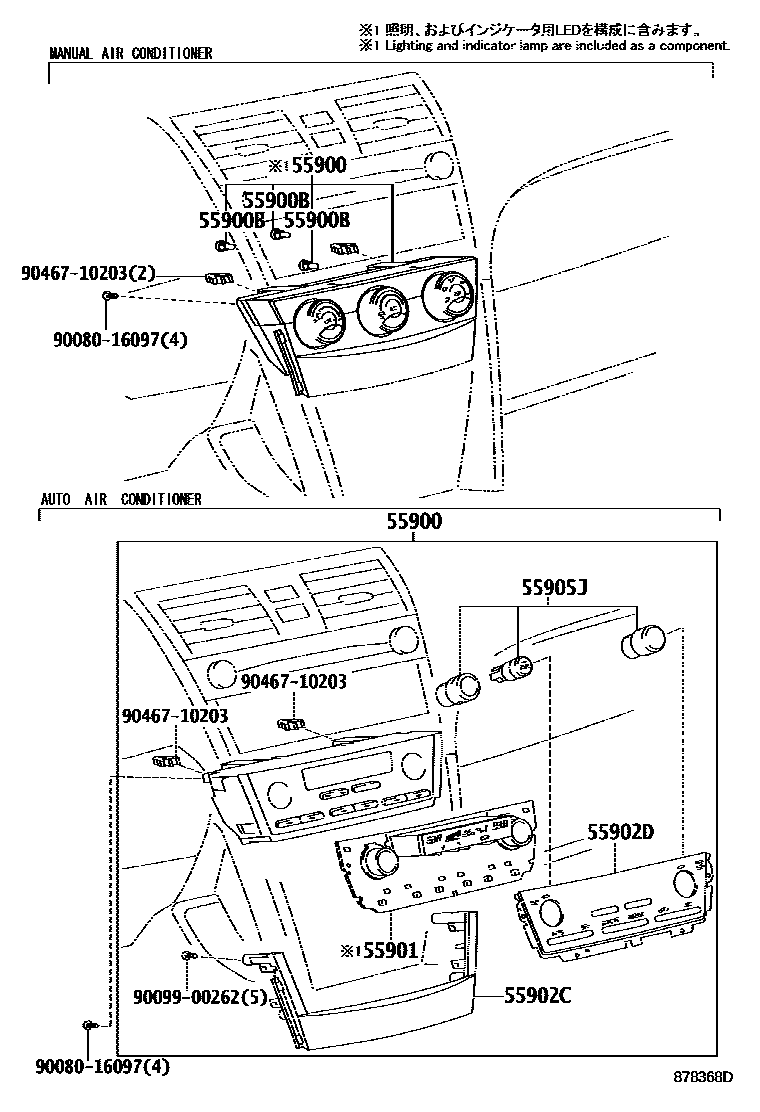

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-06161iACV40,GSV40..NAP..(LE,SE)200602-200808

main55900-06162iACV40,GSV40..NAP..(LE,SE)200809-200903

main55900-06171iACV40,GSV40..NAP..XLE200602-200707

main55900-06172iACV40,GSV40..NAP..XLE200708-200903

main55900-06280iASV40,GSV40..NAP..(LE,SE)200903-201109

main55900-06290iASV40,GSV40..NAP..XLE200903-201109

55900BBULB, AIR CONDITIONER CONTROL

main84999-06040×3iACV40,GSV40..NAP..(LE,SE)200602-200903

14V 1.4W

55901BASE SUB-ASSY, HEATER CONTROL

main55901-06050iACV40,GSV40..NAP..XLE200602-200708

main55901-06080iACV40,GSV40..NAP..XLE200708-200903

main55901-06110iASV40,GSV40..NAP..XLE200903-201109

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-06180iACV40,GSV40..NAP..XLE200602-200707

55902DPANEL SUB-ASSY, AIR CONDITIONER

main55902-06190iACV40,GSV40..NAP..XLE200602-200707

55905JKNOB SUB-ASSY, CONTROL

main55905-06190iACV40,GSV40..NAP..XLE200602-200708

main55905-06210iACV40,GSV40..NAP..XLE200708-200903

9008016097

main90080-16097

9009900262

main90099-00262

9046710203

main90467-10203

9 parts on this diagram · 3 diagrams in section
