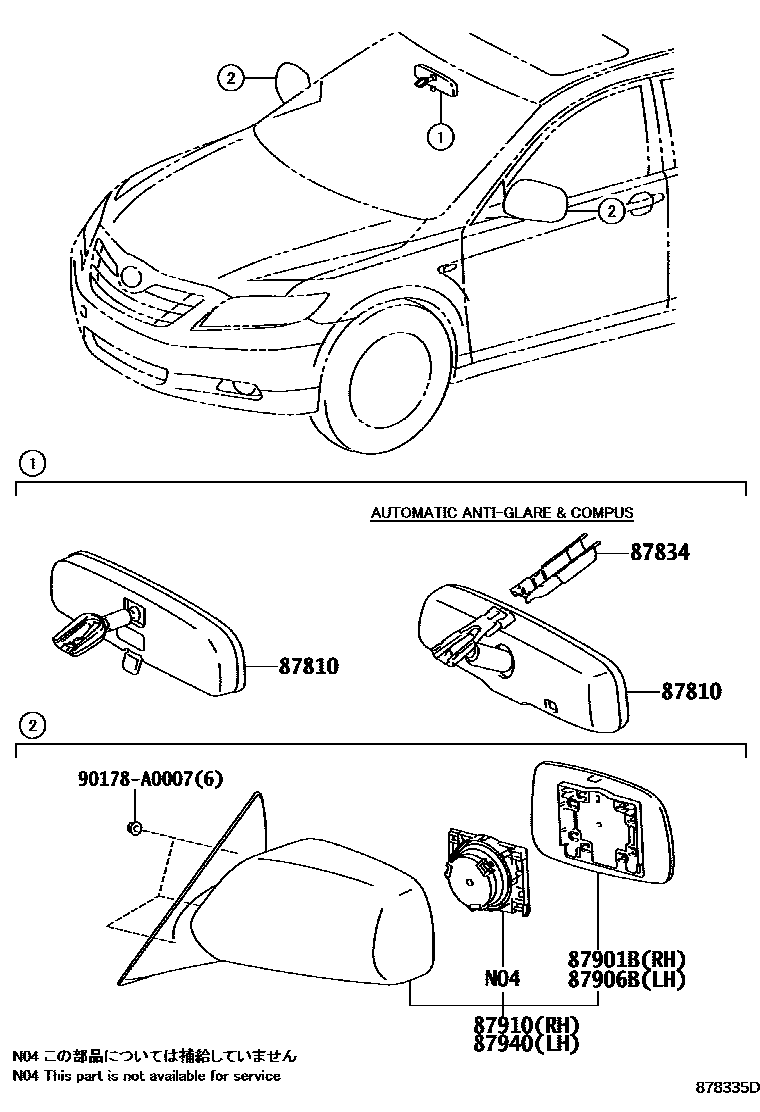

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
OUTSIDE REAR VIEW MIRROR-WITH(HEATER)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
OUTSIDE REAR VIEW MIRROR-WITH(HEATER)
87910MIRROR ASSY, OUTER REAR VIEW, RH
SILVER ME.,1D4
SILVER ME.,1F7
main87910-06200-A0supersedes 87910-06190-A0iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..XLE200903-201109
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SUPER WHITE 2,040; SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SILVER ME.,1D4; SILVER ME.,1D4
main87910-06200-B1supersedes 87910-06190-B1iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200602-200903
GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),GRAY ME.,1G3
main87910-06200-B2supersedes 87910-06190-B2iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200708-200903
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SILVER ME.,1F7; SILVER ME.,1F7
main87910-06200-C0supersedes 87910-06190-C0iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..XLE200903-201109
BLACK,202; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BLACK,202
main87910-06200-D0supersedes 87910-06190-D0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200602-200903
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),RED M.M.,3R3; RED M.M.,3R3
main87910-06200-E0supersedes 87910-06190-E0iACV40,GSV40..NAP..LE; ACV40,GSV40..NAP..XLE200602-200903
BEIGE M. M.,4Q2; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BEIGE M. M.,4Q2
main87910-06200-E1supersedes 87910-06190-E1iASV40,GSV40..NAP..LE; ASV40,GSV40..NAP..XLE200903-201109
BEIGE ME.,4T8; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BEIGE ME.,4T8
main87910-06200-G1supersedes 87910-06190-G1iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..XLE200903-201109
DK.GREEN MC.,6V4; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.GREEN MC.,6V4
main87910-06200-H0supersedes 87910-06190-H0iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..XLE200903-201109
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),TURQUOISE M.M.,776; TURQUOISE M.M.,776
main87910-06200-J0supersedes 87910-06190-J0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200602-200903
LT.BLUE ME.,8S4; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),LT.BLUE ME.,8S4
main87910-06200-J1supersedes 87910-06190-J1iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200602-200903
DK.BLUE MC.,8T5; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.BLUE MC.,8T5
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-06200-A0supersedes 87940-06190-A0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200602-200903
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SUPER WHITE 2,040; SUPER WHITE 2,040
main87940-06200-B0supersedes 87940-06190-B0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200602-200708
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SILVER ME.,1D4; SILVER ME.,1D4
main87940-06200-B1supersedes 87940-06190-B1iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200602-200903
GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),GRAY ME.,1G3
main87940-06200-B2supersedes 87940-06190-B2iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..XLE200903-201109
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SILVER ME.,1F7; SILVER ME.,1F7
main87940-06200-C0supersedes 87940-06190-C0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200602-200903
BLACK,202; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BLACK,202
main87940-06200-D0supersedes 87940-06190-D0iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..XLE200903-201109
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),RED M.M.,3R3; RED M.M.,3R3
main87940-06200-E0supersedes 87940-06190-E0iACV40,GSV40..NAP..LE; ACV40,GSV40..NAP..XLE200602-200903
BEIGE M. M.,4Q2; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BEIGE M. M.,4Q2
main87940-06200-E1supersedes 87940-06190-E1iASV40,GSV40..NAP..LE; ASV40,GSV40..NAP..XLE200903-201109
BEIGE ME.,4T8; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BEIGE ME.,4T8
main87940-06200-G1supersedes 87940-06190-G1iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..XLE200903-201109
DK.GREEN MC.,6V4; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.GREEN MC.,6V4
main87940-06200-H0supersedes 87940-06190-H0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200602-200903
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),TURQUOISE M.M.,776; TURQUOISE M.M.,776
main87940-06200-J0supersedes 87940-06190-J0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200602-200903
LT.BLUE ME.,8S4; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),LT.BLUE ME.,8S4
main87940-06200-J1supersedes 87940-06190-J1iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..XLE200602-200903
DK.BLUE MC.,8T5; OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.BLUE MC.,8T5
90178A0007
main90178-A0007
7 parts on this diagram · 1 diagram in section
