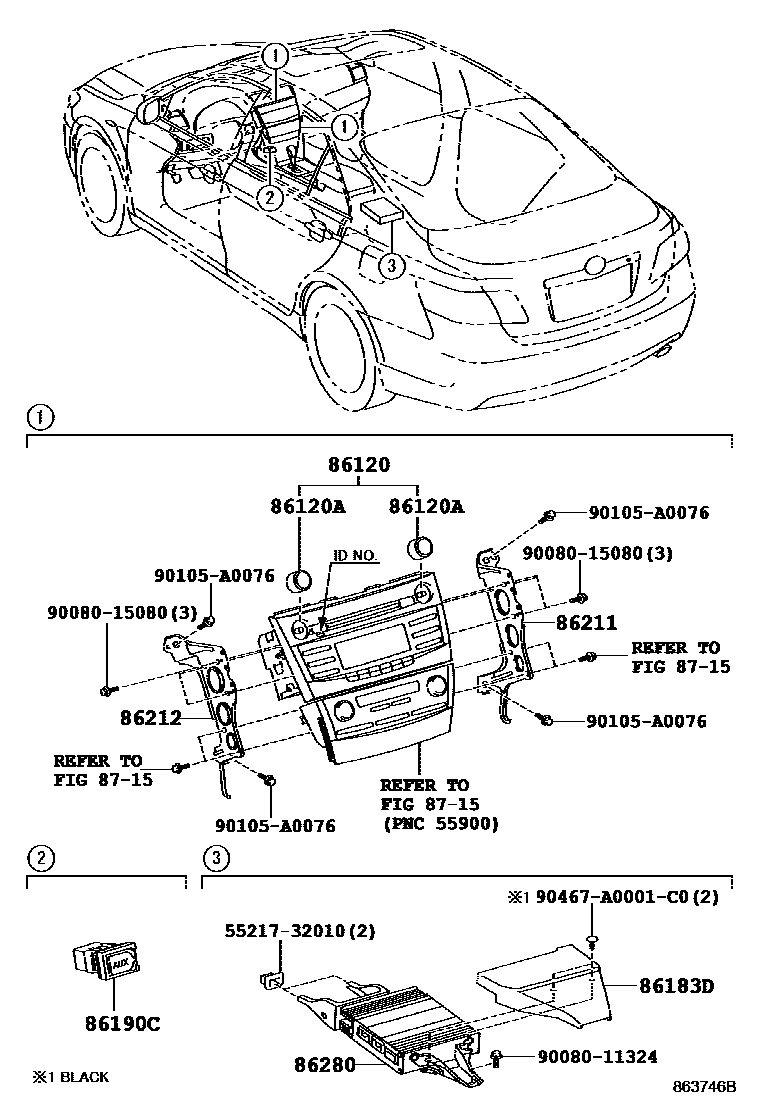

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
MATSUSHITA,ID=A51862; MATSUSHITA,ID=A51862,AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; MATSUSHITA,ID=A51862,AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM
FUJITSU TEN,ID=11815; FUJITSU TEN,ID=11815,AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM
FUJITSU TEN,ID=11832; FUJITSU TEN,ID=11832,AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM
FUJITSU TEN,ID=11851; FUJITSU TEN,ID=11851,AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM
MATSUSHITA,ID=A51823; MATSUSHITA,ID=A51823,AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; MATSUSHITA,ID=A51823,AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM
main86120-06490supersedes 86120-06500iASV40,GSV40..NAP..6FC..(LE,SE); ASV40,GSV40..NAP..XLE200903-201109
FUJITSU TEN,ID=11847; FUJITSU TEN,ID=11847,AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM
FUJITSU TEN,ID=11848,CANADA SPEC; FUJITSU TEN,ID=11848,CANADA SPEC&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM
PANASONIC,ID=A51888,AUDIO-CD,6SPEAKER,BLUETOOTH
PANASONIC,ID=A51897,CANADA SPEC&AUDIO-CD,6SPEAKER,BLUETOOTH
86120AKNOB, RADIO RECEIVER SWITCH
86183DCOVER, AUDIO AMPLIFIER
AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM
86190CADAPTER ASSY, STEREO JACK, NO.1
main86190-0E030supersedes 86190-02020iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..6FC..(LE,SE); ASV40,GSV40..NAP..6FC..SE; ASV40,GSV40..NAP..XLE200903-201109
AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM; AUDIO-AVN,8SPEAKER,PREMIUM SYSTEM; AUDIO-CD,6SPEAKER,BLUETOOTH
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86280AMPLIFIER ASSY, STEREO COMPONENT
AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM
main86280-0W391iASV40,GSV40..NAP..6FC..(LE,SE); ASV40,GSV40..NAP..6FC..SE; ASV40,GSV40..NAP..XLE200903-201109
AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM; AUDIO-AVN,8SPEAKER,PREMIUM SYSTEM
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5521732010STRIP, DASH PANEL SILENCER FINISH
main55217-32010
9008011324
main90080-11324
9008015080
main90080-15080
90105A0076
main90105-A0076
90467A0001C0
main90467-A0001C0
13 parts on this diagram · 3 diagrams in section
