ANTI-THEFT DEVICE

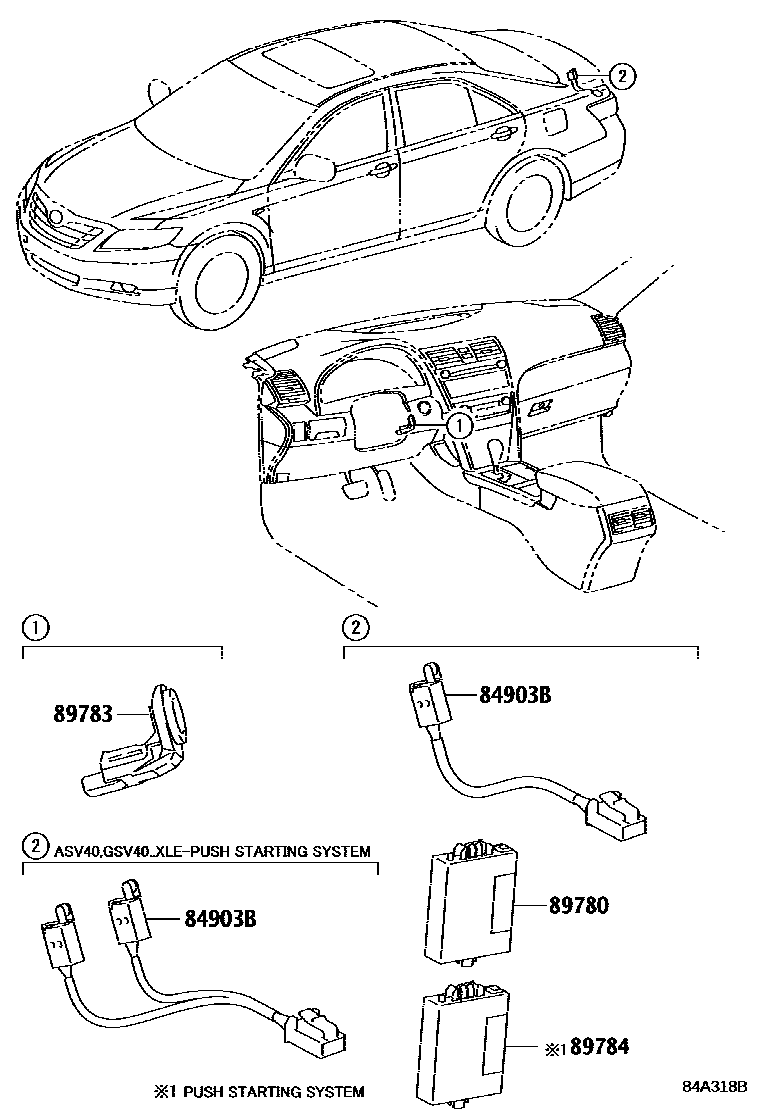

Parts diagram

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-AA010i200602-200903

ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER)

main84903-33160i200903-201109

STARTING SYSTEM-PUSH BUTTON; STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH

main84903-33170i200602-200903

STARTING SYSTEM-PUSH BUTTON

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-06010i200602-200708

main89780-06011i200709-200903

main89780-06050i201009-201109

89783AMPLIFIER, TRANSPONDER KEY

main89783-06020i200602-200903

main89783-06021i201005-201109

89784COMPUTER, IMMOBILIZER CODE

main89784-06010i200602-200605

STARTING SYSTEM-PUSH BUTTON

main89784-06011i200903-201109

STARTING SYSTEM-PUSH BUTTON

4 parts on this diagram · 1 diagram in section
