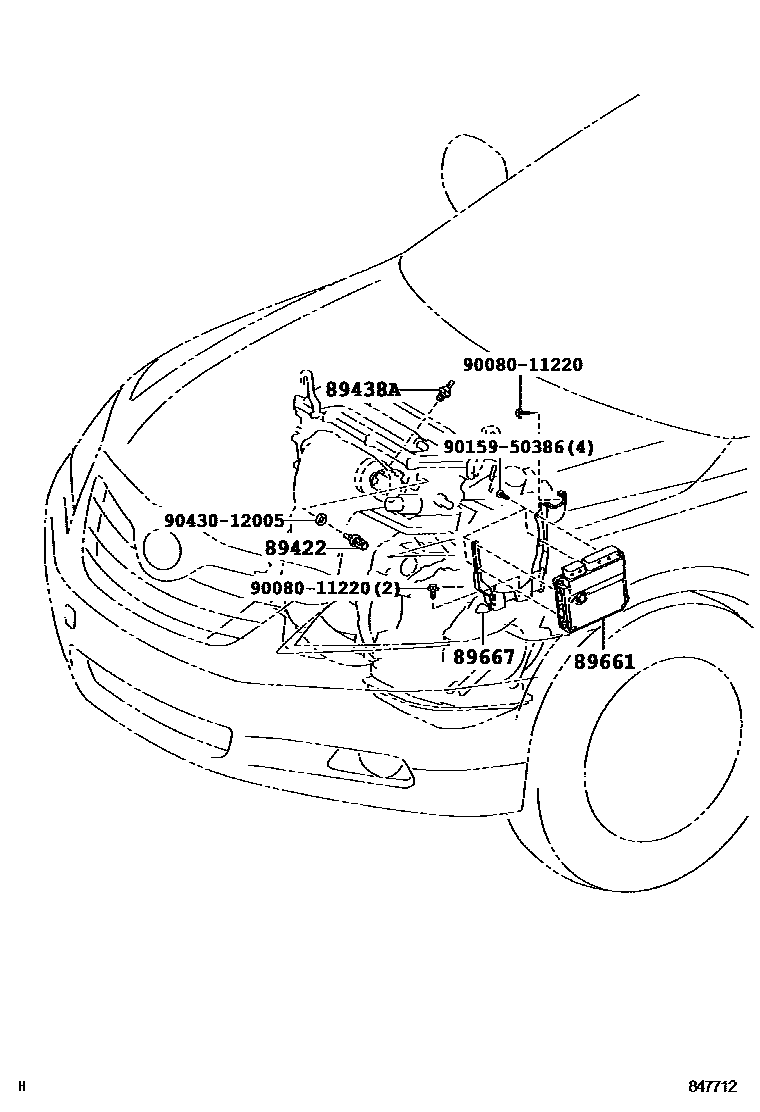

ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-06010i200602-200903

(L)

main89422-33030i200602-200903

(J)

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010i200602-200903

89661COMPUTER, ENGINE CONTROL

main89661-06C20i200602-200604

main89661-06C21i200605-200708

main89661-06C50i200602-200708

main89661-06G20i200708-200805

main89661-06G21i200806-200903

main89661-06G50i200708-200709

main89661-06G51i200710-200903

main89661-06J10i200903-200912

main89661-06J11i201001-201101

main89661-06J12i201102-201109

main89661-06J20i200904-200912

main89661-06J21i201001-201109

main89661-06J50i200903-200912

main89661-06J51i201001-201109

main89661-06C30i200602-200708

MEXICO SPEC

main89661-06C60i200602-200609

MEXICO SPEC

main89661-06C61i200610-200708

MEXICO SPEC

main89661-06C70supersedes 89661-06G11i200602-200609

CALIFORNIA SPEC

main89661-06C71supersedes 89661-06C41i200610-200708

CALIFORNIA SPEC

main89661-06G30i200708-200805

MEXICO SPEC

main89661-06G31i200806-200903

MEXICO SPEC

main89661-06G40supersedes 89661-06G10i200708-200805

CALIFORNIA SPEC

main89661-06G41supersedes 89661-06G11i200806-200903

CALIFORNIA SPEC

main89661-06G60i200708-200903

MEXICO SPEC

main89661-06J30i200903-201109

MEXICO SPEC

main89661-06J40i200903-200912

CALIFORNIA SPEC

main89661-06J41i201001-201008

CALIFORNIA SPEC

main89661-06J42i201009-201109

CALIFORNIA SPEC

main89661-06J60i200903-201109

MEXICO SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-06100i200903-201109

main89667-06110i200903-201109

9008011220

main90080-11220

9015950386

main90159-50386

9043012005

main90430-12005

7 parts on this diagram · 3 diagrams in section
