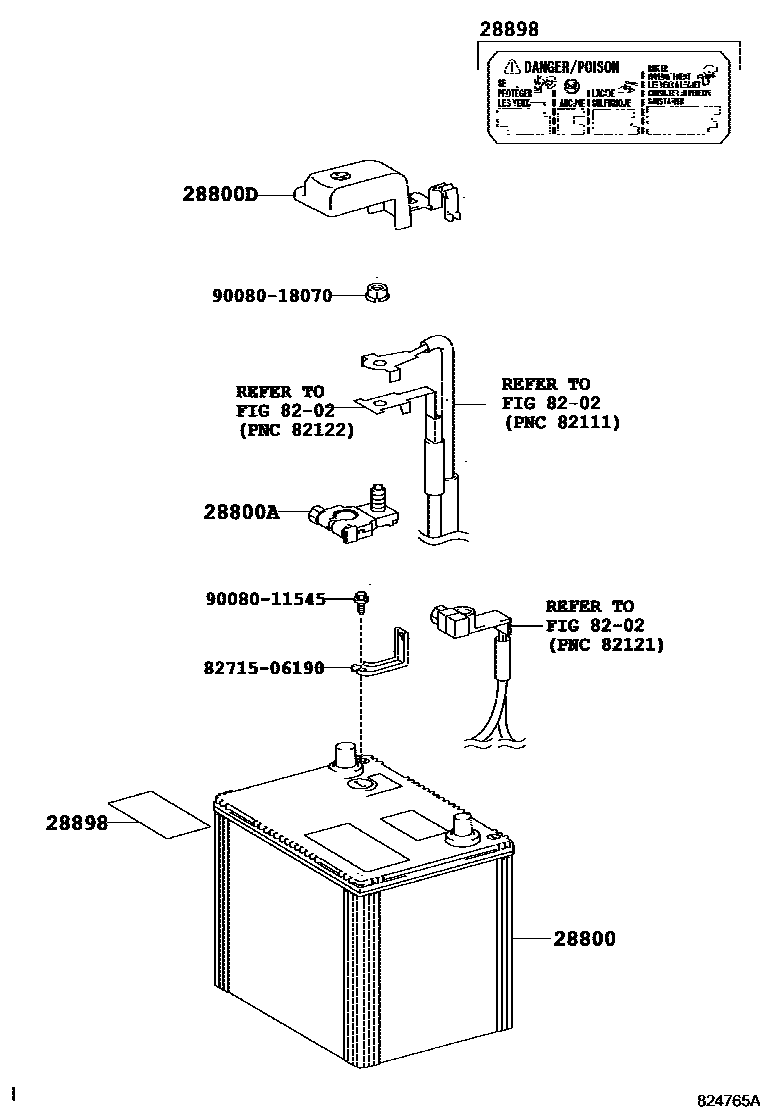

BATTERY & BATTERY CABLE

28800BATTERY

main28800-03044i2AZFE,2GRFE..ACV40,GSV40..NAP200602-200903

80D26L,JOHNSON

main28800-AA041i2AZFE,2GRFE..ACV40,GSV40..NAP200602-200903

80D26L,EXIDE

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2AZFE,2GRFE..ACV40,GSV40..NAP200602-200903

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-06040i2AZFE,2GRFE..ACV40,GSV40..NAP200602-200903

28898PLATE, BATTERY

main28897-AA010i2AZFE,2GRFE..ACV40,GSV40..NAP200602-200610

CANADA SPEC

8202WIRING & CLAMP

→ Go to FIG 82-02

8271506190BRACKET,WIRING HARNESS CLAMP

main82715-06190

9008011545

main90080-11545

9008018070

main90080-18070

8 parts on this diagram · 1 diagram in section
