ARMREST & VISOR

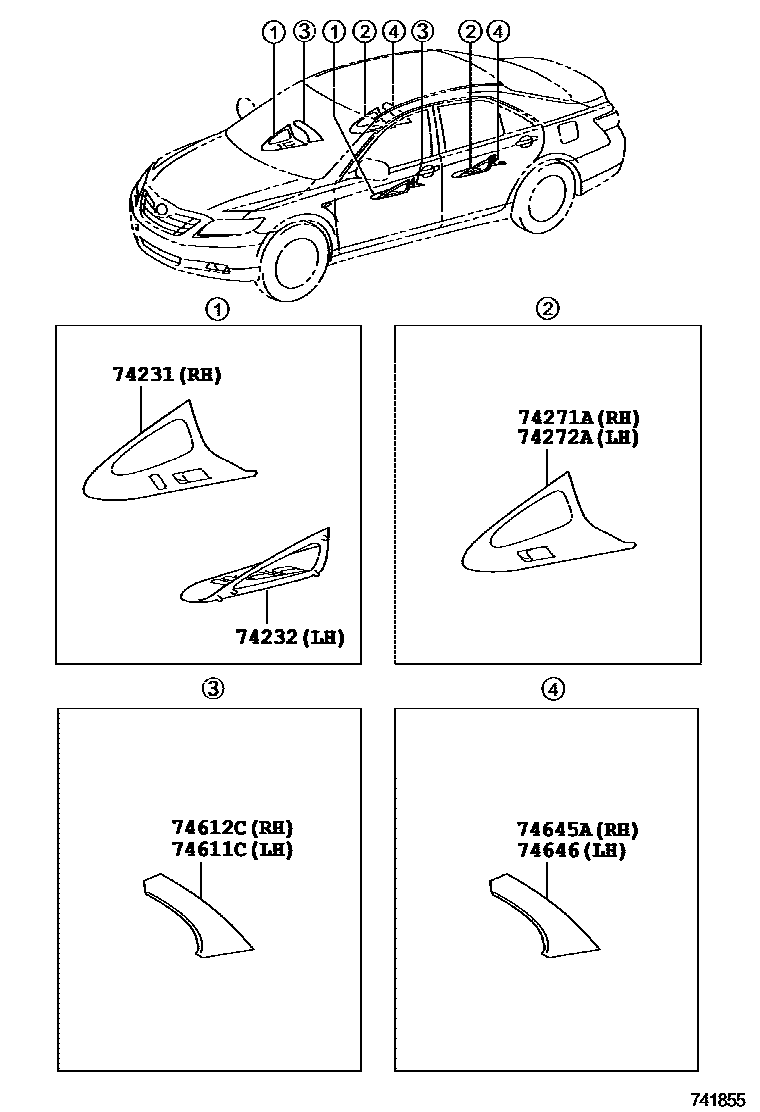

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-06160-E0i200602-200702
LT.BROWN,TRIM1#,4#
main74231-06161-E1i200903-201109
BROWN,TRIM1#,4#
main74231-06170-B0i200602-200903
GRAY,TRIM1#
main74231-06170-E0i200602-200903
GREGE,TRIM4#
main74231-06180-B0i200602-200903
SILVER,TRIM1#
main74231-06300-B0i200903-201109
GRAY,TRIM1#
main74231-06300-E0i200903-201109
GREGE,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-06130-B0i200903-201109
GRAY,TRIM1#
main74232-06130-E0i200903-201109
GREGE,TRIM4#
main74232-06140-B0i200903-201109
SILVER,TRIM1#
main74232-06160-E0i200602-200708
LT.BROWN,TRIM1#,4#
main74232-06161-E1i200708-200903
BROWN,TRIM1#,4#
main74232-06170-B0i200602-200903
GRAY,TRIM1#
main74232-06170-E0i200602-200903
GREGE,TRIM4#
main74232-06180-B0i200602-200903
SILVER,TRIM1#
main74232-06300-E0i200903-201109
BROWN,TRIM1#,4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-06110-E0i200602-200702
LT.BROWN,TRIM1#,4#
main74271-06111-E1i200708-200903
BROWN,TRIM1#,4#
main74271-06120-B0i200602-200903
GRAY,TRIM1#
main74271-06120-E0i200602-200903
GREGE,TRIM4#
main74271-06130-B0i200602-200903
SILVER,TRIM1#
main74271-06180-B0i200903-201109
GRAY,TRIM1#
main74271-06180-E0i200903-201109
GREGE,TRIM4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-06110-E0i200602-200702
LT.BROWN,TRIM1#,4#
main74272-06111-E1i200708-200903
BROWN,TRIM1#,4#
main74272-06120-B0i200602-200903
GRAY,TRIM1#
main74272-06120-E0i200602-200903
GREGE,TRIM4#
main74272-06130-B0i200602-200903
SILVER,TRIM1#
main74272-06180-B0i200903-201109
GRAY,TRIM1#
main74272-06180-E0i200903-201109
GREGE,TRIM4#
74611CCOVER, ASSIST GRIP, LH
main74611-06030-B0i200903-201109
GRAY,TRIM1#
main74611-06030-E0i200903-201109
GREGE,TRIM4#
main74611-06040i200903-201109
74612CCOVER, ASSIST GRIP, RH
main74612-06020-B0i200602-200903
GRAY,TRIM1#
main74612-06020-E0i200903-201109
GREGE,TRIM4#
main74612-06030i200602-200903
74645ACOVER, DOOR ASSIST GRIP, RH
main74645-06010-B0i200602-200903
GRAY,TRIM1#
main74645-06010-E0i200903-201109
GREGE,TRIM4#
main74645-06020i200903-201109
74646COVER, DOOR ASSIST GRIP, LH
main74646-06010-B0i200602-200903
GRAY,TRIM1#
main74646-06010-E0i200602-200903
GREGE,TRIM4#
main74646-06020i200602-200903

8 parts on this diagram · 2 diagrams in section
