FRONT SEAT & SEAT TRACK

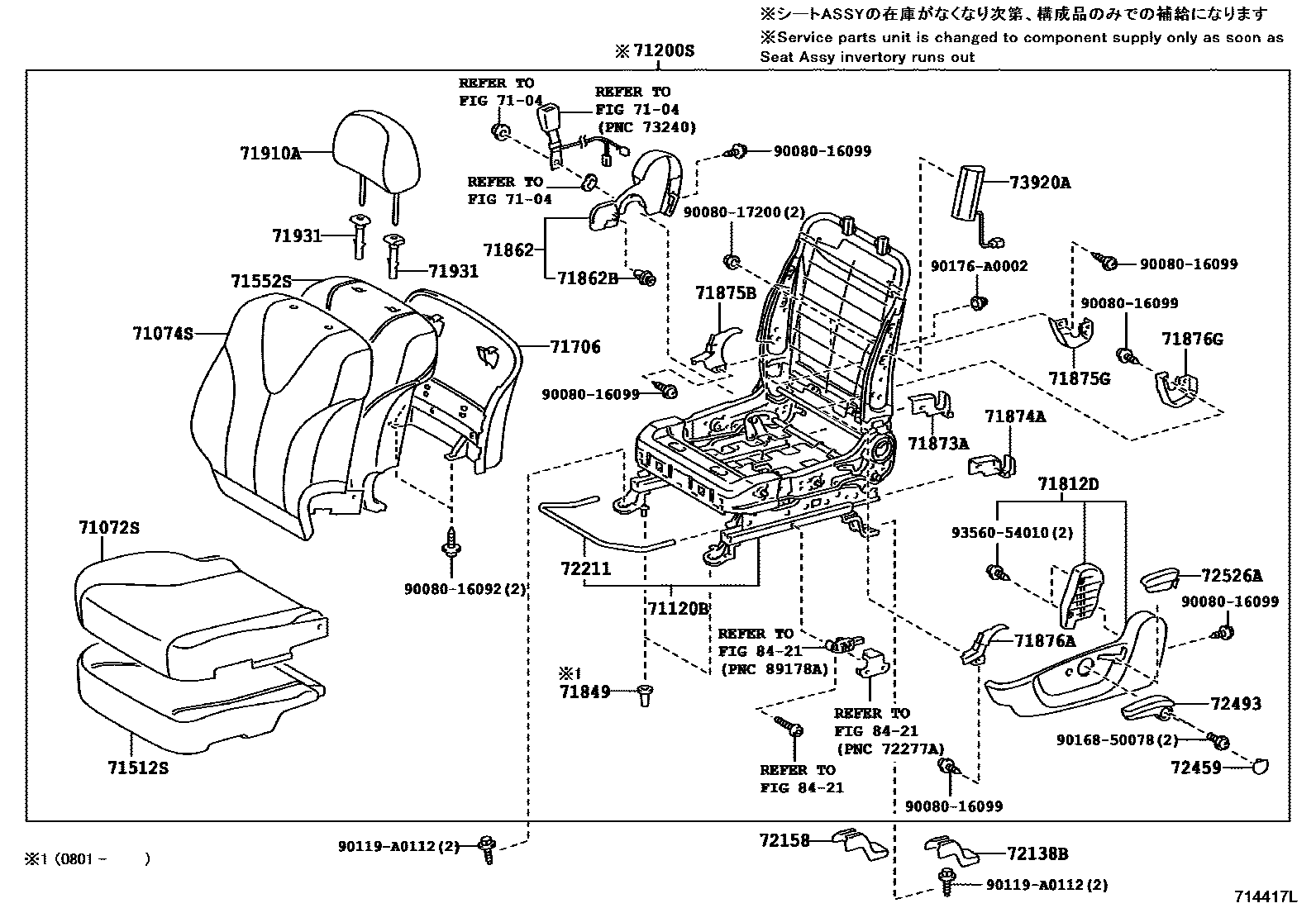

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-06490-B1i200602-200903
MD. GRAY,TRIM1#
main71072-06490-E1i200602-200903
GREGE,TRIM4#
main71072-06880-B1i200903-201109
GRAY,TRIM1#
main71072-06880-E1i200903-201109
GREGE,TRIM4#
main71072-06480-B1i200602-200903
MD. GRAY,TRIM1#
main71072-06480-E1i200602-200903
GREGE,TRIM4#
main71072-06520-B0supersedes 71072-06500-B2i200602-200903
GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71072-06520-B1supersedes 71072-06890-B2i200903-201005
GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71072-06520-E0supersedes 71072-06500-E2i200602-200903
GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71072-06520-E2supersedes 71072-06890-E2i200903-201005
GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71072-06530-B0supersedes 71072-06500-B2i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71072-06530-E0supersedes 71072-06500-E2i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71072-06531-B0supersedes 71072-06500-B2i200604-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71072-06531-B1supersedes 71072-06890-B2i200903-201005
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71072-06531-E0supersedes 71072-06500-E2i200604-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71072-06531-E2supersedes 71072-06890-E2i200903-201005
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71072-06540-B0supersedes 71072-06510-B0i200602-200903
POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM15
main71072-06540-B1supersedes 71072-06510-B1i200602-200903
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71072-06540-B2supersedes 71072-06510-B2i200903-201005
POWER SEAT & LEATHER PACKAGE,DK. GRAY,TRIM15
main71072-06540-B3supersedes 71072-06510-B3i200903-201005
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71072-06550-B0i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM15
main71072-06550-B1i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71072-06551-B0i200604-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK. GRAY,TRIM15
main71072-06551-B1i200604-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71072-06551-B2i200903-201005
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK. GRAY,TRIM15
main71072-06551-B3i200903-201005
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71072-06870-B1i200903-201109
GRAY,TRIM1#
main71072-06870-E1i200903-201109
GREGE,TRIM4#
main71072-06B70-B0supersedes 71072-06890-B2i201006-201109
GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71072-06B70-E0supersedes 71072-06890-E2i201006-201109
GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71072-06B80-B0supersedes 71072-06890-B2i201006-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71072-06B80-E0supersedes 71072-06B70-E0i201006-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71072-06B90-B0supersedes 71072-06510-B2i201006-201109
POWER SEAT & LEATHER PACKAGE,DK. GRAY,TRIM15
main71072-06B90-B1supersedes 71072-06510-B3i201006-201109
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71072-06C00-B0i201006-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK. GRAY,TRIM15
main71072-06C00-B1i201006-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-06440-B1i200602-200903
MD. GRAY,TRIM1#
main71074-06440-E1i200602-200903
GREGE,TRIM4#
main71074-06A20-B1i200903-201006
GRAY,TRIM1#
main71074-06A20-E1i200903-201006
GREGE,TRIM4#
main71074-06C60-B0i201006-201008
GRAY,TRIM1#
main71074-06C60-E0i201006-201008
GREGE,TRIM4#
main71074-06C61-B0i201009-201109
GRAY,TRIM1#
main71074-06C61-E0i201009-201109
GREGE,TRIM4#
main71074-06470-B0supersedes 71074-06450-B1i200602-200903
GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71074-06470-E0supersedes 71074-06450-E1i200602-200903
GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71074-06480-B0supersedes 71074-06D31-B0i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71074-06480-E0supersedes 71074-06450-E1i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71074-06481-B0supersedes 71074-06450-B1i200604-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71074-06481-E0supersedes 71074-06D31-E0i200604-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71074-06490-B0supersedes 71074-06460-B0i200602-200903
POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM15
main71074-06490-B1supersedes 71074-06460-B1i200602-200903
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71074-06500-B0i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM15
main71074-06500-B1i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71074-06501-B0i200604-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK. GRAY,TRIM15
main71074-06501-B1i200604-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71074-06A50-B1supersedes 71074-06C71-B0i200903-200910
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71074-06A50-E1supersedes 71074-06C71-E0i200903-200910
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71074-06A60-B1supersedes 71074-06D31-B0i200903-201006
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71074-06A60-E1supersedes 71074-06C71-E0i200903-201006
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71074-06A70-B2supersedes 71074-06C81-B0i200903-201006
POWER SEAT & LEATHER PACKAGE,DK. GRAY,TRIM15
main71074-06A70-B3supersedes 71074-06C81-B1i200903-201006
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71074-06A80-B2i200903-201006
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK. GRAY,TRIM15
main71074-06A80-B3i200903-201006
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71074-06C90-B0supersedes 71074-06C71-B0i200910-201005
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71074-06C90-E0supersedes 71074-06C71-E0i200910-201005
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71074-06D30-B0supersedes 71074-06C71-B0i201006-201008
GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71074-06D30-E0supersedes 71074-06C71-E0i201006-201008
GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71074-06D31-B0supersedes 71074-06C71-B0i201009-201109
GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71074-06D31-E0supersedes 71074-06C71-E0i201009-201109
GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71074-06D40-B0supersedes 71074-06C71-B0i201006-201008
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71074-06D40-E0supersedes 71074-06C71-E0i201006-201008
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71074-06D41-B0supersedes 71074-06C71-B0i201009-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71074-06D41-E0supersedes 71074-06D31-E0i201009-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71074-06D50-B0supersedes 71074-06C81-B0i201006-201008
POWER SEAT & LEATHER PACKAGE,DK. GRAY,TRIM15
main71074-06D50-B1supersedes 71074-06C81-B1i201006-201008
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71074-06D51-B0supersedes 71074-06C81-B0i201009-201109
POWER SEAT & LEATHER PACKAGE,DK. GRAY,TRIM15
main71074-06D51-B1supersedes 71074-06C81-B1i201009-201109
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71074-06D60-B0i201006-201008
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK. GRAY,TRIM15
main71074-06D60-B1i201006-201008
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71074-06D61-B0i201009-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK. GRAY,TRIM15
main71074-06D61-B1i201009-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-06020i200602-200801
main71120-06021i200801-200903
main71120-06030i200602-200801
main71120-06031i200801-200903
main71120-06040i200602-200801
main71120-06041i200801-200903
main71120-06050i200602-200801
main71120-06051i200801-200903
main71120-06100i200903-201109
main71120-06110i200903-201109
main71120-06120i200903-201109
main71120-06130i200903-201109
main71120-06010i200602-200801
main71120-06011i200801-200903
main71120-06090i200903-201109
71200SSEAT ASSY, FRONT LH
main71200-06630-B1i200903-201006
GRAY,TRIM1#
main71200-06630-E1i200903-201006
GREGE,TRIM4#
main71200-06A40-B3i200602-200604
GRAY,TRIM1#
main71200-06A40-B4i200604-200612
GRAY,TRIM1#
main71200-06A40-E3i200602-200604
GREGE,TRIM4#
main71200-06A40-E4i200604-200612
GREGE,TRIM4#
main71200-06A41-B1i200612-200712
GRAY,TRIM1#
main71200-06A41-E1i200612-200712
GREGE,TRIM4#
main71200-06A42-B0i200801-200903
GRAY,TRIM1#
main71200-06A42-E0i200801-200903
GREGE,TRIM4#
main71200-06G00-B2i200602-200604
GRAY,TRIM1#
main71200-06G00-B3i200604-200612
GRAY,TRIM1#
main71200-06G00-E2i200602-200604
GREGE,TRIM4#
main71200-06G00-E3i200604-200612
GREGE,TRIM4#
main71200-06G01-B1i200612-200712
GRAY,TRIM1#
main71200-06G01-E1i200612-200712
GREGE,TRIM4#
main71200-06G02-B0i200801-200903
GRAY,TRIM1#
main71200-06G02-E0i200801-200903
GREGE,TRIM4#
main71200-06K30-B1i200903-201006
GRAY,TRIM1#
main71200-06K30-E1i200903-201006
GREGE,TRIM4#
main71200-06Q50-B0i201006-201009
GRAY,TRIM1#
main71200-06Q50-E0i201006-201009
GREGE,TRIM4#
main71200-06Q51-B0i201009-201109
GRAY,TRIM1#
main71200-06Q51-E0i201009-201109
GREGE,TRIM4#
main71200-06R20-B0i201006-201009
GRAY,TRIM1#
main71200-06R20-E0i201006-201009
GREGE,TRIM4#
main71200-06R21-B0i201009-201109
GRAY,TRIM1#
main71200-06R21-E0i201009-201109
GREGE,TRIM4#
main71200-06620-B1i200903-201006
GRAY,TRIM1#
main71200-06620-E1i200903-201006
GREGE,TRIM4#
main71200-06A30-B3i200602-200604
GRAY,TRIM1#
main71200-06A30-B4i200604-200612
GRAY,TRIM1#
main71200-06A30-E3i200602-200604
GREGE,TRIM4#
main71200-06A30-E4i200604-200612
GREGE,TRIM4#
main71200-06A31-B1i200612-200712
GRAY,TRIM1#
main71200-06A31-E1i200612-200712
GREGE,TRIM4#
main71200-06A32-B0i200801-200903
GRAY,TRIM1#
main71200-06A32-E0i200801-200903
GREGE,TRIM4#
main71200-06A70-B2supersedes 71200-06Q71-B0i200602-200604
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06A70-B3supersedes 71200-06Q71-B0i200604-200612
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06A70-E3supersedes 71200-06Q71-E0i200602-200604
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06A70-E5supersedes 71200-06Q71-E0i200604-200612
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06A71-B0supersedes 71200-06Q71-B0i200612-200702
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06A71-E0supersedes 71200-06Q71-E0i200612-200702
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06A72-B2supersedes 71200-06Q71-B0i200702-200712
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06A72-E2supersedes 71200-06Q71-E0i200702-200712
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06A73-B0supersedes 71200-06Q71-B0i200801-200903
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06A73-E0supersedes 71200-06Q71-E0i200801-200903
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06A90-B4supersedes 71200-06A82-B0i200602-200604
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71200-06A90-B5supersedes 71200-06A82-B1i200602-200604
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM15
main71200-06A90-B6supersedes 71200-06A82-B0i200604-200612
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71200-06A90-B7supersedes 71200-06A82-B1i200604-200612
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM15
main71200-06A91-B2supersedes 71200-06A82-B0i200612-200712
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71200-06A91-B3supersedes 71200-06A82-B1i200612-200712
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM15
main71200-06A92-B0supersedes 71200-06A82-B0i200801-200903
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71200-06A92-B1supersedes 71200-06A82-B1i200801-200903
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM15
main71200-06B00-B4i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71200-06B00-B5i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM15
main71200-06B00-B6i200604-200612
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71200-06B00-B7i200604-200612
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM15
main71200-06B01-B0i200612-200702
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71200-06B01-B1i200612-200702
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM15
main71200-06B02-B2i200702-200712
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71200-06B02-B3i200702-200712
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM15
main71200-06B03-B0i200801-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71200-06B03-B1i200801-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM15
main71200-06G10-B1supersedes 71200-06A52-B0i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06G10-B2supersedes 71200-06A52-B0i200604-200702
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06G10-E1supersedes 71200-06A52-E0i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06G10-E2supersedes 71200-06A52-E0i200604-200702
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06G12-B1supersedes 71200-06A52-B0i200702-200712
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06G12-E1supersedes 71200-06A52-E0i200702-200712
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06G13-B0supersedes 71200-06A52-B0i200801-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06G13-E0supersedes 71200-06A52-E0i200801-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06G20-B1supersedes 71200-06A52-B0i200602-200604
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71200-06G20-B2supersedes 71200-06A52-B0i200604-200702
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71200-06G20-E1supersedes 71200-06A52-E0i200602-200604
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-06G20-E2supersedes 71200-06A52-E0i200604-200702
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-06G21-B1supersedes 71200-06A52-B0i200702-200712
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71200-06G21-E1supersedes 71200-06A52-E0i200702-200712
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-06G22-B0supersedes 71200-06A52-B0i200801-200903
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71200-06G22-E0supersedes 71200-06A52-E0i200801-200903
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-06G40-B2supersedes 71200-06G32-B0i200602-200604
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71200-06G40-B3supersedes 71200-06G32-B1i200602-200604
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM15
main71200-06G40-B4supersedes 71200-06G32-B0i200604-200612
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71200-06G40-B5supersedes 71200-06G32-B1i200604-200612
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM15
main71200-06G41-B2supersedes 71200-06G32-B0i200612-200712
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71200-06G41-B3supersedes 71200-06G32-B1i200612-200712
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM15
main71200-06G42-B0supersedes 71200-06G32-B0i200801-200903
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71200-06G42-B1supersedes 71200-06G32-B1i200801-200903
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM15
main71200-06G50-B2supersedes 71200-06G32-B0i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71200-06G50-B3supersedes 71200-06G32-B1i200602-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM15
main71200-06G50-B4supersedes 71200-06G32-B0i200604-200612
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71200-06G50-B5supersedes 71200-06G32-B1i200604-200612
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM15
main71200-06G51-B0supersedes 71200-06G32-B0i200612-200702
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71200-06G51-B1supersedes 71200-06G32-B1i200612-200702
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM15
main71200-06G52-B2supersedes 71200-06G32-B0i200702-200712
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71200-06G52-B3supersedes 71200-06G32-B1i200702-200712
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM15
main71200-06G53-B0supersedes 71200-06G32-B0i200801-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14
main71200-06G53-B1supersedes 71200-06G32-B1i200801-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM15
main71200-06J90-B1supersedes 71200-06Q71-B0i200903-201006
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06J90-E1supersedes 71200-06Q71-E0i200903-201006
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06K10-B2supersedes 71200-06Q91-B0i200903-201006
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM14
main71200-06K10-B3supersedes 71200-06Q91-B1i200903-201006
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM15
main71200-06K20-B2i200903-201006
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM14
main71200-06K20-B3i200903-201006
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM15
main71200-06K40-B1supersedes 71200-06Q61-B0i200903-201006
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06K40-E1supersedes 71200-06Q61-E0i200903-201006
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06K50-B1supersedes 71200-06Q61-B0i200903-200910
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71200-06K50-E1supersedes 71200-06Q61-E0i200903-200910
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-06K70-B2supersedes 71200-06R51-B0i200903-201006
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM14
main71200-06K70-B3supersedes 71200-06R51-B1i200903-201006
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM15
main71200-06K80-B2supersedes 71200-06R51-B0i200903-201006
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM14
main71200-06K80-B3supersedes 71200-06R51-B1i200903-201006
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM15
main71200-06Q40-B0i201006-201009
GRAY,TRIM1#
main71200-06Q40-E0i201006-201009
GREGE,TRIM4#
main71200-06Q41-B0i201009-201109
GRAY,TRIM1#
main71200-06Q41-E0i201009-201109
GREGE,TRIM4#
main71200-06Q80-B0supersedes 71200-06Q71-B0i201006-201009
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06Q80-E0supersedes 71200-06Q71-E0i201006-201009
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06Q81-B0supersedes 71200-06Q71-B0i201009-201109
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06Q81-E0supersedes 71200-06Q71-E0i201009-201109
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06R00-B0supersedes 71200-06Q91-B0i201006-201009
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM14
main71200-06R00-B1supersedes 71200-06Q91-B1i201006-201009
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM15
main71200-06R01-B0supersedes 71200-06Q91-B0i201009-201109
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71200-06R01-B1supersedes 71200-06Q91-B1i201009-201109
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM15
main71200-06R10-B0i201006-201009
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM14
main71200-06R10-B1i201006-201009
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM15
main71200-06R11-B0i201009-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM14
main71200-06R11-B1i201009-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM15
main71200-06R30-B0supersedes 71200-06Q61-B0i200910-201009
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71200-06R30-E0supersedes 71200-06Q61-E0i200910-201009
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-06R31-B0supersedes 71200-06Q61-B0i201009-201109
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71200-06R31-E0supersedes 71200-06Q61-E0i201009-201109
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-06R40-B0supersedes 71200-06Q61-B0i201006-201009
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06R40-E0supersedes 71200-06Q61-E0i201006-201009
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06R41-B0supersedes 71200-06Q61-B0i201009-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#
main71200-06R41-E0supersedes 71200-06Q61-E0i201009-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#
main71200-06R60-B0supersedes 71200-06R51-B0i201006-201009
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM14
main71200-06R60-B1supersedes 71200-06R51-B1i201006-201009
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM15
main71200-06R61-B0supersedes 71200-06R51-B0i201009-201109
POWER SEAT & LEATHER PACKAGE,DK GRAY,TRIM14
main71200-06R61-B1supersedes 71200-06R51-B1i201009-201109
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM15
main71200-06R70-B0supersedes 71200-06R51-B0i201006-201009
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM14
main71200-06R70-B1supersedes 71200-06R51-B1i201006-201009
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM15
main71200-06R71-B0supersedes 71200-06R51-B0i201009-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK GRAY,TRIM14
main71200-06R71-B1supersedes 71200-06R51-B1i201009-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM15
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-06050i200602-200903
main71512-06060i200602-200903
main71512-06040i200602-200903
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-06090i200602-200903
main71552-06100i200602-200903
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71706-06010-B0i200602-200903
DK.GRAY,TRIM15
main71706-06010-B1i200903-201109
GRAY,TRIM1#; GRAY,TRIM14
main71706-06010-E0i200903-201109
GREGE,TRIM4#
main71706-06060-B0i200903-201109
GRAY,TRIM1#
main71706-06060-E0i200903-201109
GREGE,TRIM4#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-06100-B0i200602-200903
DK.GRAY,TRIM15
main71812-06100-B1i200903-201109
GRAY,TRIM1#; GRAY,TRIM14
main71812-06100-E0i200602-200903
GREGE,TRIM4#
main71812-06090-B0i200602-200903
GRAY,TRIM1#
main71812-06090-E0i200602-200903
GREGE,TRIM4#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-0T020×2i200903-201109
main71848-33010×2i200801-200810
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-06060-B0i200602-200903
DK.GRAY,TRIM15
main71862-06060-B1i200903-201109
GRAY,TRIM1#; GRAY,TRIM14
main71862-06060-E0i200903-201109
GREGE,TRIM4#
main71862-06050-B0i200602-200903
GRAY,TRIM1#
main71862-06050-E0i200903-201109
GREGE,TRIM4#
71862BCLIP(FOR FRONT SEAT SHIELD, LH)
main67921-50050-B0i200602-200903
LT.GRAY
main71769-33020i200903-201109
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-06040i200602-200903
DRIVER & PASSENGER POWER SEAT PACKAGE; POWER SEAT & LEATHER PACKAGE; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT)
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-06080i200602-200903
main71873-06070i200602-200903
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06070i200602-200903
DRIVER & PASSENGER POWER SEAT PACKAGE; POWER SEAT & LEATHER PACKAGE; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT)
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06090i200903-201109
main71874-06080i200903-201109
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71876-AA090-B1i200602-200903
DK.GRAY,TRIM15
main71876-AA090-B6i200602-200903
GRAY,TRIM1#; GRAY,TRIM14
main71876-AA090-E1i200602-200903
GREGE,TRIM4#
main71875-06350-B1i200602-200903
GRAY,TRIM1#
main71875-06350-E0i200903-201109
GREGE,TRIM4#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71814-0E020i200602-200903
main71875-AA060i200903-201109
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-AA090-B5supersedes 71876-06380-B1i200602-200903
DRIVER & PASSENGER POWER SEAT PACKAGE,GRAY,TRIM14; GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71875-AA090-E1i200903-201109
GREGE,TRIM4#
main71876-06380-B1i200903-201109
GRAY,TRIM1#; GRAY,TRIM14
main71876-06380-E0i200903-201109
GREGE,TRIM4#
main71875-AA090-B4i200903-201109
DRIVER & PASSENGER POWER SEAT PACKAGE,DK.GRAY,TRIM15; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM15; POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM15
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71875-0E020-B2i200602-200903
DK.GRAY,TRIM15
main71875-0E020-B6i200903-201109
GRAY,TRIM1#; GRAY,TRIM14
main71875-0E020-E1i200602-200903
GREGE,TRIM4#
main71876-06380-B1i200602-200903
GRAY,TRIM1#
main71876-06380-E0i200903-201109
GREGE,TRIM4#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71813-0E020i200602-200903
main71876-AA060i200903-201109
71910AHEADREST ASSY, FRONT SEAT
main71910-06230-B1i200602-200612
GRAY,TRIM1#
main71910-06230-E1i200602-200612
GREGE,TRIM4#
main71910-06231-B2×2i200612-200903
MD. GRAY,TRIM1#
main71910-06231-E2×2i200903-201006
GREGE,TRIM4#
main71910-06250-B0×2supersedes 71910-06241-B3i200602-200612
GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71910-06250-E0×2supersedes 71910-06261-E2i200602-200612
GREGE,TRIM4#
main71910-06251-B0×2i200612-200903
GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71910-06251-B4×2supersedes 71910-06243-B3i200903-200912
GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71910-06251-E0×2i200612-200903
GREGE,TRIM4#
main71910-06251-E3×2supersedes 71910-06572-E0i200903-200912
GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71910-06252-B4×2i201001-201109
GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM14; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14
main71910-06252-E3×2i201001-201109
GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71910-06552-B0i201006-201109
MD. GRAY,TRIM1#
main71910-06552-E0i201006-201109
GREGE,TRIM4#
main71910-06250-B1×2supersedes 71910-06241-B2i200602-200612
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM15; POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM15
main71910-06251-B1supersedes 71910-06241-B2i200612-200903
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM15; POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM15
main71910-06251-B3supersedes 71910-06243-B2i200903-200912
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM15; POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM15
main71910-06252-B3supersedes 71910-06243-B2i201001-201109
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM15; POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM15
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-B4i200602-200903
W(LOCK)&W(BUTTON),DK.GRAY,TRIM15
main71930-42020-B7×2i200903-201103
W(LOCK)&W(BUTTON),GRAY,TRIM1#; W(LOCK)&W(BUTTON),GRAY,TRIM14
main71930-42020-E1×2i200903-201103
W(LOCK)&W(BUTTON),GREGE,TRIM4#
main71930-52030-B0×2i201104-201109
W(LOCK)&W(BUTTON),DK.GRAY,TRIM15
main71930-52030-B1i201104-201109
W(LOCK)&W(BUTTON),GRAY,TRIM1#; W(LOCK)&W(BUTTON),GRAY,TRIM14
main71930-52030-E0i201104-201109
W(LOCK)&W(BUTTON),GREGE,TRIM4#
main71931-42020-B4i200602-200903
W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM15
main71931-42020-B7×2i200903-201109
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#; W(LOCK)&W/O(BUTTON),GRAY,TRIM14
main71931-42020-E1i200903-201109
W(LOCK)&W/O(BUTTON),GREGE,TRIM4#
72138BCOVER, SEAT TRACK, LH
main72138-06030-B0i200602-200903
DK.GRAY,TRIM15
main72138-06030-B1i200602-200903
GRAY,TRIM1#; GRAY,TRIM14
main72138-06030-E0i200602-200903
GREGE,TRIM4#
main72138-06020-B0i200903-201109
GRAY,TRIM1#
main72138-06020-E0i200602-200903
GREGE,TRIM4#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72138-06030-B0i200602-200903
DK.GRAY,TRIM15
main72138-06030-B1i200602-200903
GRAY,TRIM1#; GRAY,TRIM14
main72138-06030-E0i200602-200903
GREGE,TRIM4#
main72158-06030-B0i200602-200903
GRAY,TRIM1#
main72158-06030-E0i200602-200903
GREGE,TRIM4#
72211HANDLE, SEAT TRACK ADJUSTING
main72211-06050i200903-201109
72459CAP, VERTICAL SEAT ADJUSTER KNOB
main72459-06010-B0i200602-200903
GRAY,TRIM1#
main72459-06010-E0i200903-201109
GREGE,TRIM4#
72493HANDLE, VERTICAL ADJUSTING, NO.2
main72494-06010-B0i200602-200903
GRAY,TRIM1#
main72494-06010-E0i200903-201109
GREGE,TRIM4#
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06020-B0i200903-201109
GRAY,TRIM1#
main72526-06020-E0i200602-200903
GREGE,TRIM4#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-06040i200602-200804
main73920-06041i200903-201109
8421AIR BAG
→ Go to FIG 84-21
9008016092
main90080-16092
9008016099
main90080-16099
9008017200
main90080-17200
90119A0112
main90119-A0112
9016850078
main90168-50078
90176A0002
main90176-A0002
9356054010
main93560-54010

38 parts on this diagram · 9 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
