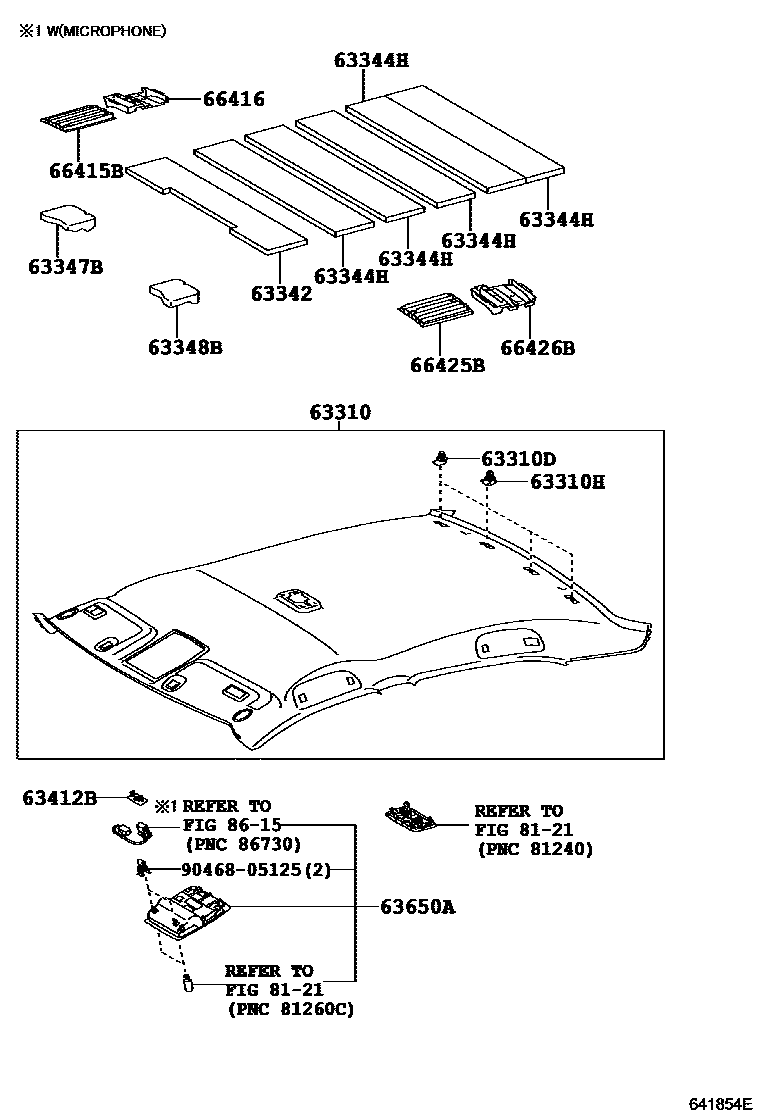

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
MD. GRAY,TRIM1#
GREGE,TRIM4#
MD. GRAY,TRIM1#
GREGE,TRIM4#
MD. GRAY,TRIM1#
GREGE,TRIM4#
MD. GRAY,TRIM1#
GREGE,TRIM4#
MOON ROOF-WITH,MD. GRAY,TRIM1#
MOON ROOF-WITH,GREGE,TRIM4#
MOON ROOF-WITH,MD. GRAY,TRIM1#
MOON ROOF-WITH,GREGE,TRIM4#
MOON ROOF-WITH,MD. GRAY,TRIM1#
MOON ROOF-WITH,GREGE,TRIM4#
MOON ROOF-WITH,MD. GRAY,TRIM1#
MOON ROOF-WITH,GREGE,TRIM4#
63310DCLIP, ROOF HEADLINING
63310HCLIP(FOR ROOF HEADLINING)
63342PAD, ROOF SILENCER, NO.2
63344HPAD, ROOF SILENCER, NO.4
63347BPAD, ROOF SIDE RAIL SILENCER, RH
63348BPAD, ROOF SIDE RAIL SILENCER, LH
63412BRETAINER, ROOF CONSOLE
63650ABOX ASSY, ROOF CONSOLE
GARAGE OPENER-WITH,GRAY,TRIM1#
GARAGE OPENER-WITH,GREGE,TRIM4#
GARAGE OPENER-WITH,GRAY,TRIM1#
GARAGE OPENER-WITH,GREGE,TRIM4#
AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM,GRAY,TRIM1#; AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM,GRAY,TRIM1#
AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM,GREGE,TRIM4#
AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM,GRAY,TRIM1#; AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM,GRAY,TRIM1#
AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM,GREGE,TRIM4#
AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#; AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#
AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4#
main63650-06061-B0supersedes 63650-06031-B0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..SE200802-200903
AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#; AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#
AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4#
MOON ROOF-WITH,GRAY,TRIM1#
MOON ROOF-WITH,GREGE,TRIM4#
MOON ROOF-WITH,GRAY,TRIM1#
MOON ROOF-WITH,GREGE,TRIM4#
MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1#
MOON ROOF-WITH&GARAGE OPENER-WITH,GREGE,TRIM4#
MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1#
MOON ROOF-WITH&GARAGE OPENER-WITH,GREGE,TRIM4#
main63650-06100-B0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..SE; ACV40,GSV40..NAP..XLE200602-200801
GARAGE OPENER-W/O,GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM,GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM,GRAY,TRIM1#
main63650-06100-E0supersedes 63650-06030-E0iACV40,GSV40..NAP..LE; ACV40,GSV40..NAP..XLE200602-200801
GARAGE OPENER-W/O,GREGE,TRIM4#; MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM,GREGE,TRIM4#
main63650-06101-B0supersedes 63650-06121-B0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..SE; ACV40,GSV40..NAP..XLE200802-200903
GARAGE OPENER-W/O,GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM,GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM,GRAY,TRIM1#
main63650-06101-E0supersedes 63650-06031-E0iACV40,GSV40..NAP..LE; ACV40,GSV40..NAP..XLE200802-200903
GARAGE OPENER-W/O,GREGE,TRIM4#; MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM,GREGE,TRIM4#
main63650-06120-B0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..SE; ACV40,GSV40..NAP..XLE200602-200801
GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#
main63650-06120-E0supersedes 63650-06030-E0iACV40,GSV40..NAP..LE; ACV40,GSV40..NAP..XLE200602-200801
GREGE,TRIM4#; MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4#
main63650-06121-B0supersedes 63650-06031-B0iACV40,GSV40..NAP..(LE,SE); ACV40,GSV40..NAP..SE; ACV40,GSV40..NAP..XLE200802-200903
GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#
main63650-06121-E0supersedes 63650-06031-E0iACV40,GSV40..NAP..LE; ACV40,GSV40..NAP..XLE200802-200903
GREGE,TRIM4#; MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4#
main63650-06280-B0iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..6FC..(LE,SE); ASV40,GSV40..NAP..6FC..SE200903-201109
AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1#; AUDIO-AVN,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1#; AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1#
AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GREGE,TRIM4#; AUDIO-CD,6SPEAKER,BLUETOOTH,GREGE,TRIM4#
main63650-06290-B0iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..6FC..(LE,SE); ASV40,GSV40..NAP..6FC..SE200903-201109
AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#; AUDIO-AVN,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#; AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GRAY,TRIM1#
AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4#; AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GREGE,TRIM4#
main63650-06300-B0supersedes 63650-06310-B0iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..6FC..(LE,SE); ASV40,GSV40..NAP..6FC..SE; ASV40,GSV40..NAP..XLE200903-201109
GARAGE OPENER-WITHOUT,GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-AVN,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1#
main63650-06300-E0supersedes 63650-06031-E0iASV40,GSV40..NAP..6FC..LE; ASV40,GSV40..NAP..LE; ASV40,GSV40..NAP..XLE200903-201109
GARAGE OPENER-WITHOUT,GREGE,TRIM4#; MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GREGE,TRIM4#; MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GREGE,TRIM4#
main63650-06310-B0iASV40,GSV40..NAP..(LE,SE); ASV40,GSV40..NAP..6FC..(LE,SE); ASV40,GSV40..NAP..6FC..SE; ASV40,GSV40..NAP..XLE200903-201109
GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-AVN,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1#; MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GRAY,TRIM1#
main63650-06310-E0iASV40,GSV40..NAP..6FC..LE; ASV40,GSV40..NAP..LE; ASV40,GSV40..NAP..XLE200903-201109
GREGE,TRIM4#; MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4#; MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GREGE,TRIM4#
66415BSPACER, SIDE RAIL, REAR NO.2 RH
MOON ROOF-WITH
66416SPACER, SIDE RAIL, REAR NO.3 RH
66425BSPACER, SIDE RAIL, REAR NO.2 LH
MOON ROOF-WITH
66426BSPACER, SIDE RAIL, REAR NO.3 LH
8121INTERIOR LAMP
8615TELEPHONE & MAYDAY
9046805125
main90468-05125
16 parts on this diagram · 3 diagrams in section
