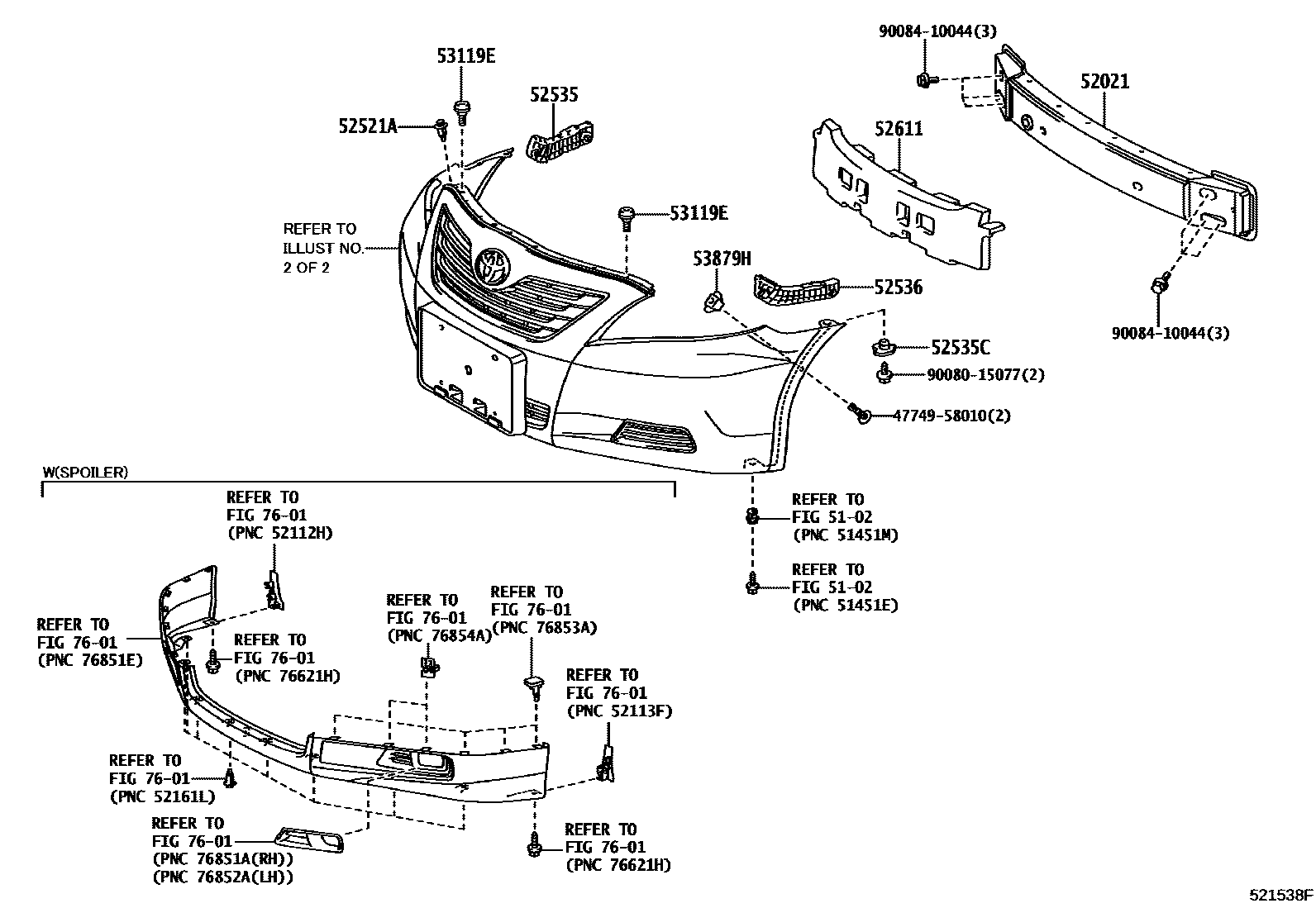

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-06040iACV40,GSV40..NAP200602-200807

CANADA SPEC

sub52021-06041

main52021-06041iACV40,GSV40..NAP200808-200903

CANADA SPEC

main52021-06041iASV40,GSV40..NAP200903-201109

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-08180iACV40,GSV40..NAP200602-201109

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06030iACV40,GSV40..NAP200602-201109

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iACV40,GSV40..NAP200602-201109

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-06020iACV40,GSV40..NAP200602-201109

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06050iACV40,GSV40..NAP200602-200903

main52611-06130iASV40,GSV40..NAP200903-201109

53119EPROTECTOR, RADIATOR GRILLE

main53119-20120iACV40,GSV40..NAP200602-201109

53879HRETAINER, FRONT FENDER LINER

main53879-58010iACV40,GSV40..NAP200602-201109

7601

4774958010CLIP, PIN HOLD

main47749-58010

9008015077

main90080-15077

9008410044

main90084-10044

13 parts on this diagram · 4 diagrams in section
