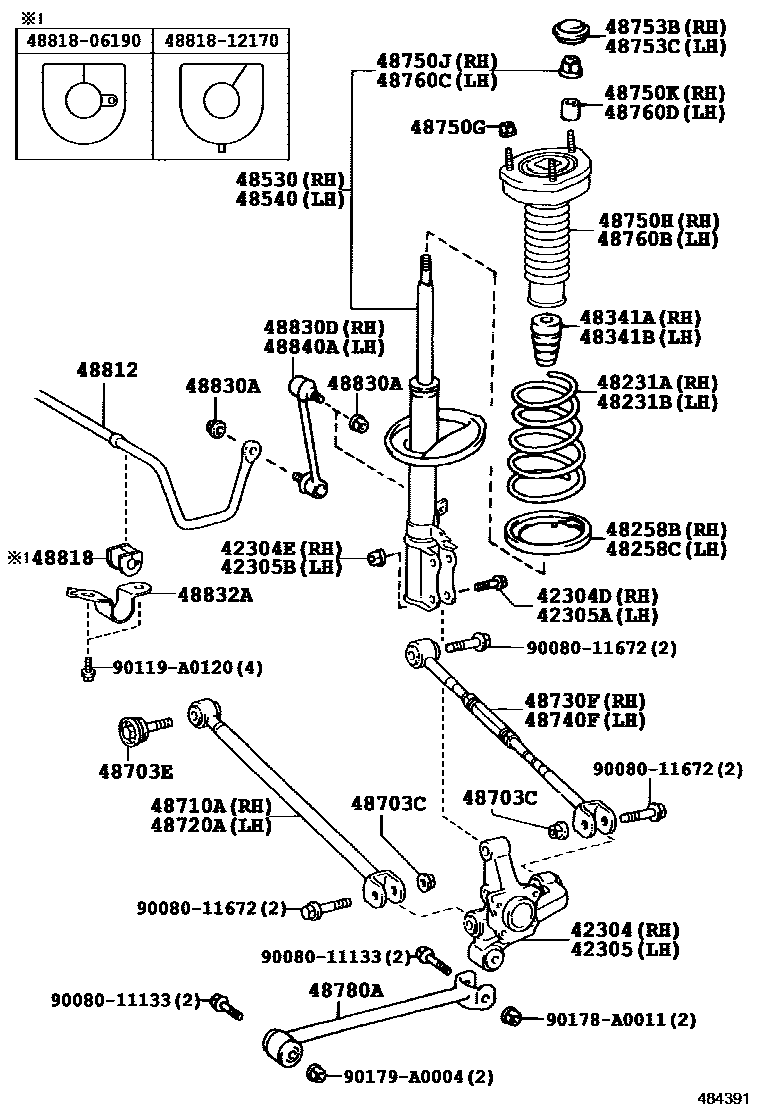

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-06100iACV40,GSV40..NAP200602-200903

(L)

main42304-48010iACV40,GSV40..NAP200602-200903

(J)

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90080-10398×2iACV40,GSV40..NAP200602-200903

42304ENUT (FOR REAR AXLE CARRIER RH)

main90080-17213×2iASV40,GSV40..NAP200903-201109

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-06100iACV40,GSV40..NAP200602-200903

(L)

main42305-48010iACV40,GSV40..NAP200602-200903

(J)

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90080-10398×2iACV40,GSV40..NAP200602-200903

42305BNUT (FOR REAR AXLE CARRIER LH)

main90080-17213×2iACV40,GSV40..NAP200602-200903

48231ASPRING, COIL, REAR RH

main48231-06380iACV40,GSV40..NAP..(LE,XLE)200602-200807

main48231-06381iASV40,GSV40..NAP..(LE,XLE)200903-201109

main48231-06390iACV40,GSV40..NAP..SE200602-200807

main48231-06391iASV40,GSV40..NAP..SE200903-201109

main48231-06400iGSV40..NAP..XLE;ACV40..NAP..5FC..(LE,XLE)200602-200807

MEXICO SPEC

main48231-06401iGSV40..NAP..XLE;ASV40..NAP..6FC..(LE,XLE)200903-201109

MEXICO SPEC

48231BSPRING, COIL, REAR LH

main48231-06380iACV40,GSV40..NAP..(LE,XLE)200602-200807

main48231-06381iASV40,GSV40..NAP..(LE,XLE)200903-201109

main48231-06390iACV40,GSV40..NAP..SE200602-200807

main48231-06391iASV40,GSV40..NAP..SE200903-201109

main48231-06400iGSV40..NAP..XLE;ACV40..NAP..5FC..(LE,XLE)200602-200807

MEXICO SPEC

main48231-06401iGSV40..NAP..XLE;ASV40..NAP..6FC..(LE,XLE)200903-201109

MEXICO SPEC

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-32021iACV40,GSV40..NAP200802-200903

(J)

main48258-AA010iACV40,GSV40..NAP200602-200802

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06060iACV40,GSV40..NAP200802-200806

(L)

main48258-33020iACV40,GSV40..NAP200802-200903

(J)

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-AA010iACV40,GSV40..NAP200602-200903

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-AA010iACV40,GSV40..NAP200602-200903

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09K70iACV40,GSV40..NAP..LE200602-200903

MARK 48530-06330

main48530-09K90iACV40,GSV40..NAP..SE200602-200903

MARK 48530-06410

main48530-09M20iACV40,GSV40..NAP..XLE200602-200903

MARK 48530-06470

main48530-80527iASV40,GSV40..NAP..LE200903-201109

MARK 48530-06540

main48530-80528iASV40,GSV40..NAP..XLE200903-201109

MARK 48530-06550

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-09660iACV40,GSV40..NAP..LE200602-200903

MARK 48540-06330

main48540-09680iACV40,GSV40..NAP..SE200602-200903

MARK 48540-06410

main48540-09760iACV40,GSV40..NAP..XLE200602-200903

MARK 48540-06470

main48540-80010iASV40,GSV40..NAP..LE200903-201109

MARK 48540-06540

main48540-80011iASV40,GSV40..NAP..XLE200903-201109

MARK 48540-06550

48703CNUT(FOR REAR SUSPENSION ARM)

main90080-17223×4iACV40,GSV40..NAP200602-200903

48703EBOLT(FOR REAR SUSPENSION ARM)

main90080-11674×2iACV40,GSV40..NAP200602-200903

*14-1.50PX76-36

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-06040iACV40,GSV40..NAP..SE200602-200808

main48710-06110iACV40,GSV40..NAP..(LE,XLE)200602-200808

main48710-06120iACV40,GSV40..NAP..SE200808-200903

main48710-06130iASV40,GSV40..NAP..(LE,XLE)200903-201109

(L)

main48710-33100iASV40,GSV40..NAP..(LE,XLE)200903-201109

(J)

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-06040iACV40,GSV40..NAP..SE200602-200808

main48710-06110iACV40,GSV40..NAP..(LE,XLE)200602-200808

main48710-06120iASV40,GSV40..NAP..SE200903-201109

main48710-06130iACV40,GSV40..NAP..(LE,XLE)200808-200903

main48710-33100iASV40,GSV40..NAP..(LE,XLE)200903-201109

(J)

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-07020iACV40,GSV40..NAP200602-200807

main48730-07040iACV40,GSV40..NAP200807-200903

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-07010iACV40,GSV40..NAP200602-200807

main48740-07020iASV40,GSV40..NAP200903-201109

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90178-08007×6iACV40,GSV40..NAP200602-200903

(J)

main90178-A0002×6iASV40,GSV40..NAP200903-201109

(L)

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-06100iASV40,GSV40..NAP..SE200903-201109

main48750-06180iASV40,GSV40..NAP..(LE,XLE)200903-201109

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90080-17217iACV40,GSV40..NAP200602-200903

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iACV40,GSV40..NAP200602-200903

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-06011iACV40,GSV40..NAP200602-200903

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-06011iASV40,GSV40..NAP200903-201109

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-06100iACV40,GSV40..NAP..SE200602-200903

main48760-06180iACV40,GSV40..NAP..(LE,XLE)200602-200903

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90080-17217iACV40,GSV40..NAP200602-200903

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iACV40,GSV40..NAP200602-200903

48780AROD ASSY, STRUT, REAR

main48780-06020×2iACV40,GSV40..NAP..SE200602-200807

main48780-06030×2iASV40,GSV40..NAP..SE200903-201109

main48780-07010×2iACV40,GSV40..NAP..(LE,XLE)200602-200807

main48780-07020×2iACV40,GSV40..NAP..(LE,XLE)200807-200903

48812BAR, STABILIZER, REAR

main48812-06080iACV40,GSV40..NAP..(LE,XLE)200602-200903

main48812-06090iACV40,GSV40..NAP..SE200602-200903

48818BUSH, STABILIZER, REAR

main48818-06190×2iACV40,GSV40..NAP200602-200708

main48818-12170×2iACV40,GSV40..NAP200708-200903

48830ANUT(FOR REAR STABILIZER LINK)

main90080-17227×4iACV40,GSV40..NAP200602-200903

48830DLINK ASSY, REAR STABILIZER, RH

main48830-06060iACV40,GSV40..NAP200602-200903

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-06110×2iACV40,GSV40..NAP200602-200903

48840ALINK ASSY, REAR STABILIZER, LH

main48830-06060iACV40,GSV40..NAP200602-200903

9008011133

main90080-11133

9008011672

main90080-11672

90119A0120

main90119-A0120

90178A0011

main90178-A0011

90179A0004

main90179-A0004

41 parts on this diagram · 1 diagram in section
