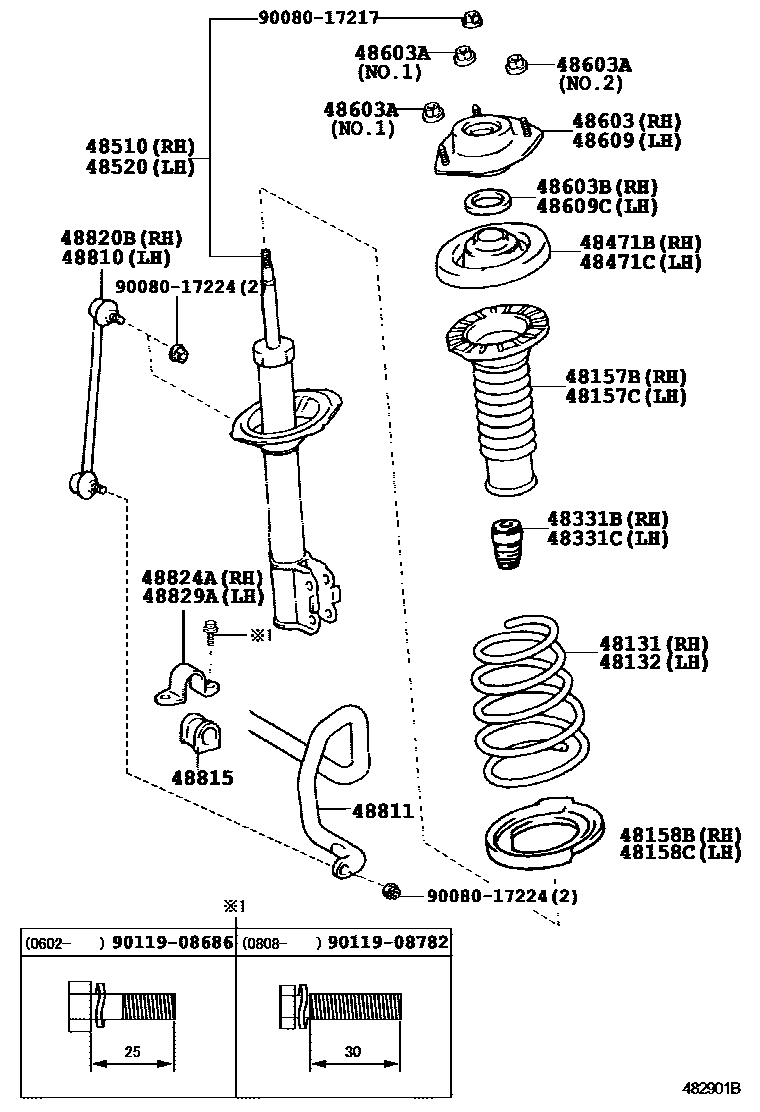

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-06870iACV40..NAP..SE200602-200712

main48131-06871iASV40..NAP..SE200903-201109

main48131-06880iGSV40..NAP..(LE,XLE)200602-200712

main48131-06881iGSV40..NAP..(LE,XLE)200801-200903

main48131-06890iGSV40..NAP..SE200602-200712

main48131-06891iGSV40..NAP..SE200903-201109

main48131-06B90iACV40..NAP..5F..LE200602-200712

main48131-06B91iACV40..NAP..5F..LE200801-200903

main48131-06A00supersedes 48131-06861iACV40..NAP..5FC..(LE,XLE)200602-200712

MEXICO SPEC

main48131-06A01supersedes 48131-06861iACV40..NAP..5FC..(LE,XLE)200801-200903

MEXICO SPEC

main48131-06A10iGSV40..NAP..XLE200602-200712

MEXICO SPEC

main48131-06A11iGSV40..NAP..XLE200801-200903

MEXICO SPEC

48132SPRING, FRONT COIL, LH

main48131-06870iACV40..NAP..SE200602-200712

main48131-06871iASV40..NAP..SE200903-201109

main48131-06880iGSV40..NAP..(LE,XLE)200602-200712

main48131-06881iGSV40..NAP..(LE,XLE)200801-200903

main48131-06890iGSV40..NAP..SE200602-200712

main48131-06891iGSV40..NAP..SE200903-201109

main48131-06B90iACV40..NAP..5F..LE200602-200712

main48131-06B91iACV40..NAP..5F..LE200801-200903

main48131-06A00supersedes 48131-06861iACV40..NAP..5FC..(LE,XLE)200602-200712

MEXICO SPEC

main48131-06A01supersedes 48131-06861iACV40..NAP..5FC..(LE,XLE)200801-200903

MEXICO SPEC

main48131-06A10iGSV40..NAP..XLE200602-200712

MEXICO SPEC

main48131-06A11iGSV40..NAP..XLE200903-201109

MEXICO SPEC

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06082iACV40,GSV40..NAP200602-200903

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06082iACV40,GSV40..NAP200602-200903

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33031iASV40,GSV40..NAP200903-201109

main48158-AA030iACV40,GSV40..NAP200802-200806

(L)

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33031iACV40,GSV40..NAP200802-200903

(J)

main48158-AA030iACV40,GSV40..NAP200602-200802

48331BBUMPER, FRONT SPRING, RH

main48331-06040iASV40,GSV40..NAP200903-201109

48331CBUMPER, FRONT SPRING, LH

main48331-06040iASV40,GSV40..NAP200903-201109

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-AA010iACV40,GSV40..NAP200602-200903

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-AA010iASV40,GSV40..NAP200903-201109

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09M90iACV40..NAP..(LE,XLE)200602-200903

main48510-09N10iACV40..NAP..SE200602-200903

main48510-09N20iGSV40..NAP..(LE,XLE)200602-200903

main48510-09N40iGSV40..NAP..SE200602-200903

main48510-80485iGSV40..NAP..(LE,XLE)200903-201109

MARK 48510-06650

main48510-80486iASV40..NAP..(LE,XLE)200903-201109

MARK 48510-06640

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09F40iACV40..NAP..(LE,XLE)200602-200903

main48520-09F60iACV40..NAP..SE200602-200903

main48520-09F70iGSV40..NAP..(LE,XLE)200602-200903

main48520-09F90iGSV40..NAP..SE200903-201109

main48520-80225iGSV40..NAP..(LE,XLE)200903-201109

MARK 48520-06650

main48520-80226iASV40..NAP..(LE,XLE)200903-201109

MARK 48520-06640

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06130iACV40,GSV40..NAP..SE200602-200903

main48609-06190iGSV40..NAP..(LE,XLE)200903-201109

main48609-06200iASV40..NAP..(LE,XLE)200903-201109

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10005×4iASV40,GSV40..NAP200903-201109

NO.1

main90178-A0004×2iASV40,GSV40..NAP200903-201109

NO.2

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90903-63014iACV40,GSV40..NAP200602-200903

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06130iASV40,GSV40..NAP..SE200903-201109

main48609-06190iGSV40..NAP..(LE,XLE)200602-200903

main48609-06200iACV40..NAP..(LE,XLE)200602-200903

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90903-63014iACV40,GSV40..NAP200602-200903

48810LINK ASSY, FRONT STABILIZER, LH

main48820-06050iACV40,GSV40..NAP200602-200903

48811BAR, STABILIZER, FRONT

main48811-06050iACV40,GSV40..NAP..(LE,XLE)200602-200903

main48811-06150iACV40,GSV40..NAP..SE200602-200903

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06090×2iACV40,GSV40..NAP..(LE,XLE)200602-200903

main48815-06140×2iACV40,GSV40..NAP..SE200602-200903

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06050iACV40,GSV40..NAP200602-200903

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06020iACV40,GSV40..NAP200602-200903

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06020iACV40,GSV40..NAP200602-200903

9008017217

main90080-17217

9008017224

main90080-17224

9011908686

main90119-08686

9011908782

main90119-08782

27 parts on this diagram · 1 diagram in section
