43211KNUCKLE, STEERING, RH

main43211-AA010i200602-200903

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013i200903-201109

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014i200602-200903

OD=15,TYPE C:REFER ILLUST.

main90105-17015i200602-200903

OD=14,TYPE D:REFER ILLUST.

main90105-A0052×2i200903-201109

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-A0027×2i200903-201109

43212KNUCKLE, STEERING, LH

main43212-AA010i200602-200903

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013i200602-200903

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014i200903-201109

OD=15,TYPE C:REFER ILLUST.

main90105-17015i200602-200903

OD=14,TYPE D:REFER ILLUST.

main90105-A0052×2i200602-200903

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-A0027×2i200602-200903

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09330i200903-201109

sub43330-09810

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90080-17214i200602-200903

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-09040i200602-200903

sub43340-09170

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90080-17214i200602-200903

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-06150i200602-200903

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-A0019×4i200602-200903

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90080-11644i200602-200903

main90119-A0259i201011-201109

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-06150i200602-200903

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90080-11644i200602-200903

main90119-A0259i201011-201109

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90080-17223×2i200602-200903

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-06010×2i200602-200903

(L)

main48657-28010×2i200602-200903

(J)

9008010271

main90080-10271

9008010376

main90080-10376

9538103225

main95381-03225

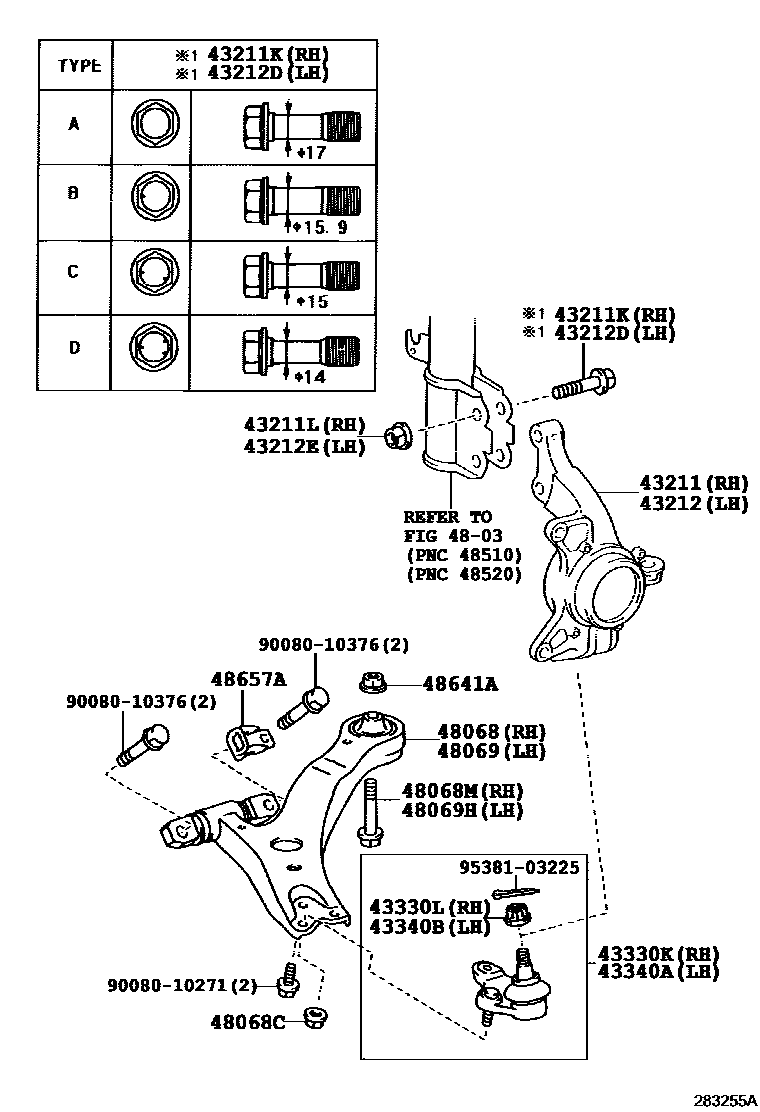

FRONT AXLE ARM & STEERING KNUCKLE
