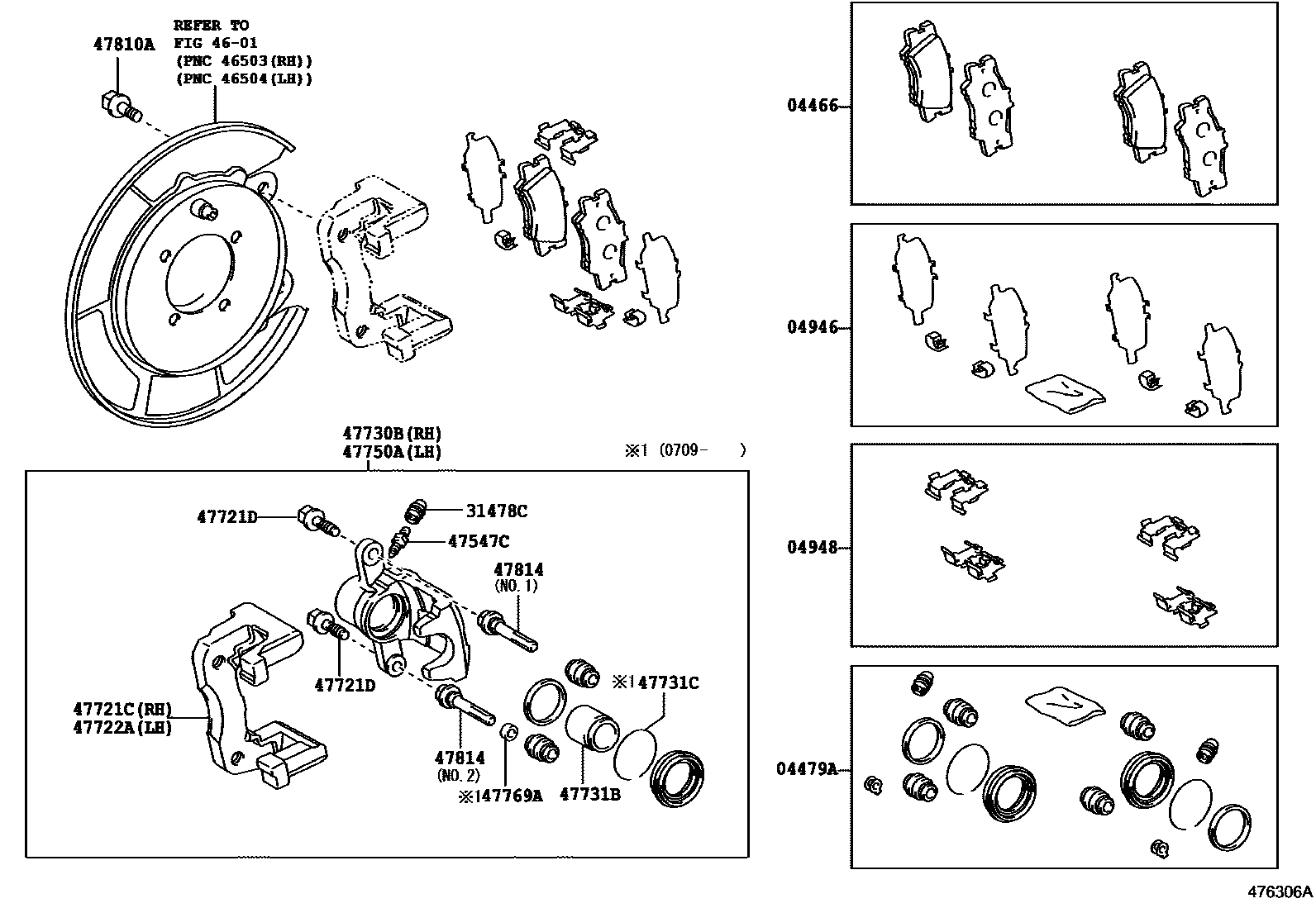

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-06060iACV40,GSV40..NAP200602-200707

MARK NBK D6234

main04466-06090iACV40,GSV40..NAP200707-201109

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06250iACV40,GSV40..NAP200602-200709

main04479-06280iASV40,GSV40..NAP200709-201109

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-06070iACV40,GSV40..NAP200602-201109

04948FITTING KIT, DISC BRAKE, REAR

main04948-06030iACV40,GSV40..NAP200602-200709

main04948-06031iACV40,GSV40..NAP200709-201109

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0R010iASV40,GSV40..NAP200903-201108

main31478-50020iACV40,GSV40..NAP200602-200903

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12130iACV40,GSV40..NAP200709-201109

main47547-20010iACV40,GSV40..NAP200602-200709

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-06050iACV40,GSV40..NAP200602-200709

main47821-06052iACV40,GSV40..NAP200709-201012

main47821-06054iASV40,GSV40..NAP201012-201109

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA604iACV40,GSV40..NAP200602-201109

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-06050iACV40,GSV40..NAP200602-200709

main47822-06052iASV40,GSV40..NAP200709-201012

main47822-06054iASV40,GSV40..NAP201012-201109

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-06050iACV40,GSV40..NAP200602-200709

main47830-06052iACV40,GSV40..NAP200709-201012

main47830-06053iASV40,GSV40..NAP201012-201109

47731BPISTON, REAR DISC BRAKE

main47831-06050iACV40,GSV40..NAP200602-201109

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90016-AU502iACV40,GSV40..NAP200709-201109

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-06050iACV40,GSV40..NAP200602-200709

main47850-06052iACV40,GSV40..NAP200709-201012

main47850-06053iASV40,GSV40..NAP201012-201109

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-06052iASV40,GSV40..NAP200709-201012

main47879-06120iASV40,GSV40..NAP201012-201109

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90080-11440iACV40,GSV40..NAP200602-201109

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06050iACV40,GSV40..NAP200709-201012

NO.1

main47814-06050iACV40,GSV40..NAP200602-200709

NO.1 & NO.2

main47814-06052iASV40,GSV40..NAP200709-201012

NO.2

main47814-06120iASV40,GSV40..NAP201012-201109

NO.1

main47815-06120iASV40,GSV40..NAP201012-201109

NO.2

17 parts on this diagram · 1 diagram in section
