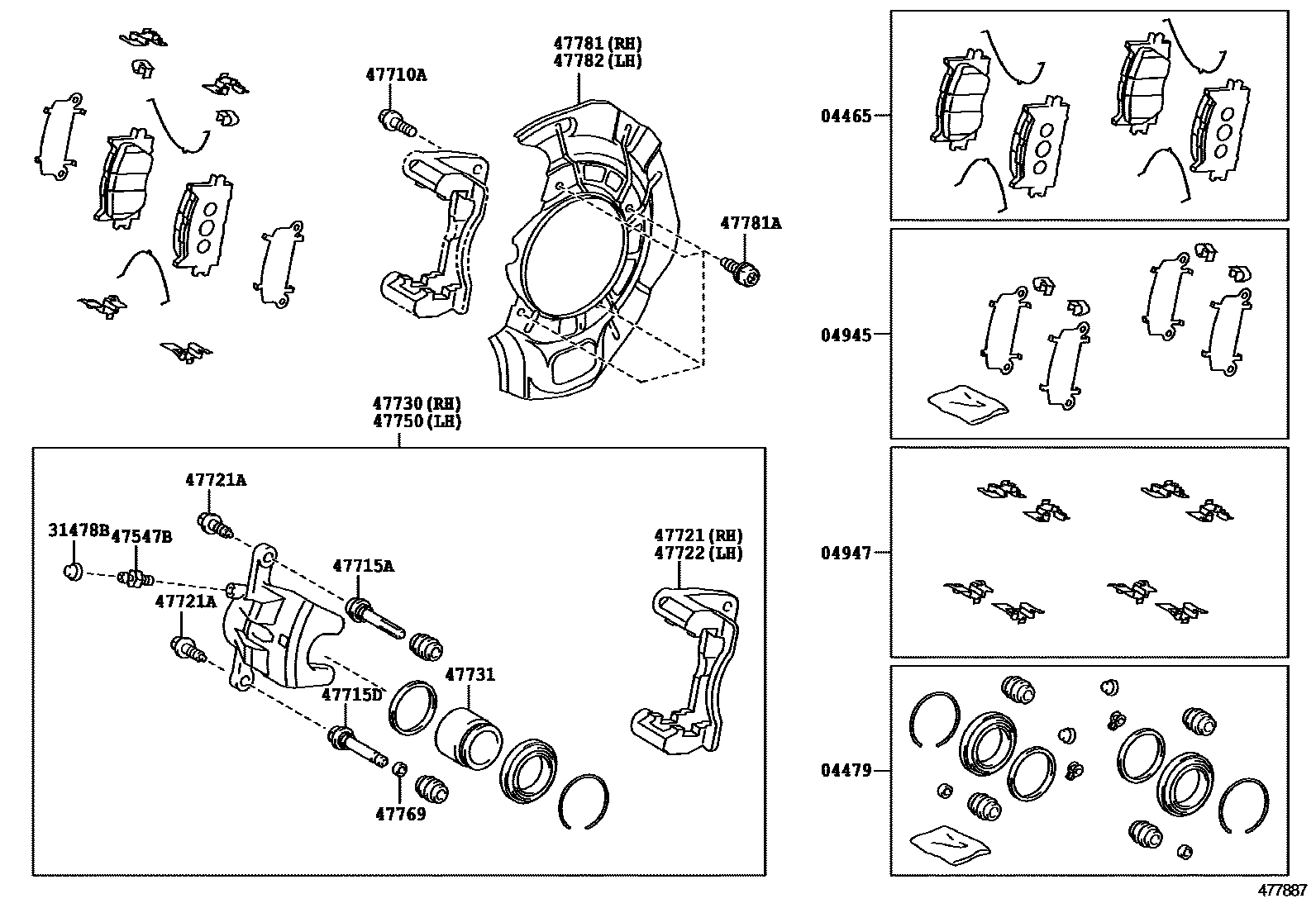

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK NBK PN562H
MARK NBK D6911H
04479CYLINDER KIT, DISC BRAKE, FRONT
04945SHIM KIT, ANTI SQUEAL, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX29.5-23
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731PISTON, FRONT DISC BRAKE
47750CYLINDER ASSY, DISC BRAKE, LH
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47781COVER, DISC BRAKE DUST, FRONT RH
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782COVER, DISC BRAKE DUST, FRONT LH
19 parts on this diagram · 1 diagram in section
