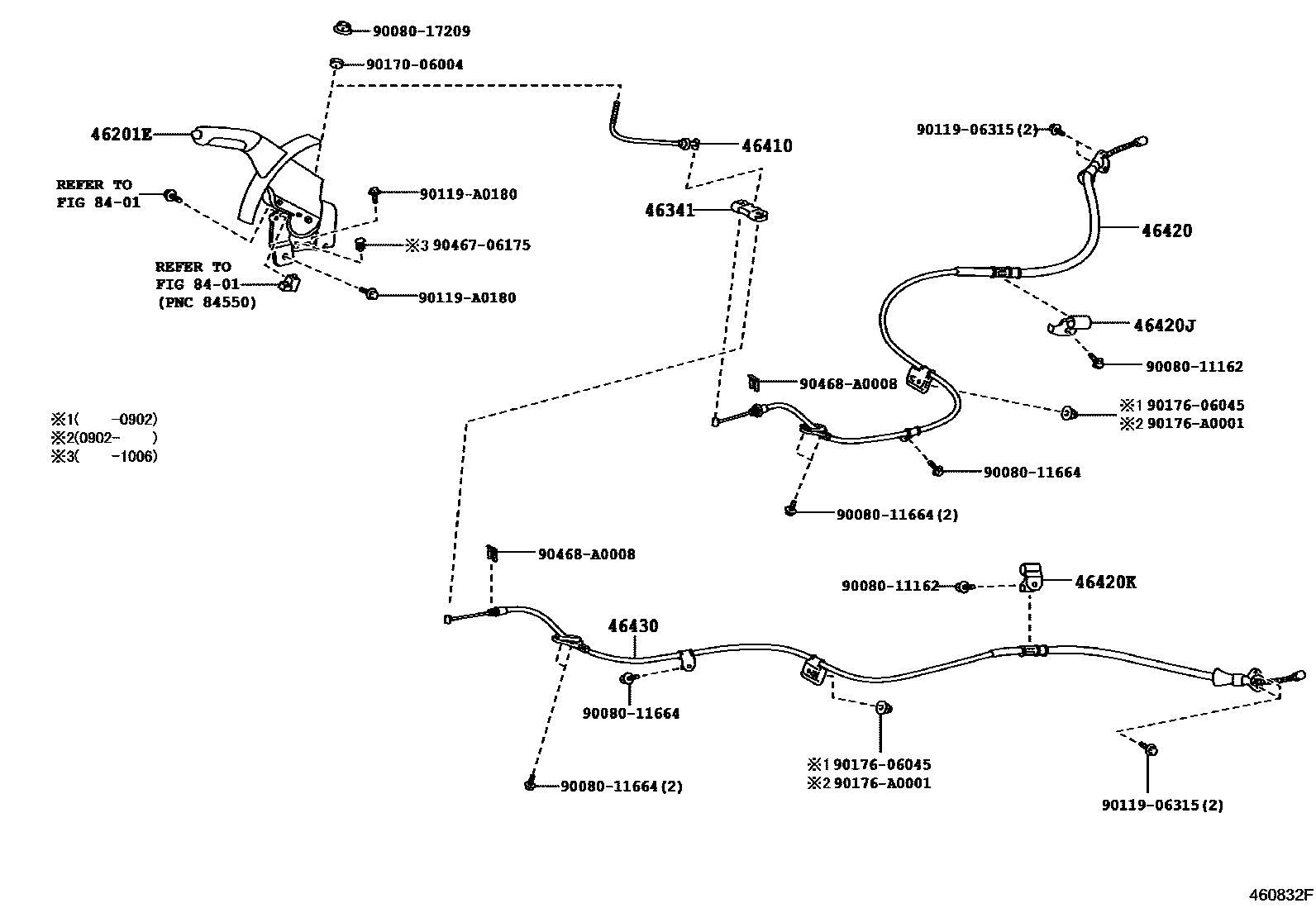

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-33200-B0iACV40..NAP..5F..SE200602-200903

DK.GRAY,TRIM1#

main46201-33210-B0iASV40..NAP..6F..LE200904-201109

MD.GRAY,TRIM1#

main46201-33210-E0iASV40..NAP..6F..LE200904-201109

ASH BROWN,TRIM4#

46341EQUALIZER, PARKING BRAKE

main46341-33030iASV40,GSV40..NAP200903-201109

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-06070iASV40,GSV40..NAP..6FC200903-201109

(L)

main46410-33150iACV40..NAP..5F200602-200903

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-06090iASV40..NAP..6F200904-201109

main46420-06160iACV40,GSV40..NAP..ATM200602-200903

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01C61iACV40,GSV40..NAP200602-200903

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01C62iASV40,GSV40..NAP200903-201109

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-06090iACV40..NAP..5F200602-200903

main46430-06160iACV40,GSV40..NAP..ATM200602-200903

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011162

main90080-11162

9008011664

main90080-11664

9008017209

main90080-17209

9011906315

main90119-06315

90119A0180

main90119-A0180

9017006004

main90170-06004

9017606045

main90176-06045

90176A0001

main90176-A0001

9046706175

main90467-06175

90468A0008

main90468-A0008

18 parts on this diagram · 3 diagrams in section
