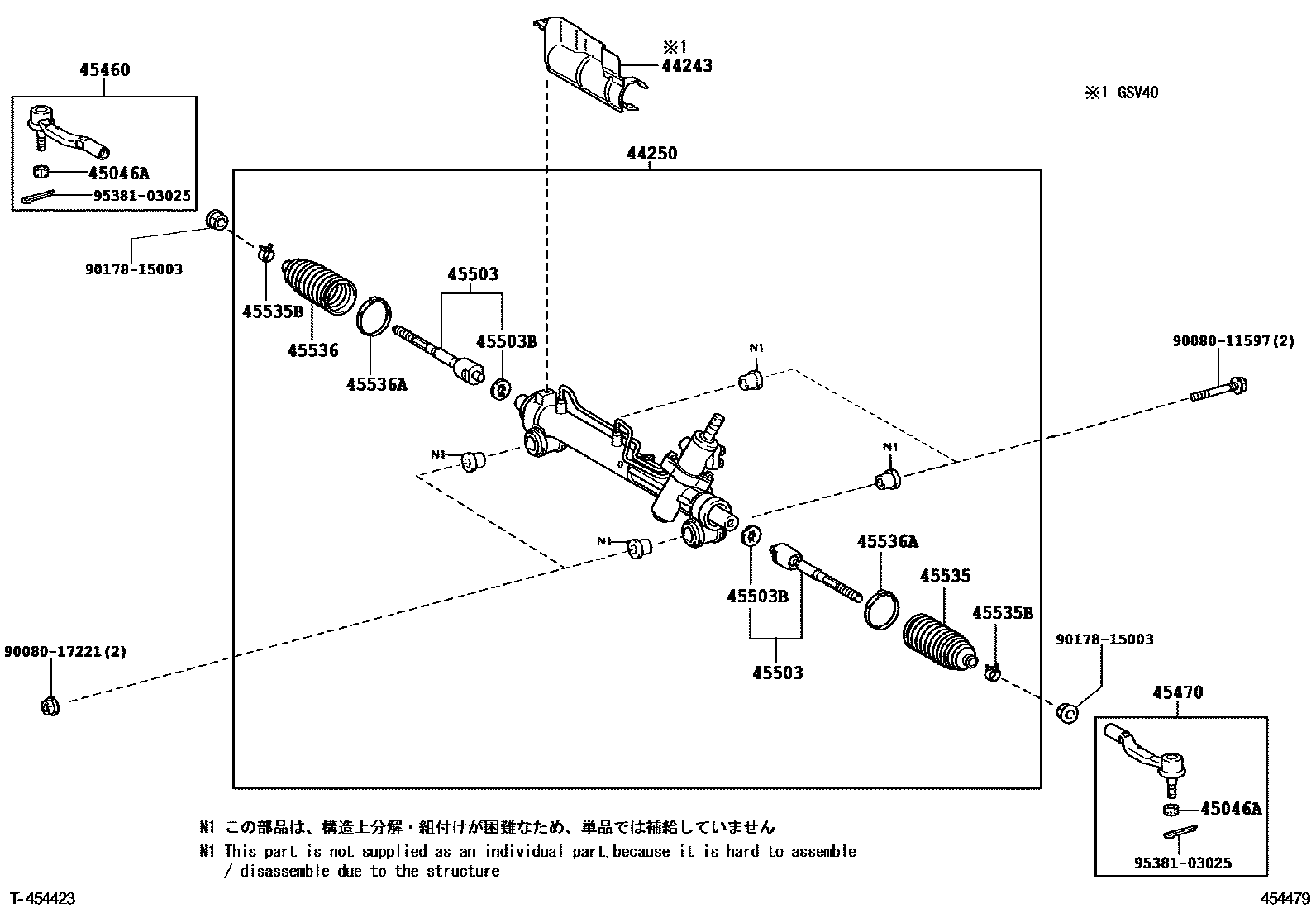

FRONT STEERING GEAR & LINK

0001 1 0002 1

44243INSULATOR, POWER STEERING RACK HOUSING HEAT

main44243-33011iGSV40..NAP200602-200903

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06330iACV40,GSV40..NAP..(LE,XLE)200602-200903

main44250-06340iACV40,GSV40..NAP..SE200602-200903

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220×2iACV40,GSV40..NAP200602-200903

45460ROD ASSY, TIE, RH

main45460-09110iACV40,GSV40..NAP200602-200903

45470ROD ASSY, TIE, LH

main45470-09080iACV40,GSV40..NAP200602-200903

45503END SUB-ASSY, STEERING RACK

main45503-09420×2iACV40,GSV40..NAP200602-200903

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009×2iACV40,GSV40..NAP200602-200903

OD=35.2

45535BOOT, STEERING RACK, NO.1

main45535-06060iACV40,GSV40..NAP200602-200903

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46153×2iACV40,GSV40..NAP200602-200903

45536BOOT, STEERING RACK, NO.2

main45535-06060iACV40,GSV40..NAP200602-200903

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90080-46271×2iACV40,GSV40..NAP200602-200903

9008011597

main90080-11597

9008017221

main90080-17221

9017815003

main90178-15003

9538103025

main95381-03025

15 parts on this diagram · 2 diagrams in section
