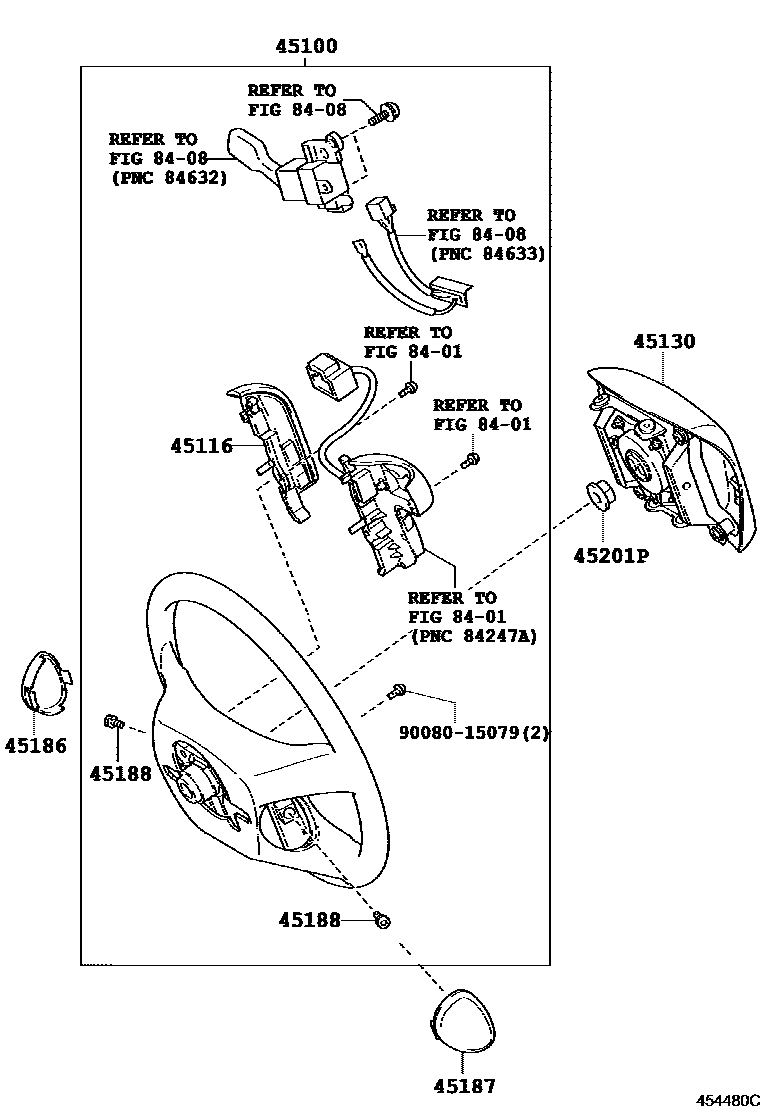

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,LEATHER,MD.GRAY,TRIM1#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,MD.GRAY,TRIM1#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,AUDIO-AVN,8SPEAKER,PREMIUM SYSTEM,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,AUDIO-CD,6SPEAKER,BLUETOOTH,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,MD.GRAY,TRIM1#; 4-SPOKE,URETHANE,AUDIO-CD,6SPEAKER,BLUETOOTH,MD.GRAY,TRIM1#
4-SPOKE,URETHANE,AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,ASH BROWN,TRIM4#; 4-SPOKE,URETHANE,AUDIO-CD,6SPEAKER,BLUETOOTH,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,MD.GRAY,TRIM1#; 4-SPOKE,URETHANE,AUDIO-CD,6SPEAKER,BLUETOOTH,MD.GRAY,TRIM1#
4-SPOKE,URETHANE,AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,ASH BROWN,TRIM4#; 4-SPOKE,URETHANE,AUDIO-CD,6SPEAKER,BLUETOOTH,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM,DK.GRAY,TRIM1#
45116ORNAMENT, STEERING WHEEL, NO.1
45130BUTTON ASSY, HORN
MD.GRAY,TRIM1#
ASH BROWN,TRIM4#
MD.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
45186COVER, STEERING WHEEL, LOWER NO.2
MD.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
45187COVER, STEERING WHEEL, LOWER NO.3
MD.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18.5
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
9008015079
main90080-15079
10 parts on this diagram · 2 diagrams in section
